650 Vaccum UV Coating Machine for Paper SGUV-660
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
80gsm Thin Paper UV Coating Machine for UV Sheets SGUV-660
-
SGUV-660A Water Based Varnish UV Coating Machine India
-
SGUV-660 Vaccum UV Coating Machine for Paper
-
Automatic Full UV Spot Coater Lamination Varnish Machine SGJ-620
-
650mm UV Liquid Coating Machine With Air Knife SGUV-660
-
SGUV-760A UV Coating Machine for Photo Paper
Product Description
Product Overview

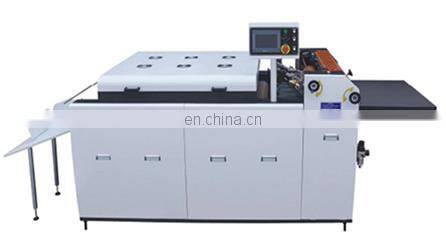

SGUV-660 manual digital uv liquid coating machine
·SGUV-660 small size fully automatic UV coating machine is a newly development and designed machine in our company. Equip with the features of easily operation and simply maintenance, together with excellent performance, which applicable to post-press small size papers'UV coating and water-base oil coating.
FEATURES AT A GLANCE
2. Digital Online
3. Easy to operate
4. With CE certificate
5. Both UV & IR lamp
6. Intelligently Computerized
7. Customized
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Model | SGUV-660 |
2 | Max paper size | 620mm |
4 | Min paper size | 150*210mm |
5 | Paper weight | 80-500g/m2 |
6 | Laminating speed | 0-40m/min |
7 | UV lamp | 1pcs*6.5kw |
8 | IR lamp | 3pcs*1.2kw |
9 | Total weight | 850kg |
10 | Overall dimension | 3250*1180*1230mm |
Product Configuration
·This UV Coating Machine is equipped with UV curing and IR drying device.
·Digital frequency converter speed control. And independent conveyor driven.
·Larger diameter coating rollers makes the coating effect smoother & brighter.
·Full coverage splash guards to protect from splashing.
·Used vacuum airbed for maximum hold down the paper sheets on conveying.
·UV magnetic leakage transformer with parallel capacitor design can better endure the voltage fluctuating impact.
·Two level UV lamp power setting.
·Easy access UV lamp chamber and replacement.
·High velocity blower fan for cooling and exhaust.
·Safety locker on all machine doors and covers.
·Full coverage protection against UV radiation around the UV lamp chamber.
·Lower temperature control on the UV lamp chamber surface.
·Emergency stop switches at arms length throughout the machine .
·Interlocks design prevents against misoperation.
·Digital frequency converter speed control. And independent conveyor driven.
·Larger diameter coating rollers makes the coating effect smoother & brighter.
·Full coverage splash guards to protect from splashing.
·Used vacuum airbed for maximum hold down the paper sheets on conveying.
·UV magnetic leakage transformer with parallel capacitor design can better endure the voltage fluctuating impact.
·Two level UV lamp power setting.
·Easy access UV lamp chamber and replacement.
·High velocity blower fan for cooling and exhaust.
·Safety locker on all machine doors and covers.
·Full coverage protection against UV radiation around the UV lamp chamber.
·Lower temperature control on the UV lamp chamber surface.
·Emergency stop switches at arms length throughout the machine .
·Interlocks design prevents against misoperation.
Company Profile
Why Choose Us?
2. Having ISO 9001-Certified Factory
3. Strong R&D capability
4. High Quality Guaranteed
5. First Class Service And Best Prices
New Star Machinery international Limited And glory packing material produce kinds of laminating machine and uv coating machine and BOPP Thermal film metallizde PET And 3D , Soft touch film . With the development and innovation of post-press equipments, our company has carried on deep research and development to post-press equipments combining the features of printing & packing industry home and abroad. The products occupy sizable market at home and also have been expanded to all over the world.
Exhibition
FAQ
Q1: What it is advantage of your products?
A1: Easily operation and simply maintenance. Also coat effective in market.
Q2: How long for the guarantee?
A2: 12 month free warranty.
Q3: The engineer is available for overseas services?
A3: Yes, we supply engineer who is good at communication and understand English.
Q4: Why your price is nice than other supplier. (May you was received our machine's quotation but you still can't decided make order now or latter, hope there I not yet miss you.)
A4: We are manufacture and our engineer and worker is local. Furthermore. we are more forcus on developing products not advertisement only.
Q5: What is the brands for the electrical system?
A5: We are using Schneider PLC inverter, Omron and other international brand's parts that ensure the machine could run smoothly.
Q6: Which level of your products in market?
A6: High and mid grade quality with nice price.
Q7: Where are you?
A7: We are located in Machine's city Wenzhou, Zhejiang,China, welcome to visit us while you visit China.
Q8: Will you supply for OEM or ODM orders?
A8: Yes, we are, if you have any advise please let us know that we could make unique machine for you only.
A1: Easily operation and simply maintenance. Also coat effective in market.
Q2: How long for the guarantee?
A2: 12 month free warranty.
Q3: The engineer is available for overseas services?
A3: Yes, we supply engineer who is good at communication and understand English.
Q4: Why your price is nice than other supplier. (May you was received our machine's quotation but you still can't decided make order now or latter, hope there I not yet miss you.)
A4: We are manufacture and our engineer and worker is local. Furthermore. we are more forcus on developing products not advertisement only.
Q5: What is the brands for the electrical system?
A5: We are using Schneider PLC inverter, Omron and other international brand's parts that ensure the machine could run smoothly.
Q6: Which level of your products in market?
A6: High and mid grade quality with nice price.
Q7: Where are you?
A7: We are located in Machine's city Wenzhou, Zhejiang,China, welcome to visit us while you visit China.
Q8: Will you supply for OEM or ODM orders?
A8: Yes, we are, if you have any advise please let us know that we could make unique machine for you only.
