Product Description
Product Overview

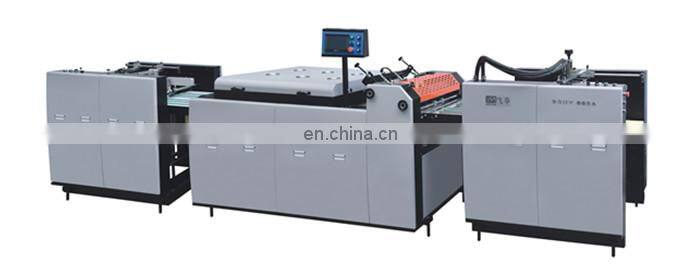

SGUV-660A automatic uv coating machine
·SGUV-660A UV automatic coating machine has experienced technical upgrades based on the origina three-roller coating machine.With frequency coversion control adopted for metering roll,oiling volumes for papers of different thickness can be controlled through different linear veldt,straightforward and easy to operate,and it achieves fundermental changes in the surface fineness and smoothness of coating products without orange peel veins ba and large,thus optimizin polishing products.
FEATURES AT A GLANCE
2. Using UV oil & water oil
3. Easy to operate
4. With CE certificate
5. Both UV & IR lamp

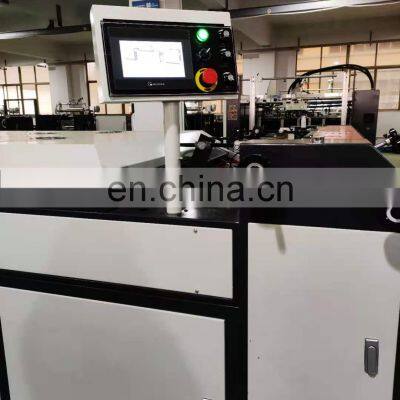

6. Intelligently Computerized
7. Customized
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Model | SGUV-660A |
2 | Max paper size | 620*760mm |
4 | Min paper size | 270*270mm |
5 | Paper weight | 80-500g/m2 |
6 | Laminating speed | 0-40m/min |
7 | UV lamp | 1pcs*6.5kw |
8 | IR lamp | 3pcs*1.2kw |
9 | Total weight | 1500kg |
10 | Overall dimension | 6000*1450*1600mm |
Product Configuration
·With automatic feeder and the stacker.
·This UV Coating Machine is equipped with UV curing and IR drying device.
·Digital frequency converter speed control. And independent conveyor driven.

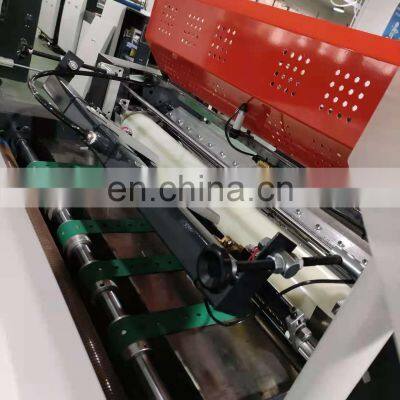

·Larger diameter coating rollers makes the coating effect smoother & brighter.
·Full coverage splash guards to protect from splashing.

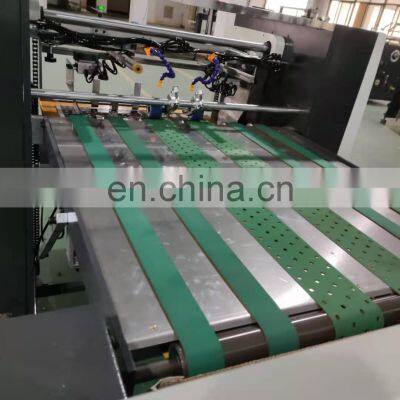

·Used vacuum airbed for maximum hold down the paper sheets on conveying.
·UV magnetic leakage transformer with parallel capacitor design can better endure the voltage fluctuating impact.
·Two level UV lamp power setting.
·Easy access UV lamp chamber and replacement.
·High velocity blower fan for cooling and exhaust.
·Safety locker on all machine doors and covers.
·Full coverage protection against UV radiation around the UV lamp chamber.
·Lower temperature control on the UV lamp chamber surface.
·Emergency stop switches at arms length throughout the machine .
·Interlocks design prevents against misoperation.
·This UV Coating Machine is equipped with UV curing and IR drying device.
·Digital frequency converter speed control. And independent conveyor driven.
·Larger diameter coating rollers makes the coating effect smoother & brighter.
·Full coverage splash guards to protect from splashing.
·Used vacuum airbed for maximum hold down the paper sheets on conveying.
·UV magnetic leakage transformer with parallel capacitor design can better endure the voltage fluctuating impact.
·Two level UV lamp power setting.
·Easy access UV lamp chamber and replacement.
·High velocity blower fan for cooling and exhaust.
·Safety locker on all machine doors and covers.
·Full coverage protection against UV radiation around the UV lamp chamber.
·Lower temperature control on the UV lamp chamber surface.
·Emergency stop switches at arms length throughout the machine .
·Interlocks design prevents against misoperation.
