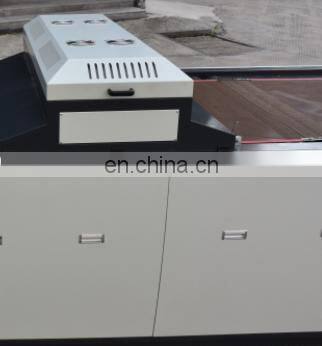

Automatic Double Head Anilox Roller UV Coating Machine SGUV-1200A

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Product Overview

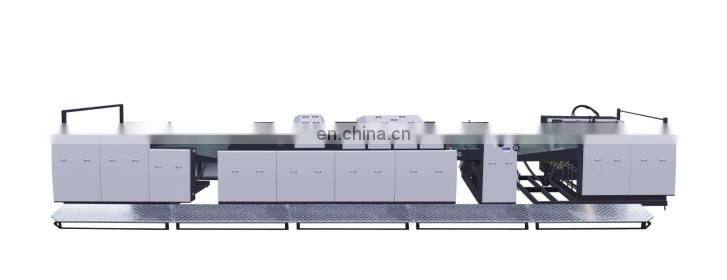

SGUV-1040A/1200A Fully Automatic High-speed Coating Machine

SGUV-800/1200 Automatic double head anilox roller uv coating machine is the first domestic product developed by Feihua, which subverts the traditional rubber roller coating. The latest anilox coating process: completely solve the phenomenon of orange peel and grain!

FEATURES AT A GLANCE

•Faster speed 80m/min •UV curing & IR drying

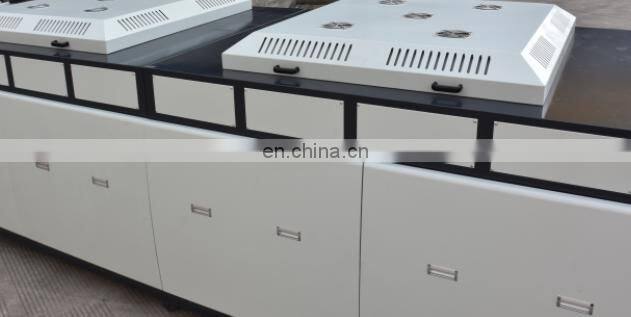

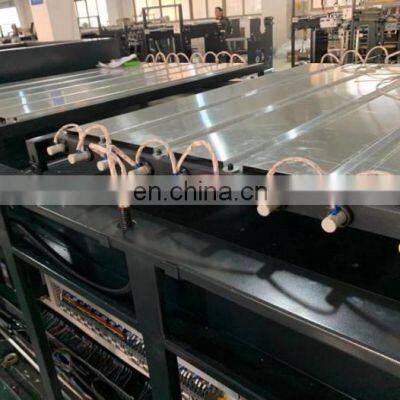

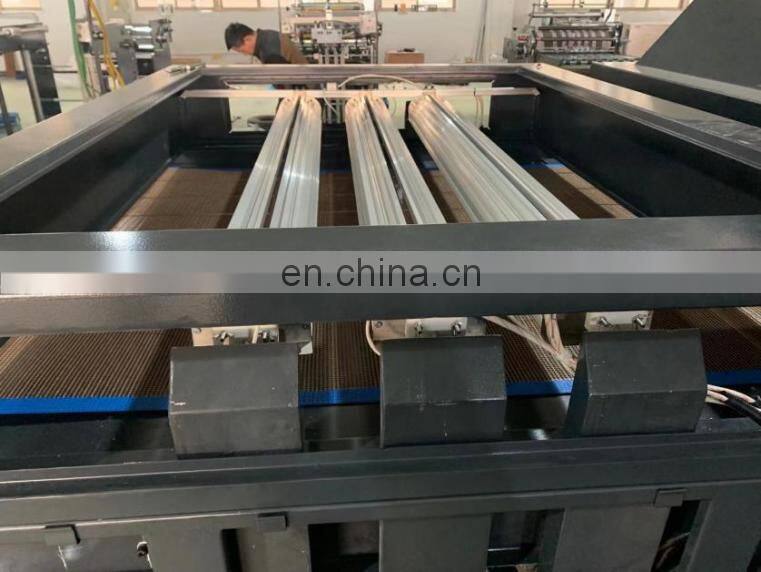

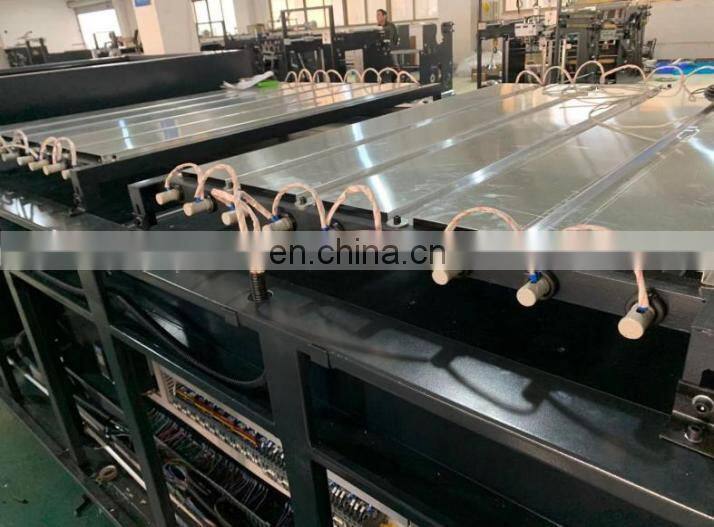

•3 uv lamps &18 IR lamps •Use uv oil ,water oil, soft touch oil..

•Larger rubber roller 165mm diameter •Deal with thin paper to 80gsm •Customized

PRODUCT SPECIFICATIONS

No	Item	SGUV-1040A	SGUV-1200A	SGUV-1200A-L
1	Max. Sheet Size	1040*1000mm	1200*1000mm	1200*1450mm
2	Min. Sheet Size	270*270mm	300*300mm	300*300mm
3	Sheet Weight	80~450g/m2	80~450g/m2	80~500g/m2
4	Speed	0~80m/min	0~80m/min	0~80m/min
5	Power	45Kw	50Kw	50Kw
6	UV Lamp	3pcsx8Kw	3pcsx9.75Kw	3pcsx9.75Kw
7	IR Lamp	18pcsx1.5Kw	18pcsx1.5Kw	18pcsx1.5Kw
8	Paper feed height	1100	1100	1100
9	Paper stack height	1050	1050	1050
10	Weight	6000kg	6500kg	6700kg
11	Dimension	10000x1800x2000mm	11000x2000x2000mm	13000x2200x2000mm

PRODUCT CONFIGURATION

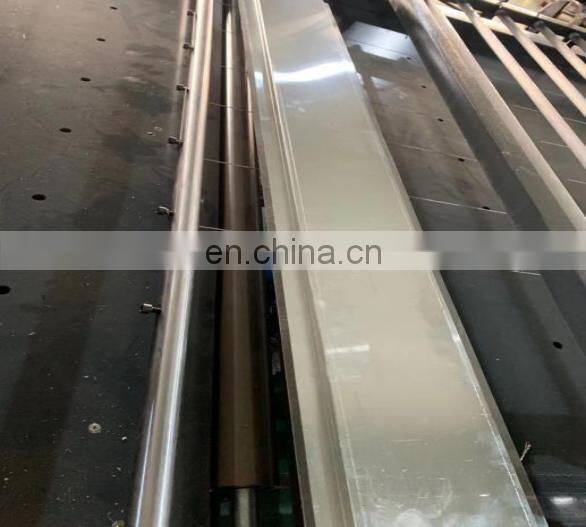

1：Large diameter anilox roller direct coating, no need to transfer rubber roller, can ensure the thickness of the oil on the paper, even without orange peel 2：The closed scraper is used to circulate the oil inside the oil circuit without outflow of oil, which can effectively reduce oil loss and volatilization. 3：The upper and lower rollers are driven by independent motors, without mechanical gaps, which can ensure no streaks in coating. 4：The pressing of the rollers is controlled by servo motors, the thickness of the gap is directly set on the touch screen, and the gap is controlled by the servo motor, which makes the control more accurate and the operation easier! 5：High level of intelligence, one-key start acceleration, more convenient and efficient than traditional segmented control! 6：The shaft head is 55mm large, which is more stable and firmer than the traditional 35mm under high speed, without deformation, and good coating effect!

Company Profile

Why Choose Us?

1. With 12 years' Manufacturing Experience
2. Having ISO 9001-Certified Factory
3. Strong R&D capability
4. High Quality Guaranteed
5. First Class Service And Best Prices

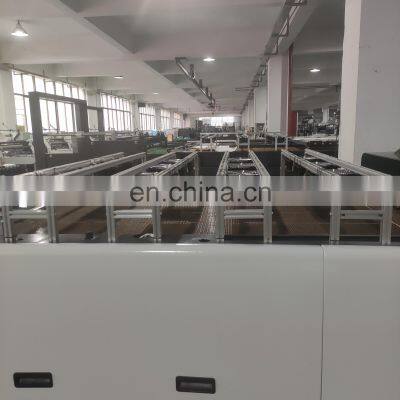

Whenzhou Feihua Printing Machinery Co.,Ltd founded in 2010. We are an intelligent mechanical equipment manufacturer committed to the research and development of paper surface treatment technology, personalized customization, production, sales and service. Located in coastal city Zhejiang. There are more than 10000 square meters of processing workshops, with integrated production and a complete and scientific quality management system. The factory has a professional management and technical team, first-class manufacturing process, and all manufacturing processes are implemented in accordance with high standards. Continuous innovation, introduction of international cash production equipment, and long-term close cooperation with scientific research institutions to actively develop new products.

Laminating Machine

Coating Machine

Folder gluer

Flute Laminating Machine

Rigid Box Machine

Paper Tube Machine

Vertical Laminating Machine

Die Cutting Machine

Hot Stamping Machine

FAQ

Q1: What it is advantage of your products?
A1: Easily operation and simply maintenance. Also coat effective in market.

Q2: How long for the guarantee?
A2: 12 month free warranty.

Q3: The engineer is available for overseas services?
A3: Yes, we supply engineer who is good at communication and understand English.

Q4: Why your price is nice than other supplier. (May you was received our machine's quotation but you still can't decided make order now or latter, hope there I not yet miss you.)
A4: We are manufacture and our engineer and worker is local. Furthermore. we are more forcus on developing products not advertisement only.

Q5: What is the brands for the electrical system?

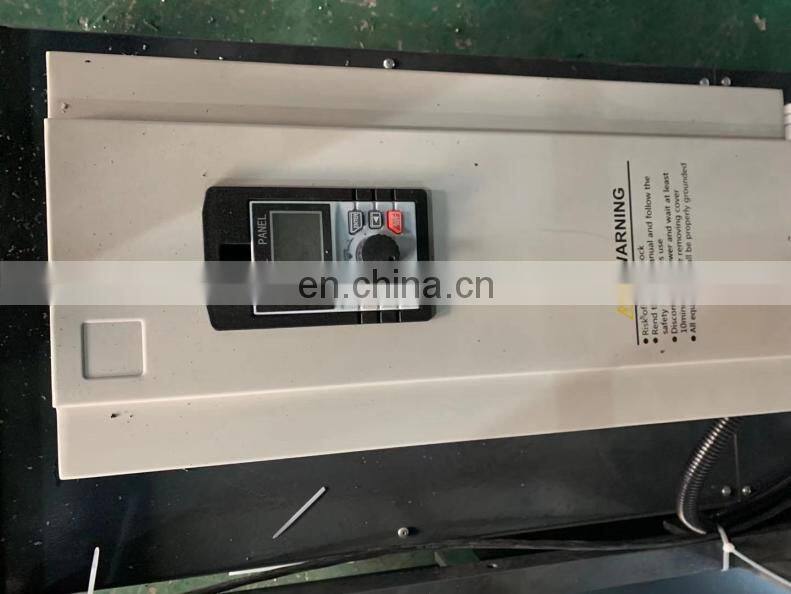

A5: We are using Schneider PLC inverter, Omron and other international brand's parts that ensure the machine could run smoothly.

Q6: Which level of your products in market?
A6: High and mid grade quality with nice price.

Q7: Where are you?
A7: We are located in Machine's city Wenzhou, Zhejiang,China, welcome to visit us while you visit China.

Q8: Will you supply for OEM or ODM orders?
A8: Yes, we are, if you have any advise please let us know that we could make unique machine for you only.
