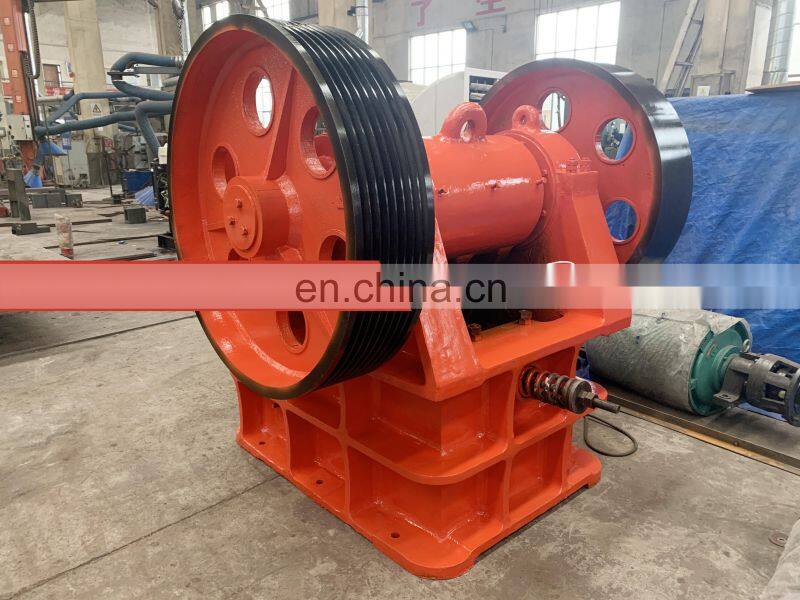

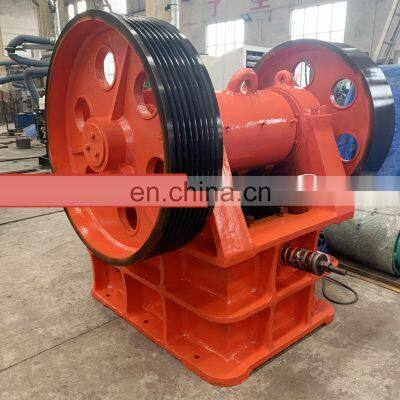

Portable Mobile Diesel Engine Mining Gold Ore Rock Stone Limestonel Pe400x600 Jaw Crusher Pe250x400 Laboratory Crushing Machine
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
High Standard Good Hardness Vertical Compound Stone Cone Crusher Manufacturer
-
100 T/H Fine Impact Crusher Machine for Limestone Coal Crushing Plant For Sale
-
Best Seller High Quality Hammer Crusher Manufacturer Supply
-
Laboratory Stone Crushing Rock Gold Crushing Machine Gold Ore Crushing PE250X400 Diesel Primary pe 400*600 Stone Crushers Jaw
-
Customized 2pg Rock Stone Crushing Machine Double Coal Roller Crusher Roll Mill Stone Crusher Machine Price
-
Mining Machine Cast Steel Wear Jaw Cone Crusher Spare Parts
Product Description
Features About Products
1.Model for the latest products, a wide range of applications, with a compact structure, long service life, and high work efficiency.
2.Adjustable for easy wear parts, Easy replacement of wear and spare parts.High capacity, less costly and Easy to install.
3.The machine has a large crushing ratio, uniform product size, simple structure, convenient maintenance.
4.First-class technology, reliable pre-sale customer service quality. The products meet European CE certification standards..
Model | Max. feeding size(mm) | Adjusting range of output opening(mm) | Capacity (t/h) | Mainshaft speed(r/min) | Power (kw) | Weight (t) |
PE150*250 | 125 | 10-40 | 1-3 | 285 | 5.5 | 0.70 |
PE200*300 | 165 | 20-70 | 2-8 | 265 | 11 | 0.80 |
PE250*400 | 210 | 20-80 | 5-20 | 310 | 15-18.5 | 3.00 |
PE400*600 | 340 | 40-90 | 10-40 | 275 | 30 | 7.20 |
PE350*700 | 290 | 30-55 | 20-50 | 300 | 37 | 8.90 |
PE500*750 | 425 | 50-100 | 34-68 | 275 | 55 | 11.32 |
PE600*900 | 480 | 75-200 | 40-120 | 255 | 75 | 17.60 |
PE750*1060 | 630 | 80-200 | 80-160 | 250 | 90 | 30.53 |
PE900*1200 | 750 | 100-200 | 110-200 | 250 | 110 | 50.00 |
PE1000*1200 | 850 | 195-265 | 315-500 | 200 | 110 | 55.00 |
PE1200*1500 | 1020 | 165-300 | 400-800 | 180 | 160 | 100.00 |
Performance Characteristics
1) Simple structure, convenient in use and maintenance. Stable performance, low operation cost, high crushing ratio.
2) Crushing cavity depth and no blind spot, increasing the feeding ability and capacity.
3) High crushing ratio, uniform product size.
4) Gasket type discharging mouth adjusting device, reliable, convenient and the adjust ingrange is big, increase the flexibility of the equipment.
5) Lubrication system safe and reliable, easy to parts replacement, small maintenance workload.
6)Simple structure, reliable operation, low operating costs.
7)Energy saving: stand-alone energy saving 15% ~ 30%, the system energy saving more than double.
8)Discharging mouth wide adjustment range, can meet the requirements of different users.
9)Low noise, little dust.
2) Crushing cavity depth and no blind spot, increasing the feeding ability and capacity.
3) High crushing ratio, uniform product size.
4) Gasket type discharging mouth adjusting device, reliable, convenient and the adjust ingrange is big, increase the flexibility of the equipment.
5) Lubrication system safe and reliable, easy to parts replacement, small maintenance workload.
6)Simple structure, reliable operation, low operating costs.
7)Energy saving: stand-alone energy saving 15% ~ 30%, the system energy saving more than double.
8)Discharging mouth wide adjustment range, can meet the requirements of different users.
9)Low noise, little dust.
You can click here to get preferential prices and more product details!
Working principle
Jaw crusher machine uses motor as its power. Through the motor's wheels, the eccentric shaft is driven by the triangle belt and slot wheel to make the moving jaw plate move by a regulated track. Therefore, the materials in the crushing cavity ,which is composed of fixed jaw plate, moving jaw plate and side liner,can be crushed and discharged through the discharging opening.
Company Profile
Gongyi Hengchang Metallurgy Building Material Equipments plant was built in 1992, a professional manufacturer specializing in the production of coal slurry dryer, coal slime dryer , coal dryer ,sawdust dryer , fly ash dryer , slag dryer ,vinasse dryer and so on.
We have professional engineers and experienced workers in our factory, we ensure that we supply good quality and good price to our customers.
Customer Visit & Our Service
(A) Pre-sale services:
Act as a good adviser and assistant of clients, enable them to get rich and generous returns on their
investments.
investments.
1.Select equipment model;
2.Design and manufacture products according to clients' special requirement;
3.Train technical personnel for clients;
4.Services during the sale;
2.Design and manufacture products according to clients' special requirement;
3.Train technical personnel for clients;
4.Services during the sale;
(B)Provide considerate services to minimize clients' worries:
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3.Train the first-line operators;
4.Examine the equipment;
5.Take initiative to eliminate
the troubles rapidly;
6.Provide perfect service;
7.Provide technical exchanges..
2.Install and debug the equipment;
3.Train the first-line operators;
4.Examine the equipment;
5.Take initiative to eliminate
the troubles rapidly;
6.Provide perfect service;
7.Provide technical exchanges..
(C).After-sale services:Provide considerate services to minimize clients' worries:
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3.Train the first-line operators;
4.Examine the equipment;
5.Take initiative to eliminate
the troubles rapidly;
6.Provide perfect service;
7.Provide technical exchanges...
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3.Train the first-line operators;
4.Examine the equipment;
5.Take initiative to eliminate
the troubles rapidly;
6.Provide perfect service;
7.Provide technical exchanges...
Customer cases

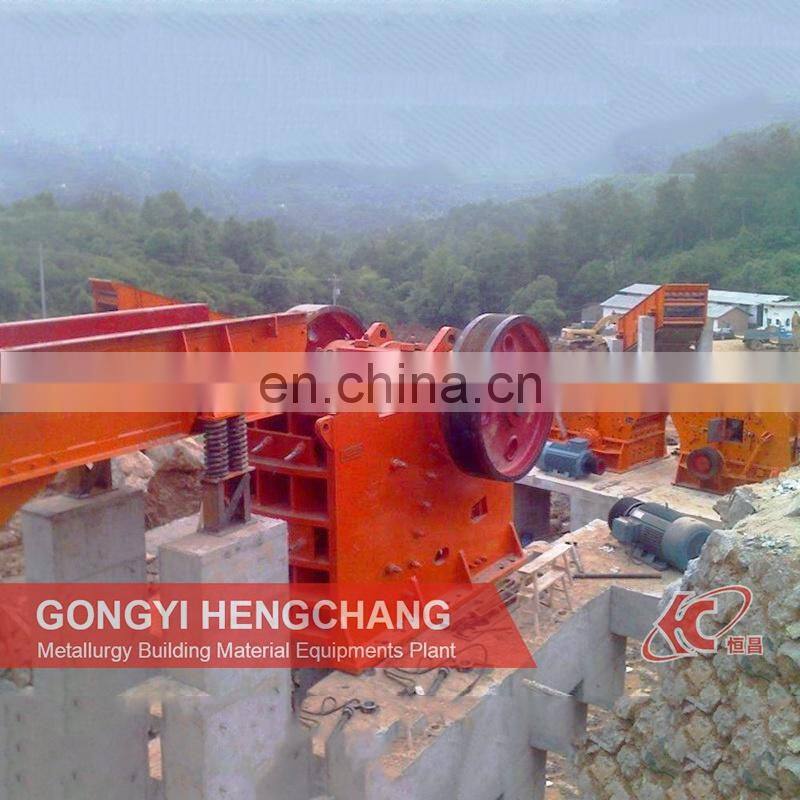

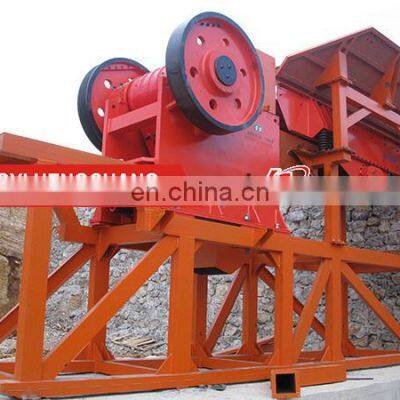

JAW CRUSHER CASE
As the primary crusher to the medium size crushing of various ores and large-size materials.
2.150t/h
3.Large crushing ratio, high productive capacity, easy operation.
4.1200TPD in Tanzania.
3.Large crushing ratio, high productive capacity, easy operation.
4.1200TPD in Tanzania.
JAW CRUSHER CASE
1.As the primary crusher to the medium size crushing of various ores and large-size materials.
2. 20t/h
3.Large crushing ratio, high productive capacity, easy operation.
3.Large crushing ratio, high productive capacity, easy operation.
4. 200TPD in India.
Click on the orange coupons above, and you will get some good discounts when you buy products!

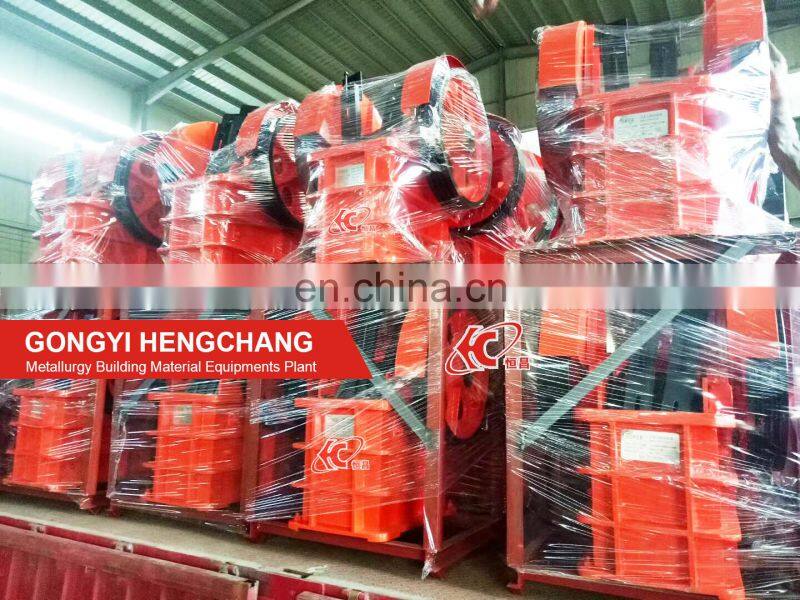

Packing and delivery
Packaging Details:We will make different packaging according to different machine sizes standard international export packing,container, wooden box.
Delivery Time:We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 15 to 25working days.
Delivery Time:We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 15 to 25working days.
FAQ
Q: For providing you the suitable quotation we need to know the following information:
A:
1. What is the raw material?
2. What is the capacity per hour you required ?
3. What is the maximum input size of the raw material ?
4. What is the final briquettes size and shape you want? Once we get your answers, I can provide you the best quotation immediately.
A:
1. What is the raw material?
2. What is the capacity per hour you required ?
3. What is the maximum input size of the raw material ?
4. What is the final briquettes size and shape you want? Once we get your answers, I can provide you the best quotation immediately.
Remarks: The price will depend on different models.
Q: What about Warranty of the products ?
A:
Gongyi hengchang machinary grants our customers a twelve-month-period warranty from the date of delivery for machines exported from us. During the warranty period, in case any defect of material or workmanship occurred with spare parts in norma operation,we will at our discretion replace or repair the defective parts freely.
Q: What about Warranty of the products ?
A:
Gongyi hengchang machinary grants our customers a twelve-month-period warranty from the date of delivery for machines exported from us. During the warranty period, in case any defect of material or workmanship occurred with spare parts in norma operation,we will at our discretion replace or repair the defective parts freely.
