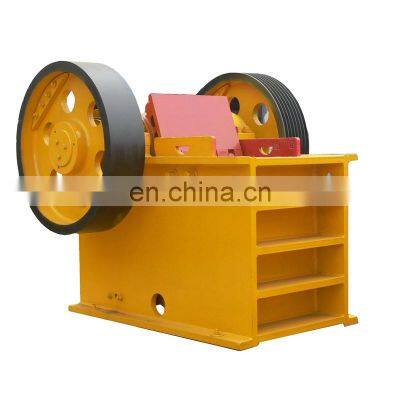

Heavy Duty PE Series High Ratio Of Crushing Euro-Module Primary Jaw Crusher For Breaking Stones
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
Fine output size hammer mill gold crusher
-
High Efficiency Stone Crushing Machine Impact Hammer Crusher for Sale
-

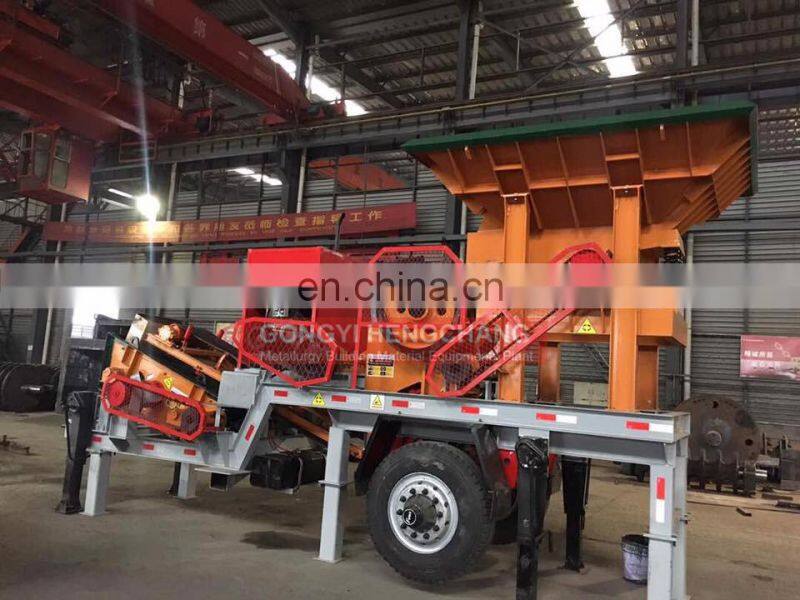

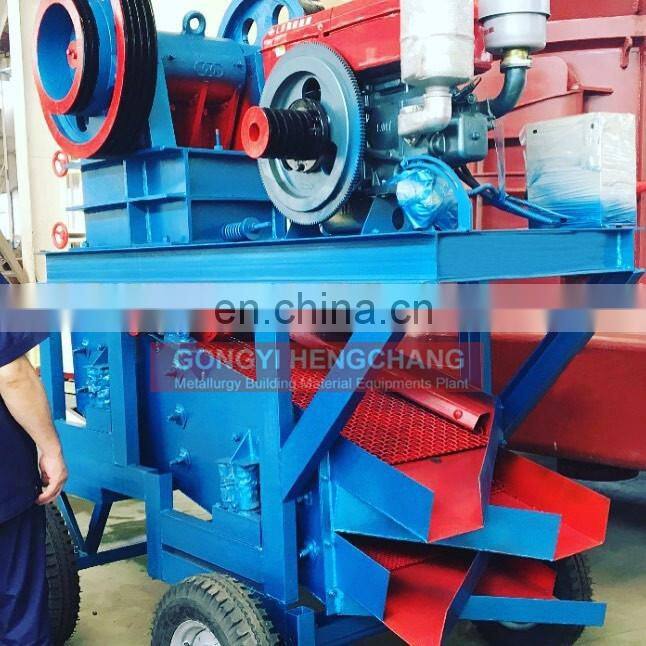

High Productivity Small Mini Mobile Mining Stone Diesel Engine Jaw Crusher
-
Universal Quarry Small Jaw Crusher Plant 50thp pe200*300- 1200x1500- 500x750-200 x 300-pe500x750 Jaw Crusher For Sale
-
Mini 2pg Rock Stone Crushing Machine Double Coal Teeth Roller Roll Hard Stone Crusher Machine for Sale
-
Hammer Crusher Manufacturer Sale Gold Mining Equipment PC400X300 Mini Small Scale Hammer Mill Stone Crusher For Gold Mining
Product Description
Products Description
The jaw crusher machine consists of two jaw plates, the dynamic jaw and static jaw.The working part of the jaw crusher is two jaw plates, one is the fixed jaw plate (stationary jaw), the other is the mobile jaw plate (dynamic jaw), the position is inclined, with the fixed jaw plate forms the upper big lower small crushing cavity (working chamber).The movable jaw plate moves periodically to the stationary jaw plate, sometimes apart, sometimes close.When separated, the material enters the crushing chamber and the finished product is discharged from the lower part.When close, the material between two jaw plates is compressed, bent and split.Widely used in mine smelting, building materials, roads, railways, water conservancy and chemical industries and other industries of various ore and bulk material crushing.The maximum compressive strength of the crushed material is 320Mpa.
Details Images

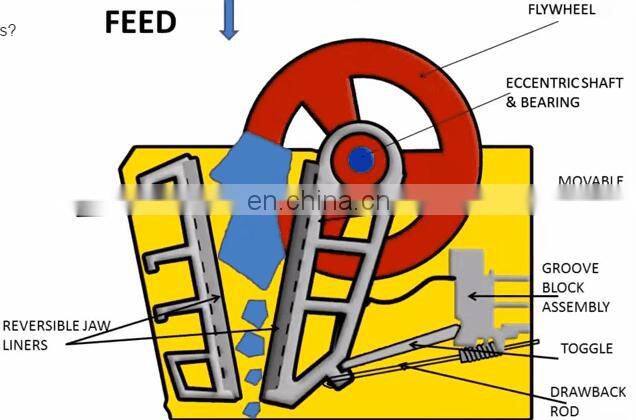

Working principle
When the jaw crusher is working, the movable jaws make periodic reciprocating motions to the fixed jaws, sometimes approaching and sometimes leaving. When approaching, the material is crushed, split, and impacted between the jaws; when it is removed, the broken material is discharged from the discharge opening by gravity. In the process of breaking large stones into small stones, the first crusher is usually a main crusher. The longest and most solid crusher is a jaw crusher. When feeding the jaw crusher, the material is poured from the top inlet into the crushing chamber containing the rake teeth, and the rake teeth force the material against the wall of the chamber and break it into smaller stones. An eccentric shaft is supported for the movement of the caries, and the eccentric shaft penetrates the frame of the fuselage. Eccentric motion is usually generated by flywheels fixed at both ends of the shaft. Flywheels and eccentrically supported bearings often use spherical roller bearings, which must withstand large shock loads, abrasive sewage, and high temperatures.
Feature
1, low noise, less dust.
2. The crushing ratio is large and the product size is uniform.
3, simple structure, reliable work, low operating costs.
4. Lubrication system is safe and reliable, parts are easy to replace, and equipment maintenance is simple.
5, deep crushing cavity and no dead zone, improve the feeding capacity and output.
6. Energy-saving equipment: Single-machine energy-saving 15% to 30%, system energy-saving more than doubled.
7. The discharge outlet has a wide range of adjustment to meet the requirements of different users.
Production Advantages
Main frame

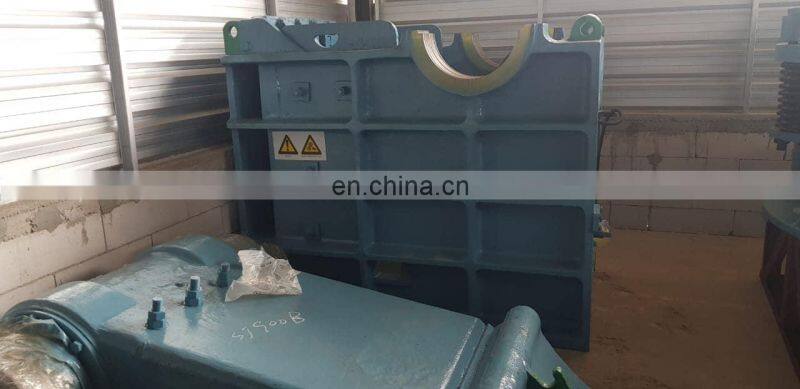

The frame is a square frame with upper and lower openings, which is used to support the eccentric shaft and bear the reaction force of crushing materials, which requires sufficient strength and rigidity.Whether it is a large jaw crusher or a small jaw crusher, our factory uses cast steel as a whole.

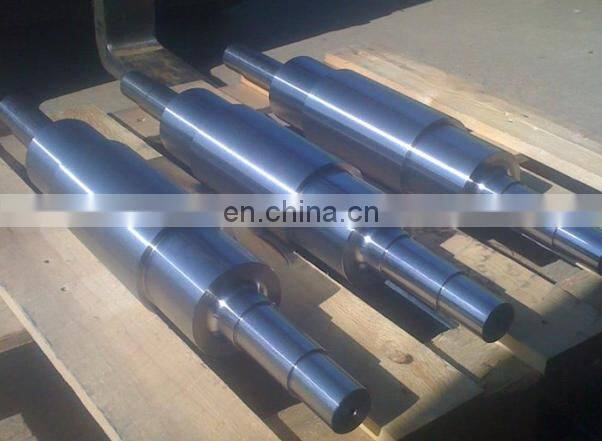

Shaft
The eccentric shaft is the main shaft of the crusher, which is subjected to huge bending and torsional forces and is made of high carbon steel. The eccentric part must be finished, heat treated, and the bearing bushes are cast with Babbitt alloy. The eccentric shaft is equipped with a pulley at one end and a flywheel at the other end.

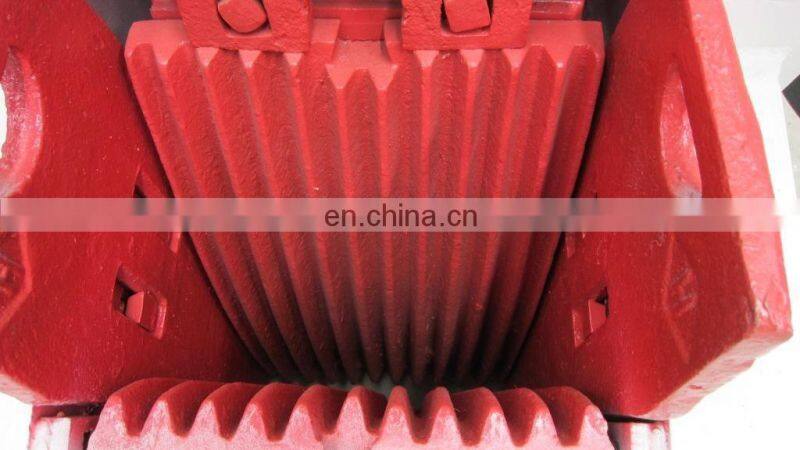

Jaw plate
The fixed jaw plate and movable jaw plate are composed of a jaw bed and a jaw plate. The jaw plate is the working part and is fixed on the jaw bed with bolts and wedges. To have sufficient strength and rigidity to withstand the crushing reaction force, we also use high strength Cast steel.
Product Paramenters
Model | Max. Input Size (mm) | Adjustment Range (mm) | Capacity (t/h) | Shaft Speed (r/min) | Motor Power (kw) | Overall Dimensions (mm) | Weight (kg) |
PE150*250 | 125 | 10-40 | 1-3 | 285 | 5.5 | 922*745*933 | 750 |
PE200*300 | 165 | 15-50 | 2-8 | 265 | 7.5 | 1056*1100*1120 | 1100 |
PE250*400 | 210 | 20-60 | 5-20 | 300 | 15 | 1108*1142*1392 | 2900 |
PE400*600 | 340 | 40-90 | 25-64 | 280 | 30 | 1700*1732*1653 | 6900 |
PE500*750 | 425 | 50-100 | 34-68 | 275 | 55 | 2050*1860*2145 | 10500 |
PE600*900 | 480 | 65-160 | 56-192 | 250 | 75 | 2792*2168*2250 | 17500 |
PE750*1060 | 630 | 80-140 | 110-242 | 250 | 90 | 4180*2560*3070 | 27000 |
PE900*1200 | 750 | 100-200 | 158-256 | 250 | 110 | 5200*2900*3500 | 50000 |
PEX150*750 | 125 | 10-40 | 8-35 | 300 | 15 | 1220*1480*1180 | 3300 |
PEX250*1000 | 210 | 15-50 | 15-50 | 300 | 30 | 1580*1992*1380 | 7100 |
PEX250*1200 | 210 | 15-50 | 20-60 | 300 | 45 | 1730*2192*1380 | 8700 |
PEX300*1300 | 250 | 20-90 | 20-90 | 300 | 75 | 1930*2400*1747 | 11600 |
Certifications
Jaw crusher CE Certification
ISO Quality System Identification
Motor CE certification
Recommend Products

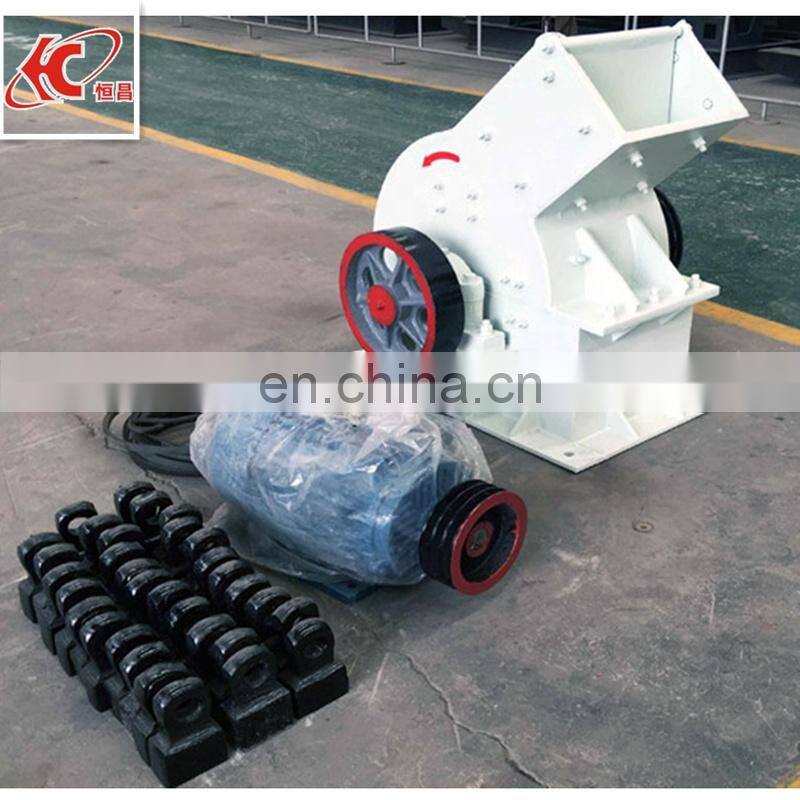

Hammer crusher

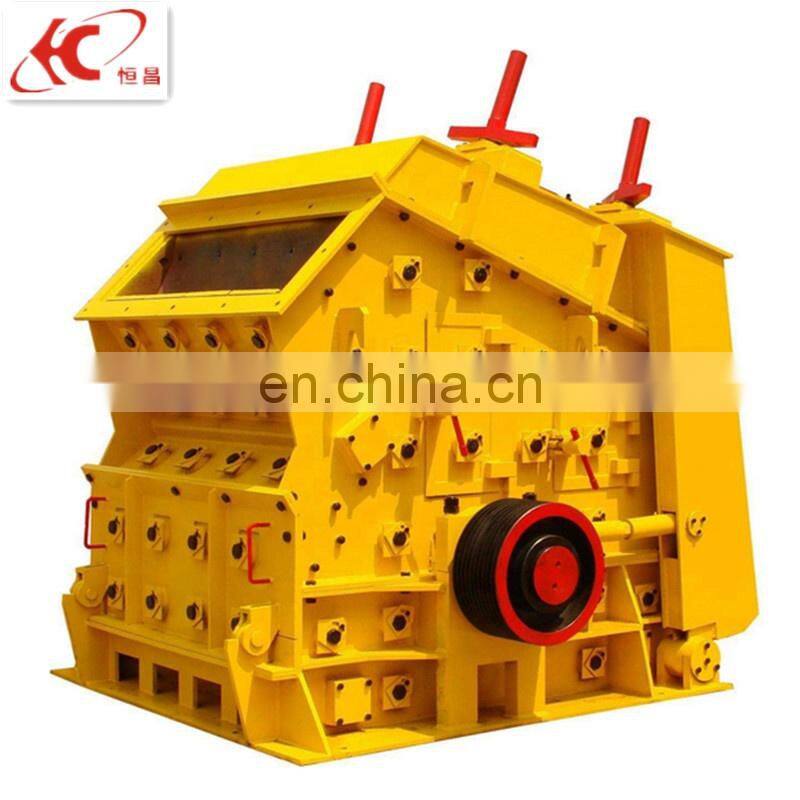

Impact crusher

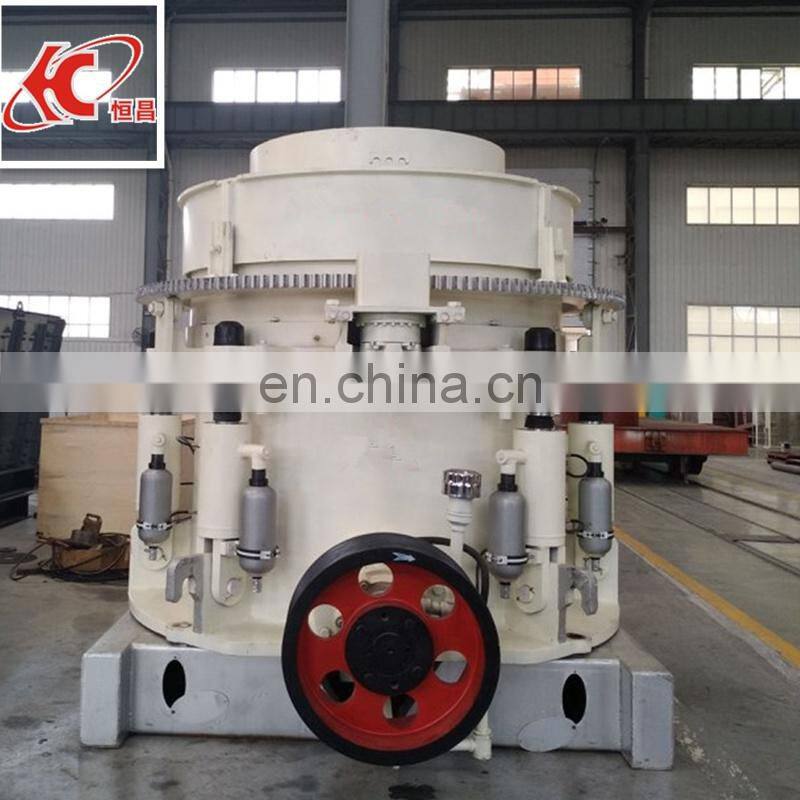

Cone crusher
