Professional Mobile Rock Crushers Small Portable Jaw Crusher For Sale
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Big Capacity Gold Mining Ore Portable Mobile Jaw Crusher Machine for Sale
-
Stone Jaw Crusher pe 400x600
-
Briquette Making Line Coconut Shell Charcoal Crusher
-
Factory Price Long Life Alum Stone Crusher With Motor
-
Automatic Concrete Impact Crusher Gold Rock Crusher Machine
-
Best Quality Mini Jaw Crusher Stone Crusher Mining Crusher for Fixed Crushing Station
Product Description
Product Description

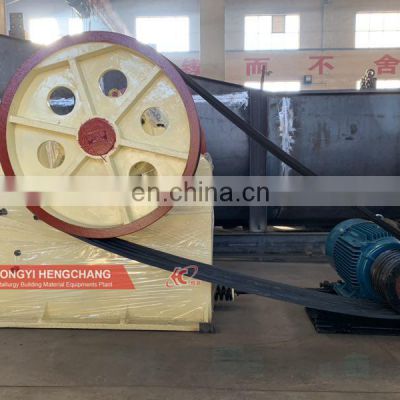

Professional Mobile Rock Crushers Small Portable Jaw Crusher For Sale

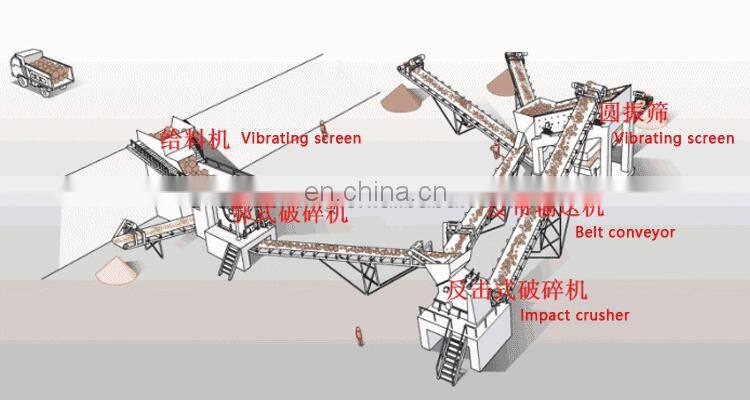

The Stone Crushing Plant mainly consists of Vibrating Feeder, Jaw Crusher, Cone Crusher or Impact Crusher, Vibrating Screen, Belt Conveyor and Control System, etc. It is completely capable to crush and screen limestone, marble, granite, basalt, river gravel
and other hard stone materials, and produce sand & gravels with various granularities for construction and building industry. We are able to design and manufacture complete crusher plants with capacity from 30tph to 500tph, and to provide optimum and most
economical solutions according to customers' requirements on stone specifications, output, application, etc.
and other hard stone materials, and produce sand & gravels with various granularities for construction and building industry. We are able to design and manufacture complete crusher plants with capacity from 30tph to 500tph, and to provide optimum and most
economical solutions according to customers' requirements on stone specifications, output, application, etc.
Jaw crusher is a kind of stone crushing machine which is widely used as primary or secondary crusher. Baichy manufactures coarse jaw crusher and fine jaw crusher in stationary type or mobile type.

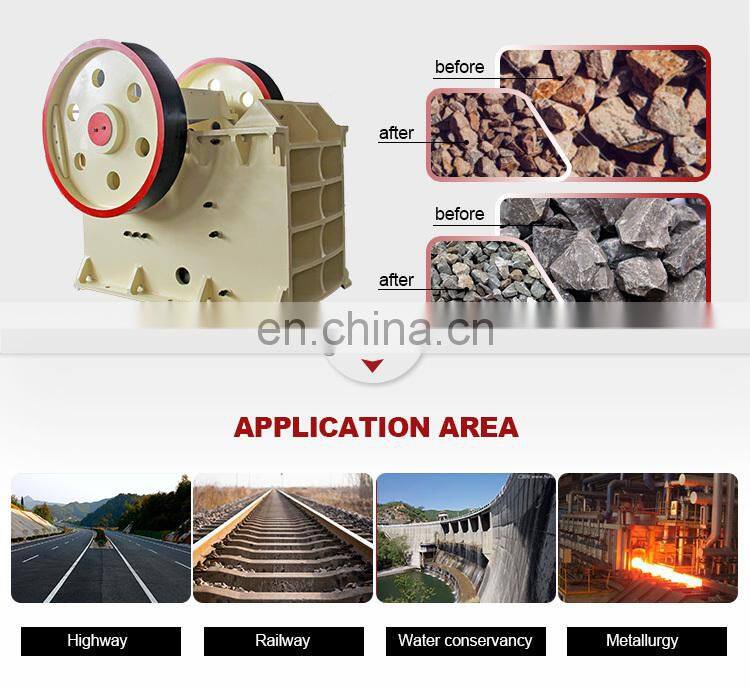

Jaw crusher is widely used in various industries, such as mining, road and railway construction, building construction,water conservation and chemical industry etc. It could crush kinds of minerals and rocks with compression strength less than 320MPa,
such as quartz, granite, basalt, limestone, river stone, sandstone, shale, iron ore, copper ore, gold ore etc.
such as quartz, granite, basalt, limestone, river stone, sandstone, shale, iron ore, copper ore, gold ore etc.

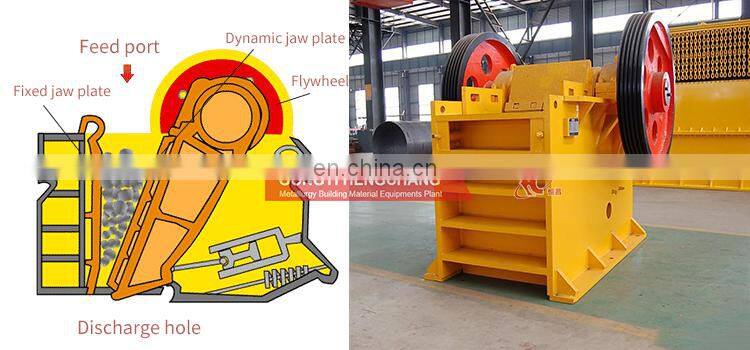

Working principle
The electromotor drives the belt and pulley to make the movable jaw move back and forth, up and down through the eccentric shaft.
The raw material is squashed or splitt when movable jaw plate moves towards fixed jaw together with movable jaw. When movable jaw and movable jaw plate turn back by eccentric shaft and spring, the raw material, which is squashed or split before discharges from the bottom outlet under jaw plate. The bulk-production comes true while electromotor rotates continuously and the movable jaw crushes and discharges the raw material periodically.
The electromotor drives the belt and pulley to make the movable jaw move back and forth, up and down through the eccentric shaft.
The raw material is squashed or splitt when movable jaw plate moves towards fixed jaw together with movable jaw. When movable jaw and movable jaw plate turn back by eccentric shaft and spring, the raw material, which is squashed or split before discharges from the bottom outlet under jaw plate. The bulk-production comes true while electromotor rotates continuously and the movable jaw crushes and discharges the raw material periodically.
(small portable jaw crusher / mobile jaw crusher / rock jaw crusher machine )
Technical Parameter
Model | Feeder Opening Size(mm) | Max. Feeding Size (mm) | Discharging Opening Size(mm) | Capacity (t/h) | Motor Power (kw) | Overall Dimension (mm) |
PE400x600 | 400x600 | 350 | 40-90 | 15-60 | 30 | 1700x1750x1680 |
PE500x750 | 500x750 | 425 | 50-100 | 40-130 | 45 | 2150x1900x1950 |
PE600x900 | 600x900 | 500 | 60-125 | 90-180 | 55 | 2500x2010x2350 |
PE750x1060 | 750x1060 | 630 | 60-150 | 110-380 | 110 | 2630x2310x3110 |
PE900x1200 | 900x1200 | 750 | 95-165 | 220-450 | 132 | 3720x2850x3250 |
PE900x1200 | 900x1200 | 750 | 95-165 | 220-450 | 132 | 3720x2850x3250 |
PE1200x1500 | 1200x1500 | 1020 | 150-300 | 400-800 | 220 | 3710x3446x4075 |
PE1500x1800 | 1500x1800 | 1200 | 210-360 | 520-1100 | 280 | 5100x4700x4300 |
(small portable jaw crusher / mobile jaw crusher / rock jaw crusher machine )

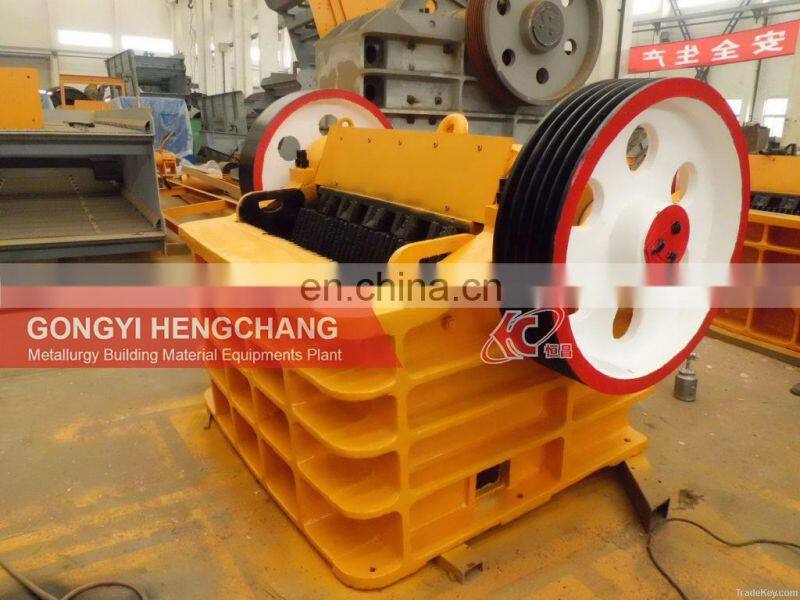

Eccentric shaft adopt 40Cr steel precise forged, Advanced Movable jaw plate assemble made from high quality casting parts,Tooth-shape plate, deep V-chamber, high manganese steel material ZGMn13-4 make crusher more reliable, Precise casting heavy fly
wheel,Jaw crusher frame adopt thick Q235B heavy steel plate welding process.Machine blasting, anti-rust painting, surface painting at least three times paintings.
wheel,Jaw crusher frame adopt thick Q235B heavy steel plate welding process.Machine blasting, anti-rust painting, surface painting at least three times paintings.

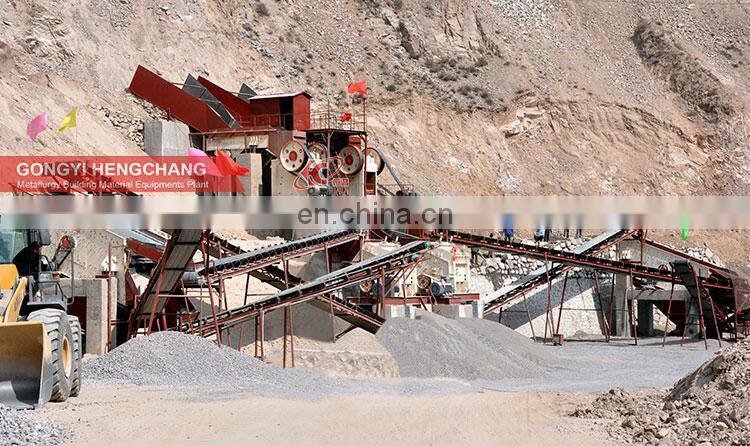

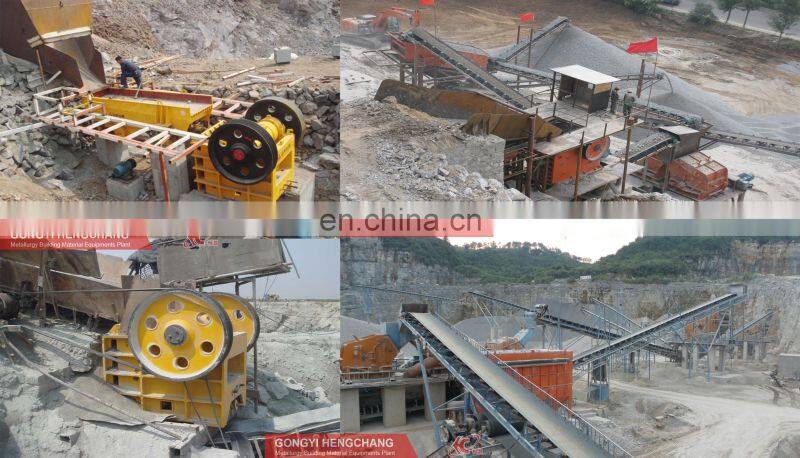

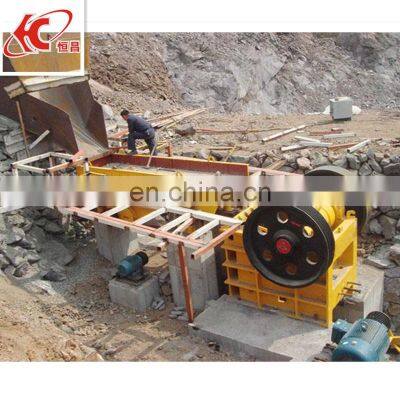

The Customer site
(small portable jaw crusher / mobile jaw crusher / rock jaw crusher machine )
Company Profile
Gongyi Hengchang Metallurgy Building Material Equipments plant was built in 1992, a professional manufacturer specializing in the production of coal slurry dryer, coal slime dryer , coal dryer ,sawdust dryer , fly ash dryer , slag dryer ,vinasse dryer and so on.
We have professional engineers and experienced workers in our factory, we ensure that we supply good quality and good price to our customers.
Customer Visit & Our Service
Our customers / services
A.Pre-sale services:
Act as a good adviser and assistant of clients, enable them to get rich and generous returns on their investments.
1.Select equipment model;
2.Design and manufacture products according to clients' special requirement;
3.Train technical personnel for clients;
B.Services during the sale:
Respect clients, devote ourselves to improving the total value of clients:
1.Pre-check and accept products ahead of delivery;
2.Help clients to draft solving plans;
C.After-sale services:
Provide considerate services to minimize clients' worries:
1.Assist clients to prepare for the first construction scheme;2.Install and debug the equipment; 3.Train the first-lineoperators;4.Examine the equipment; 5.Take initiative to eliminate the troubles rapidly; 6.Provide perfect service;7.Provide technical exchanges...
Act as a good adviser and assistant of clients, enable them to get rich and generous returns on their investments.
1.Select equipment model;
2.Design and manufacture products according to clients' special requirement;
3.Train technical personnel for clients;
B.Services during the sale:
Respect clients, devote ourselves to improving the total value of clients:
1.Pre-check and accept products ahead of delivery;
2.Help clients to draft solving plans;
C.After-sale services:
Provide considerate services to minimize clients' worries:
1.Assist clients to prepare for the first construction scheme;2.Install and debug the equipment; 3.Train the first-lineoperators;4.Examine the equipment; 5.Take initiative to eliminate the troubles rapidly; 6.Provide perfect service;7.Provide technical exchanges...

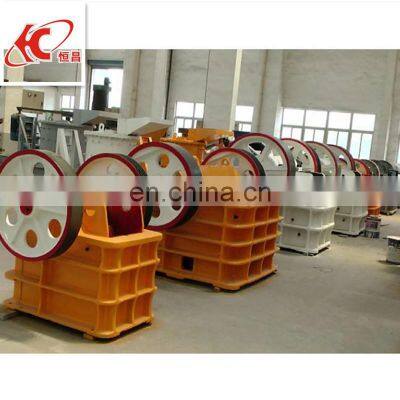

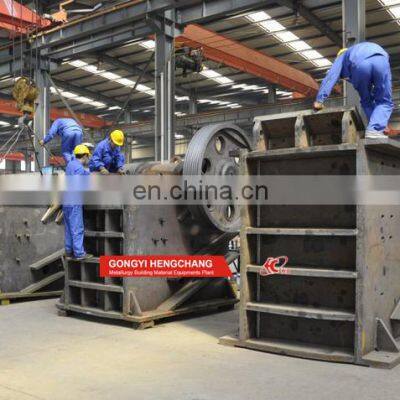

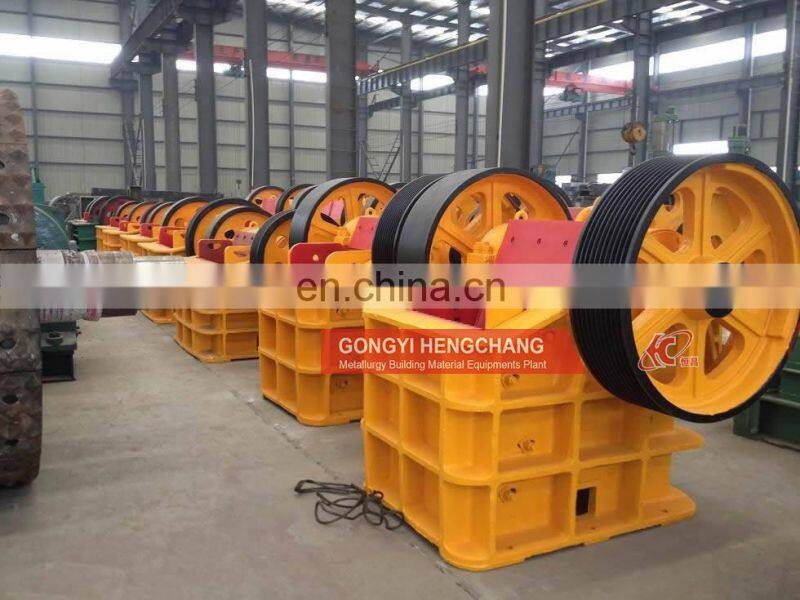

Our Workshop
We are a real manufacturer, not a trading company. We have the best after-sales service. The complete set of markene production is produced by ourselves, without the need to buy different machine connection product lines from different manufacturers.
Packing and delivery
Packaging Details:We will make different packaging according to different machine sizes standard international export packing,container, wooden box.
Delivery Time:We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 15 to 25working days.
Delivery Time:We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 15 to 25working days.
(small portable jaw crusher / mobile jaw crusher / rock jaw crusher machine )
FAQ
Q: For providing you the suitable quotation we need to know the following information:
A:
1. What is the raw material?
2. What is the capacity per hour you required ?
3. What is the maximum input size of the raw material ?
4. What is the final briquettes size and shape you want? Once we get your answers, I can provide you the best quotation immediately.
A:
1. What is the raw material?
2. What is the capacity per hour you required ?
3. What is the maximum input size of the raw material ?
4. What is the final briquettes size and shape you want? Once we get your answers, I can provide you the best quotation immediately.
Remarks: The price will depend on different models.
Q: What about Warranty of the products ?
A:
Gongyi hengchang machinary grants our customers a twelve-month-period warranty from the date of delivery for machines exported from us. During the warranty period, in case any defect of material or workmanship occurred with spare parts in norma operation,we will at our discretion replace or repair the defective parts freely.
Q: What about Warranty of the products ?
A:
Gongyi hengchang machinary grants our customers a twelve-month-period warranty from the date of delivery for machines exported from us. During the warranty period, in case any defect of material or workmanship occurred with spare parts in norma operation,we will at our discretion replace or repair the defective parts freely.
