Hot Sale PE250X400 PE 150*250 PE 600*900 Stone Crushing Jaw Crusher Machine
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Secondary Coarse Crusher Rock Stone Cone Crusher Machine
-
Portable Mobile Diesel Engine Mining Gold Ore Rock Stone Limestonel Pe400x600 Jaw Crusher Pe250x400 Laboratory Crushing Machine
-
High Standard Good Hardness Vertical Compound Stone Cone Crusher Manufacturer
-
100 T/H Fine Impact Crusher Machine for Limestone Coal Crushing Plant For Sale
-
Best Seller High Quality Hammer Crusher Manufacturer Supply
-
Laboratory Stone Crushing Rock Gold Crushing Machine Gold Ore Crushing PE250X400 Diesel Primary pe 400*600 Stone Crushers Jaw
Product Description
Product Description
Hot Sale PE250X400 PE 150*250 PE 600*900 Stone Crushing Jaw Crusher Machine
Jaw crusher is a new product absorbing world advanced technology, bases on our present traditional jaw crusher, and adopts three-dimensional design theory. Comparing with traditional jaw crusher, it has larger capacity and crushing ratio, bigger range of input size, evener product size, and easier maintenance.

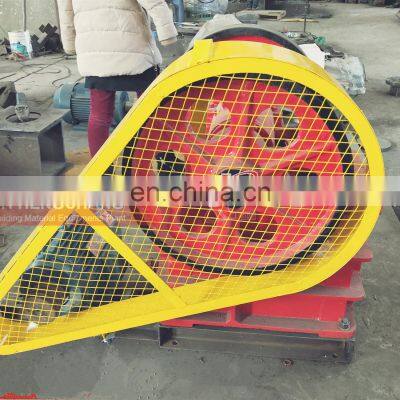

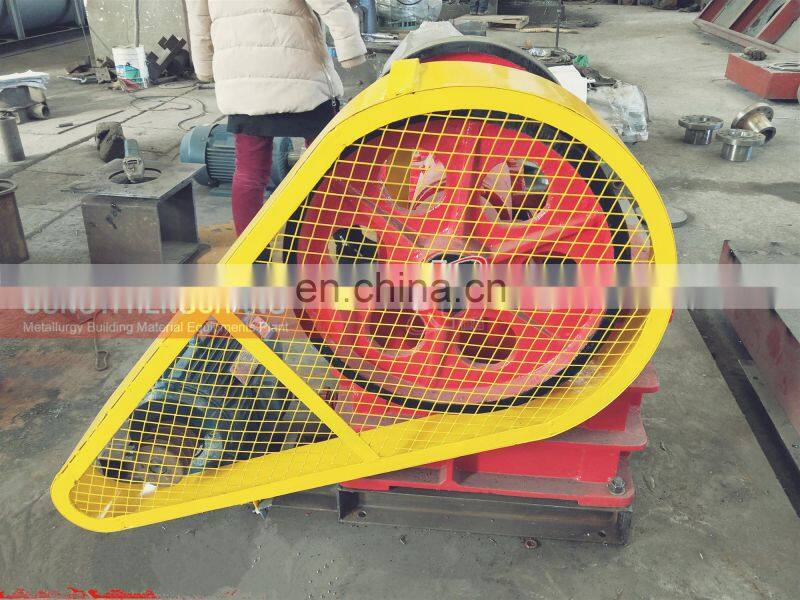

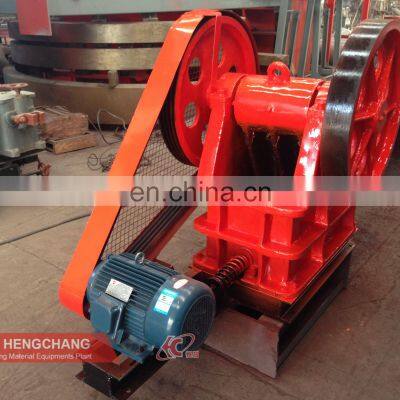

jaw crusher machine/ pe 150*250 jaw crusher /jaw crusher 250x400

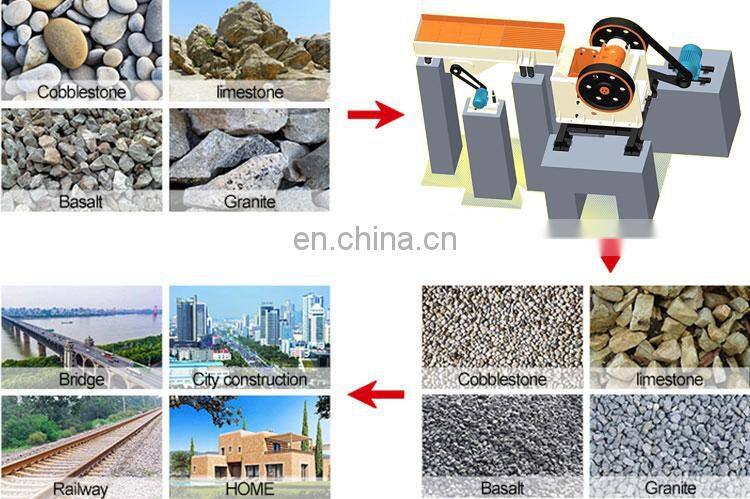

Working principle
Motor drives eccentric axis to rotate through belt pulley, makes movable jaw approach periodically, leaves fixed jaw. Thereby materials are squeezed, rubbed, crushed etc. In Oder to discharge materials form the discharge gate, this action will make the materials become smaller and fall down.

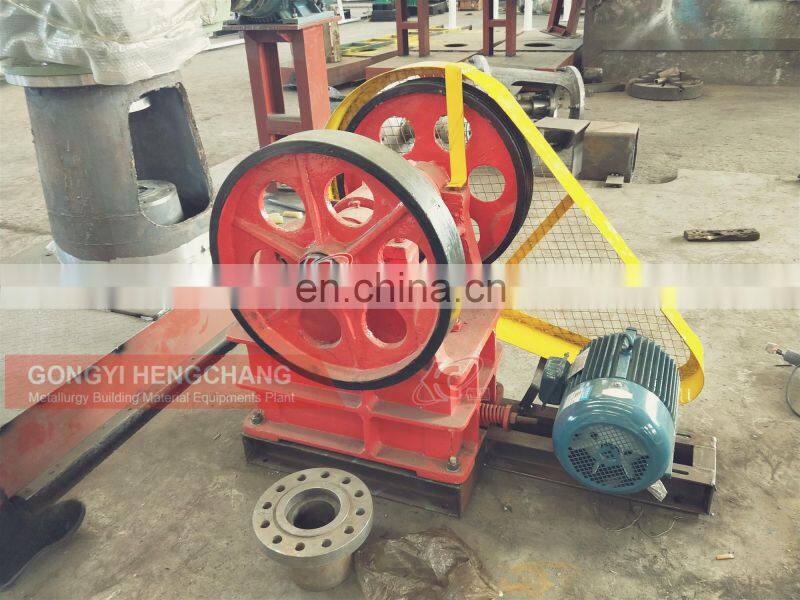

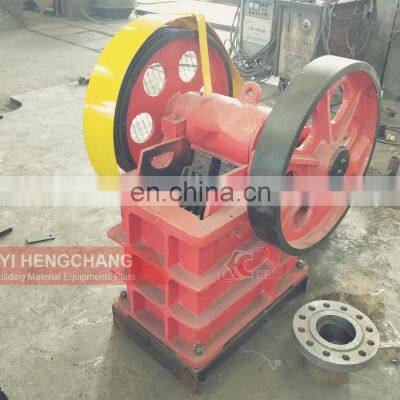

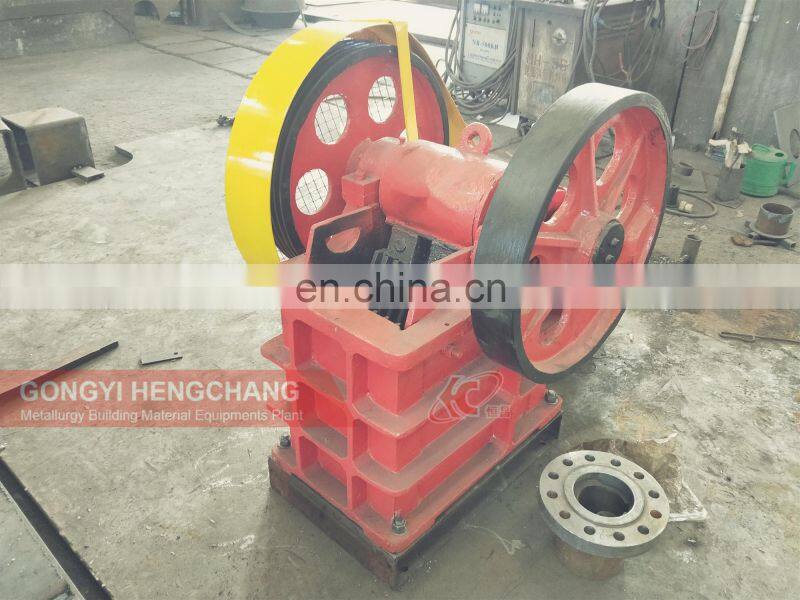

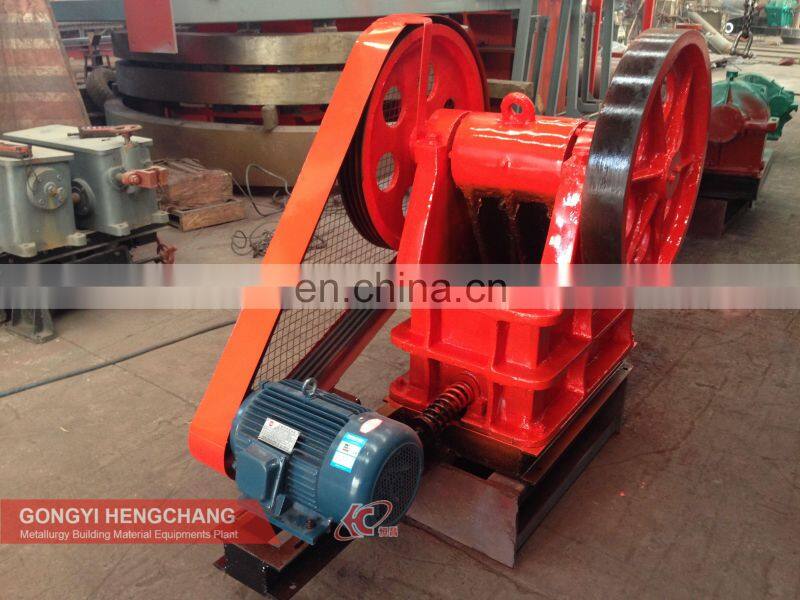

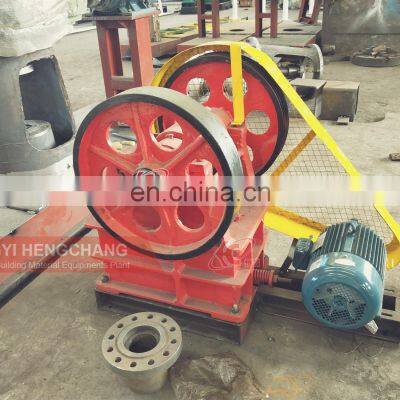

portable jaw crusher for sale / jaw crusher pe 400x600 / energy saving jaw crusher
Main features
1. Firm structure, stable performance, large capacity, even producing granularity.
2. With the increase of production, our jaw crusher can greatly reduce the operating costs
3. Convenient maintenance and economical running expense..
4. The large feed opening and force-feeding action from the inward and downward eccentric movement of the swing jaw mean that our jaw crusher can increase the capacity.
Company Profile
About Hengchang:
Gongyi Hengchang Metallurgy Building Material Equipments plant was built in 1992, a professional manufacturer specializing in the production of coal slurry dryer, coal slime dryer , coal dryer ,sawdust dryer , fly ash dryer , slag dryer ,vinasse dryer and so on.
We have professional engineers and experienced workers in our factory, we ensure that we supply good quality and good price to our customers.
We have professional engineers and experienced workers in our factory, we ensure that we supply good quality and good price to our customers.
Technical Parameter
Model | Max. Input Size (mm) | Adjustment Range (mm) | Capacity (t/h) | Shaft Speed (r/min) | Motor Power (kw) | Overall Dimensions (mm) | Weight (kg) |
PE150*250 | 125 | 10-40 | 1-3 | 285 | 5.5 | 922*745*933 | 750 |
PE200*300 | 165 | 15-50 | 2-8 | 265 | 7.5 | 1056*1100*1120 | 1100 |
PE250*400 | 210 | 20-60 | 5-20 | 300 | 15 | 1108*1142*1392 | 2900 |
PE400*600 | 340 | 40-90 | 25-64 | 280 | 30 | 1700*1732*1653 | 6900 |
PE500*750 | 425 | 50-100 | 34-68 | 275 | 55 | 2050*1860*2145 | 10500 |
PE600*900 | 480 | 65-160 | 56-192 | 250 | 75 | 2792*2168*2250 | 17500 |
PE750*1060 | 630 | 80-140 | 110-242 | 250 | 90 | 4180*2560*3070 | 27000 |
PE900*1200 | 750 | 100-200 | 158-256 | 250 | 110 | 5200*2900*3500 | 50000 |
PEX150*750 | 125 | 10-40 | 8-35 | 300 | 15 | 1220*1480*1180 | 3300 |
PEX250*1000 | 210 | 15-50 | 15-50 | 300 | 30 | 1580*1992*1380 | 7100 |
PEX250*1200 | 210 | 15-50 | 20-60 | 300 | 45 | 1730*2192*1380 | 8700 |
PEX300*1300 | 250 | 20-90 | 20-90 | 300 | 75 | 1930*2400*1747 | 11600 |

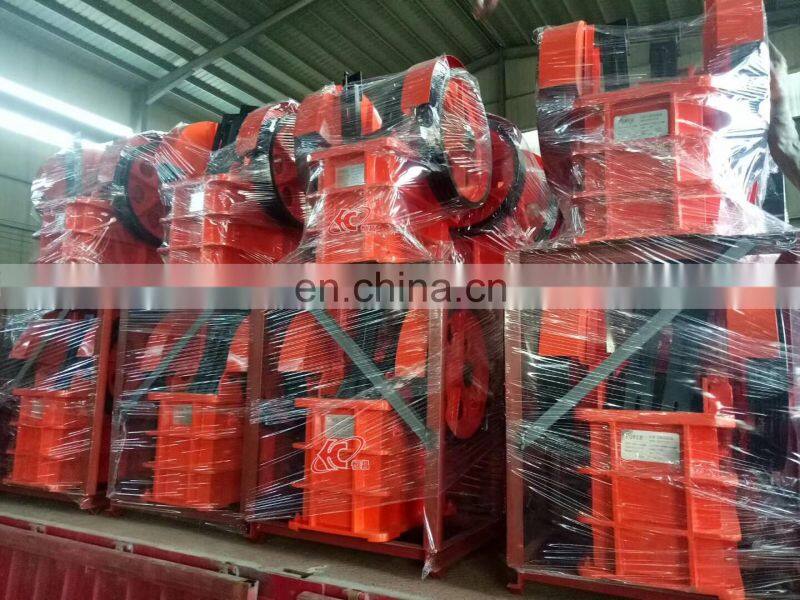

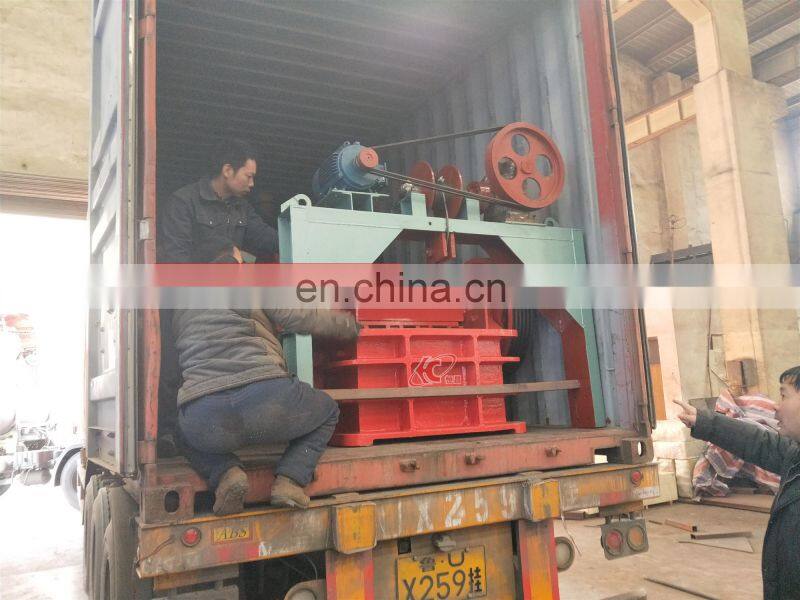

Packing and delivery
Packaging Details:We will make different packaging according to different machine sizes standard international export packing,container, wooden box.
Delivery Time:We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 15 to 25working days.
jaw crusher machine/ pe 150*250 jaw crusher /jaw crusher 250x400

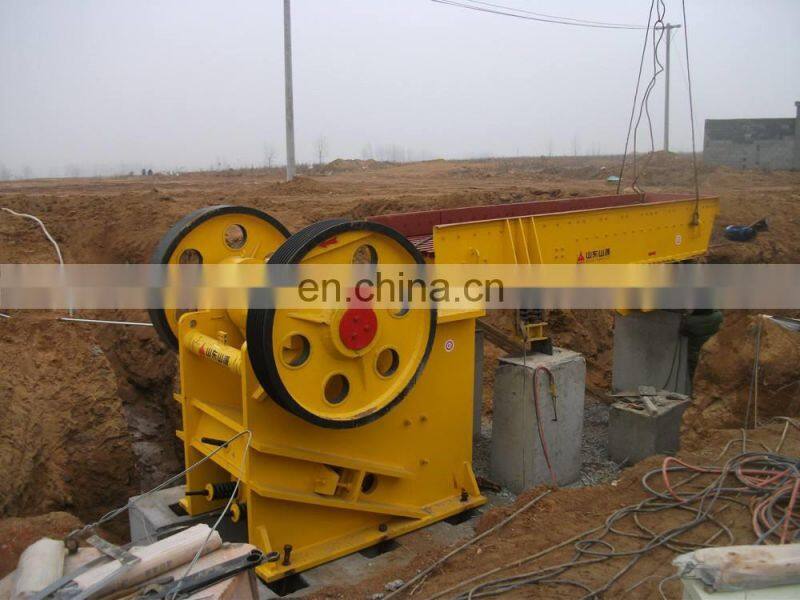

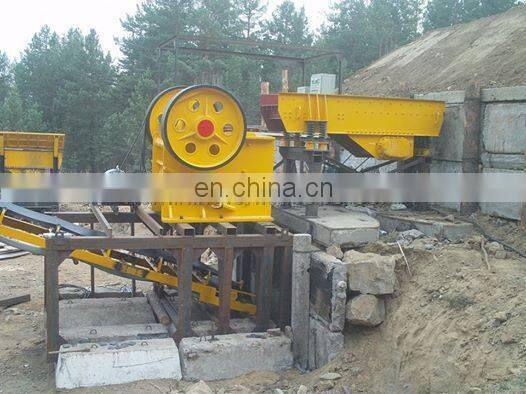

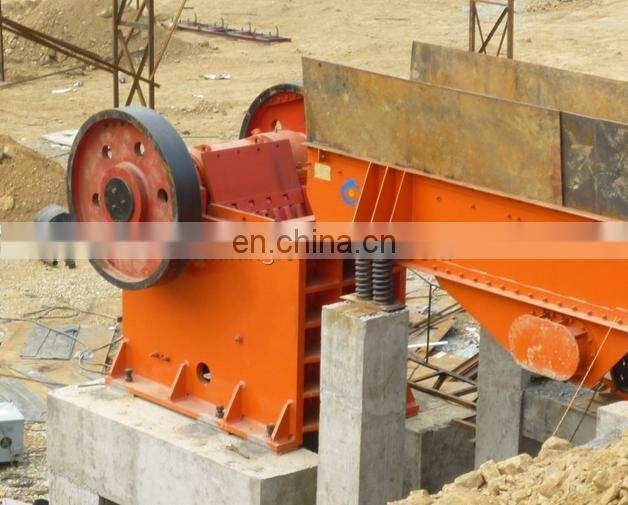

Customer case
Customer Visit & Our Service
Service---customers is the first!
(A) Pre-sale services:
Act as a good adviser and assistant of clients, enable them to get rich and generous returns on their investments.
1. Select equipment model;
2. Design and manufacture products according to clients' special requirement;
3. Train technical personnel for clients;
4. Services during the sale;
(B)Respect clients, devote ourselves to improving the total value of clients:
1.Pre-check and accept products ahead of delivery;
2 Help clients to draft solving plans;
3. After-sale services;
(C)Provide considerate services to minimize clients' worries:
1. Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3. Train the first-line operators;
4. Examine the equipment;
5. Take initiative to eliminate the troubles rapidly;
6. Provide perfect service;
7. Provide technical exchanges...
