Sale Portable Mobile Mini Jaw Crusher for Crushing Clinker Gypsum Pozzolan by Diesel
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Hot Sale PE250X400 PE 150*250 PE 600*900 Stone Crushing Jaw Crusher Machine
-
Secondary Coarse Crusher Rock Stone Cone Crusher Machine
-
Portable Mobile Diesel Engine Mining Gold Ore Rock Stone Limestonel Pe400x600 Jaw Crusher Pe250x400 Laboratory Crushing Machine
-
High Standard Good Hardness Vertical Compound Stone Cone Crusher Manufacturer
-
100 T/H Fine Impact Crusher Machine for Limestone Coal Crushing Plant For Sale
-
Best Seller High Quality Hammer Crusher Manufacturer Supply
Product Description
Product Description

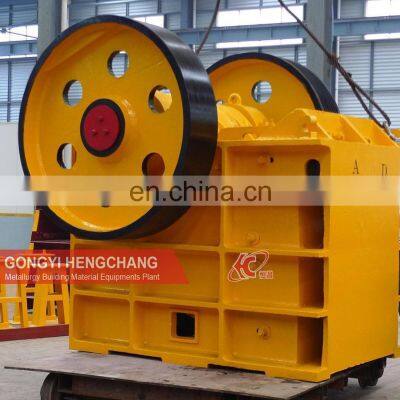

Sale Portable Mobile Mini Jaw Crusher for Crushing Clinker Gypsum Pozzolan by Diesel

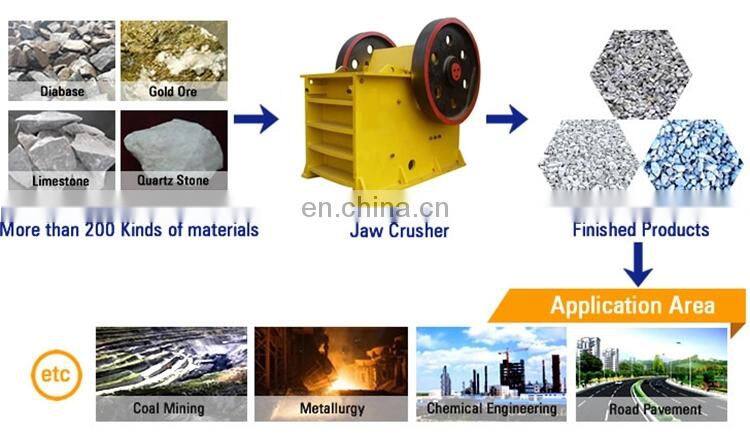

Jaw Crusher Application:
It is applied to fine crushing of various material of which compressive strength is less than or equal to 320Mpa, is applied to relatively small feeding material granularity and relatively small discharging gate, and is fitted for the secondary crushing.

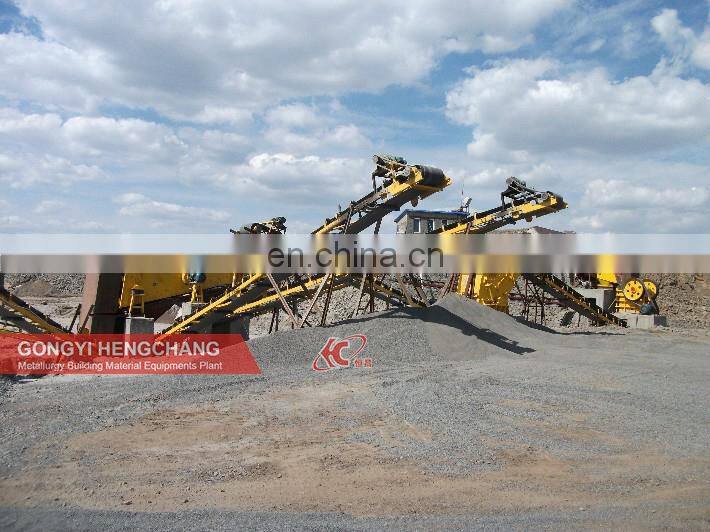

Hengchang provides a complete line of stone production; the output is widely used in road, bridge, house, high building, railway highway, water project as the type of construction material, such as aggregate, foundation stone, etc.
It is applied to fine crushing of various material of which compressive strength is less than or equal to 320Mpa, is applied to relatively small feeding material granularity and relatively small discharging gate, and is fitted for the secondary crushing.
Hengchang provides a complete line of stone production; the output is widely used in road, bridge, house, high building, railway highway, water project as the type of construction material, such as aggregate, foundation stone, etc.

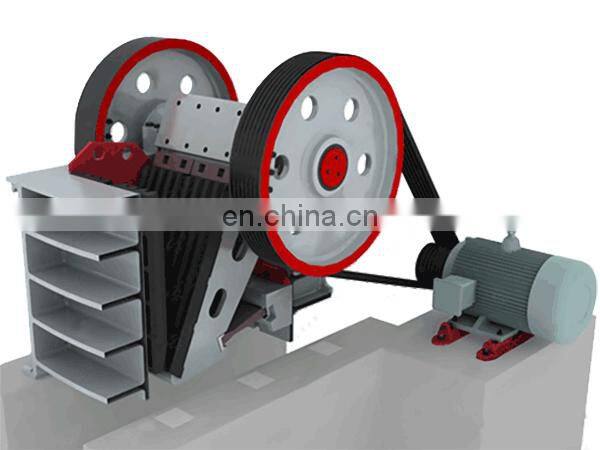

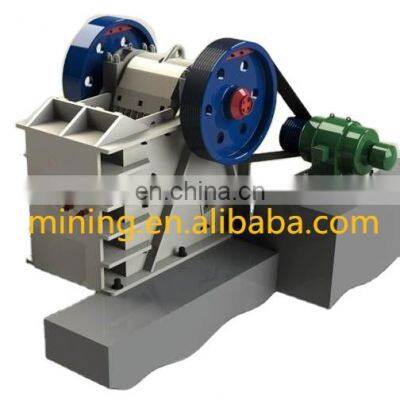

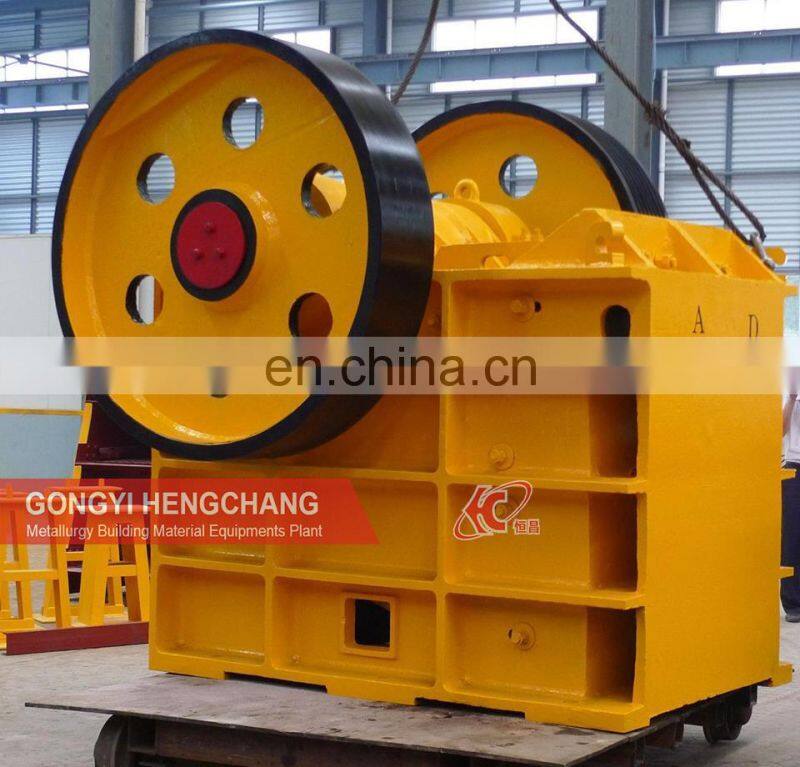

Jaw Crusher Working Principle
A jaw or toggle crusher consists of a set of vertical jaws, one jaw being fixed and the other being
moved back and forth relative to it by a cam or pitman mechanism. The jaws are farther apart at the top than at the bottom,forming a tapered chute so that the material is crushed progressively smaller and smaller as it travels downward until it is small enough to escape from the bottom opening. The movement of the jaw can be quite small, since complete crushing is not performed in one stroke.
moved back and forth relative to it by a cam or pitman mechanism. The jaws are farther apart at the top than at the bottom,forming a tapered chute so that the material is crushed progressively smaller and smaller as it travels downward until it is small enough to escape from the bottom opening. The movement of the jaw can be quite small, since complete crushing is not performed in one stroke.


Model | Max. Input Size (mm) | Adjustment Range (mm) | Capacity (t/h) | Shaft Speed (r/min) | Motor Power (kw) | Overall Dimensions (mm) | Weight (kg) |
PE150*250 | 125 | 10-40 | 1-3 | 285 | 5.5 | 922*745*933 | 750 |
PE200*300 | 165 | 15-50 | 2-8 | 265 | 7.5 | 1056*1100*1120 | 1100 |
PE250*400 | 210 | 20-60 | 5-20 | 300 | 15 | 1108*1142*1392 | 2900 |
PE400*600 | 340 | 40-90 | 25-64 | 280 | 30 | 1700*1732*1653 | 6900 |
PE500*750 | 425 | 50-100 | 34-68 | 275 | 55 | 2050*1860*2145 | 10500 |
PE600*900 | 480 | 65-160 | 56-192 | 250 | 75 | 2792*2168*2250 | 17500 |
PE750*1060 | 630 | 80-140 | 110-242 | 250 | 90 | 4180*2560*3070 | 27000 |
PE900*1200 | 750 | 100-200 | 158-256 | 250 | 110 | 5200*2900*3500 | 50000 |
PEX150*750 | 125 | 10-40 | 8-35 | 300 | 15 | 1220*1480*1180 | 3300 |
PEX250*1000 | 210 | 15-50 | 15-50 | 300 | 30 | 1580*1992*1380 | 7100 |
PEX250*1200 | 210 | 15-50 | 20-60 | 300 | 45 | 1730*2192*1380 | 8700 |
PEX300*1300 | 250 | 20-90 | 20-90 | 300 | 75 | 1930*2400*1747 | 11600 |
Jaw Crusher Main Features:
1. Model for the latest products, a wide range of applications, with a compact structure, long service life, and high work efficiency.
2. Adjustable for easy wear parts, Easy replacement of wear and spare parts.
3. High capacity, less costly and Easy to install.
4. The machine has a large crushing ratio, uniform product size, simple structure, convenient maintenance, can crush the compressive strength of a variety of materials is not more than 320 MPa, is the first choice for primary crushing equipment.
5. First-class technology, reliable pre-sale customer service quality. The products meet European CE certification standards.
1. Model for the latest products, a wide range of applications, with a compact structure, long service life, and high work efficiency.
2. Adjustable for easy wear parts, Easy replacement of wear and spare parts.
3. High capacity, less costly and Easy to install.
4. The machine has a large crushing ratio, uniform product size, simple structure, convenient maintenance, can crush the compressive strength of a variety of materials is not more than 320 MPa, is the first choice for primary crushing equipment.
5. First-class technology, reliable pre-sale customer service quality. The products meet European CE certification standards.
Packing and delivery
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.


Company Profile
Gongyi Hengchang Metallurgy Building Material Equipments plant was built in 1992, a professional manufacturer specializing in the production of coal slurry dryer, coal slime dryer , coal dryer ,sawdust dryer , fly ash dryer , slag dryer ,vinasse dryer and so on.
We have professional engineers and experienced workers in our factory, we ensure that we supply good quality and good price to our customers.
We have professional engineers and experienced workers in our factory, we ensure that we supply good quality and good price to our customers.

We have professional engineers and experienced workers in our factory, we ensure that we supply good quality and good price to our customers.
Our products as followings:
1. Bucket elevators: TD Belt type bucket elevator, TH round chain type bucket elevator, NE plate chain bucket elevator and Dehydrated bucket elevator.
Our products as followings:
1. Bucket elevators: TD Belt type bucket elevator, TH round chain type bucket elevator, NE plate chain bucket elevator and Dehydrated bucket elevator.
2. Screw conveyors: Pipe type screw conveyor, U-shape screw conveyor, shaftless screw conveyor and screw feeder.
3. Belt conveyors: Fixed belt conveyor, mobile belt conveyor, sidewall belt conveyor and light type belt conveyor.
3. Belt conveyors: Fixed belt conveyor, mobile belt conveyor, sidewall belt conveyor and light type belt conveyor.
4. Other products: Pan conveyor, Vibrating screen, Trommel screen air slide conveyor, vibrating feeder, rotary feeder and double shaft mixer etc.
5. Spare parts: Elevator bucket, conveyor chain, sprocket, conveyor belt, conveyor roller, feeder pan, motor, gearbox and bearing and etc.

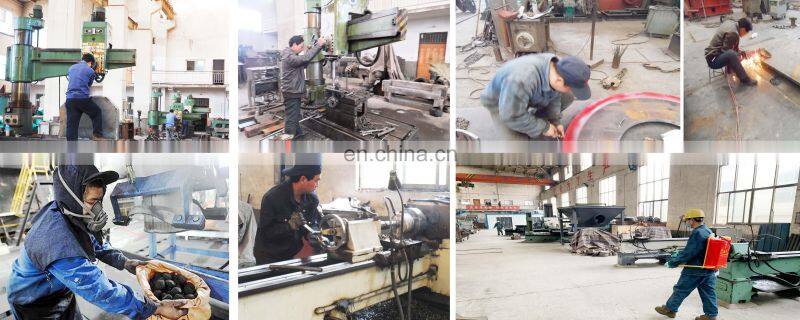

Our Workshop

Customer Visit & Our Service






I.Pre-sale services:
Act as a good adviser and assistant of clients, enable them to get rich and generous returns on their investments.
1. Select equipment model;
2. Design and manufacture products according to clients' special requirement;
3. Train technical personnel for clients;
II.Services during the sale:
Respect clients, devote ourselves to improving the total value of clients:
1.Pre-check and accept products ahead of delivery;
2 Help clients to draft solving plans;
III..After-sale services:
Provide considerate services to minimize clients' worries:
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3. Train the first-line operators;
4. Examine the equipment;
5. Take initiative to eliminate the troubles rapidly;
6. Provide perfect service;
FAQ
Q: Why we believe in Gongyi hengchang company?
A:
1. More than 28 years’ experience.
2.Hengtailong is the leading professional supplier of solution, equipment’s and service for crushing and grinding industry.
3.Products achieved ISO9001:2000 quality management certificate and EU CE certificate.
Q: Delivery time
A: The lead time is 10-20 days, Delivery time will vary depending on the type of the machine, shipping method selected and part availability.
Q: Payment terms
A: Accepted Payment Type: T/T, L/C, Western Union, Cash and so on.
After sign the contract, pay the 10%-30% deposit of total purchase price and pay the full payment before delivery.
Q: what will you do if the machine is broken down?
A: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.
Q: What should i do if I want to get a best quotation?
A: If you want a suitable type for you, please let us know your material and capacity.
