Lab Crystallization Reactors Glass Chemical Reactor Prices
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Glass Type Double Layer Jacketed Photochemical Chemical Glass Reactor
-
Photochemical Lab Use Explosion-proof Glass Jacketed Quartz Reactor
-
Distillation Device Pharmaceutical Jcketed Glass Reactor
-
Pharmaceutical Lab Chemical Double Walled Glass Reactor
-
Laboratory Chemical Reaction Mini 5L Double Layer Jacketed Glass Reactor
-
Easy Operate Double Layer Jacketed Glass Reactor for Chemical Laboratory Use
Product Description
Product Description

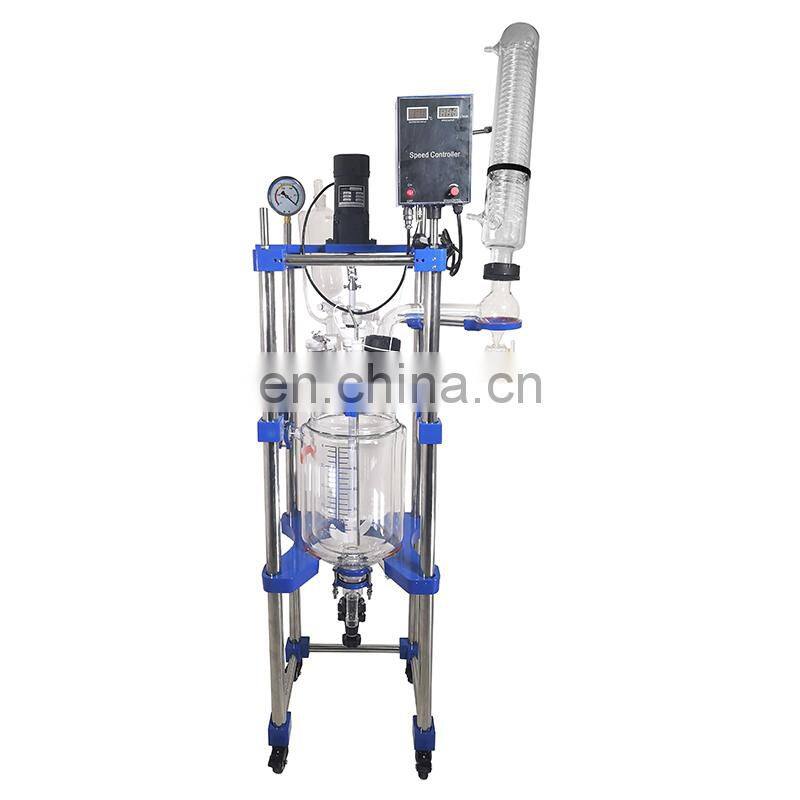

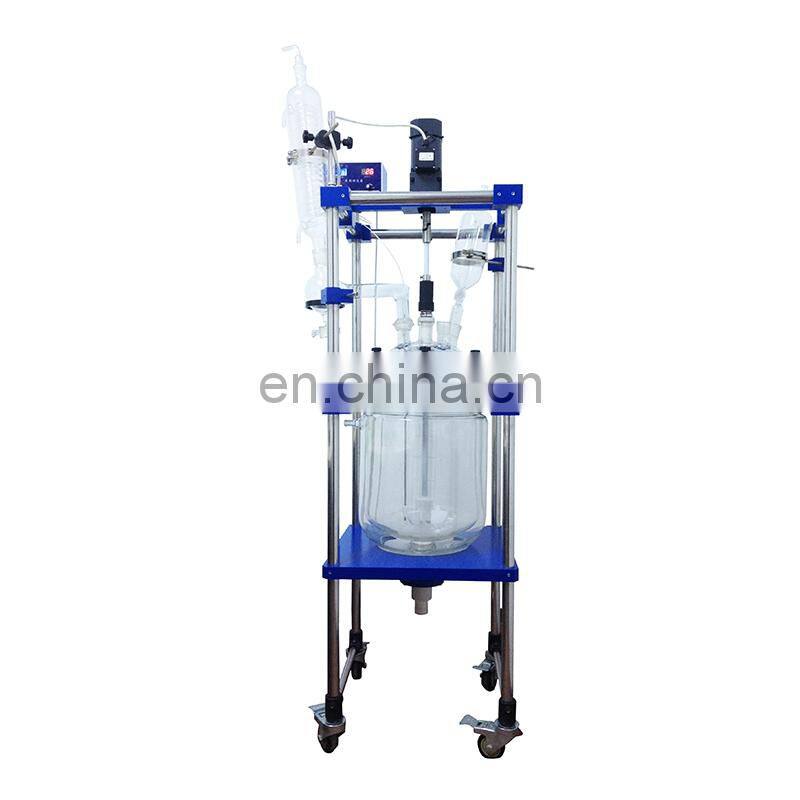

Lab Crystallization Reactors Glass Chemical Reactor Prices

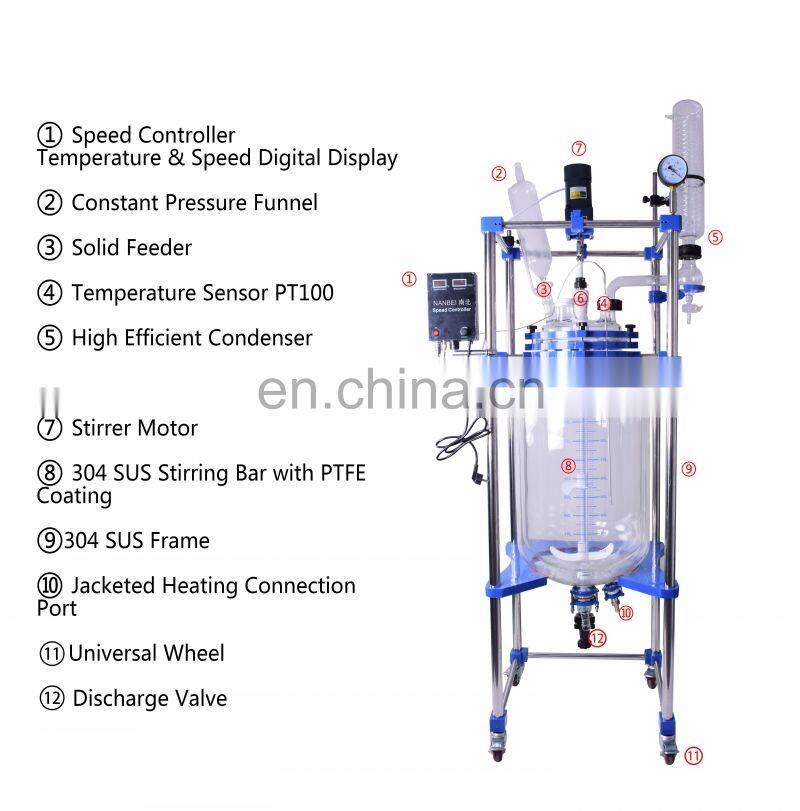

The kettle body is designed by double glazing glass reactor, the inner layer into the reaction solution to do the reaction was stirred interlayer can pass into the type of the cold heat source circulating heating or cooling the reaction can also be used in high temperature, low temperature, or vacuum experiment reflux and distillation of the reaction solution. It is the ideal equipment for primary and secondary schools of modern chemistry experiments, bio-pharmaceutical and synthesis of new materials.
Contact Us For More Details
Options

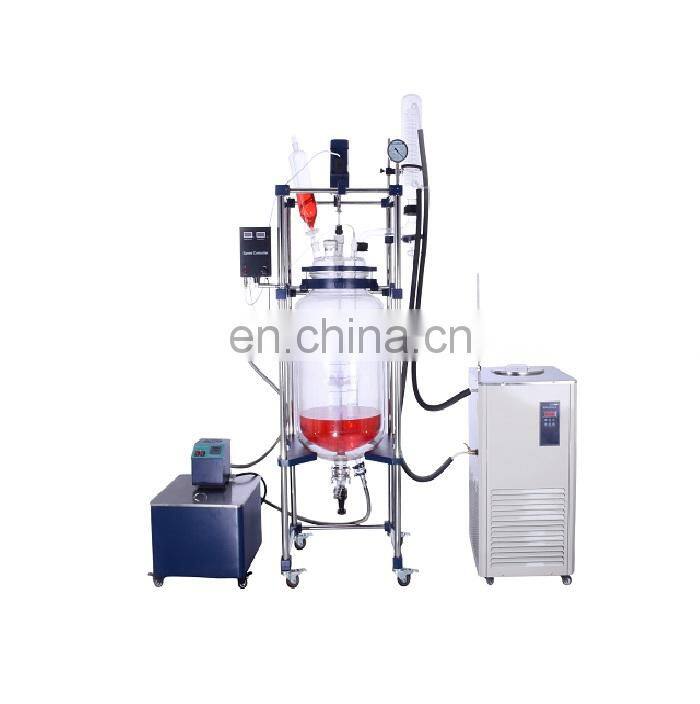

heating bath(left) and water chiller(right)
heating bath connects with the jacketed to do high teperature reaction,wanter chiller is used for cooling the condenser.if you want to do low tepmerature reaction,the water chiller can connect with the jacketed of the reator

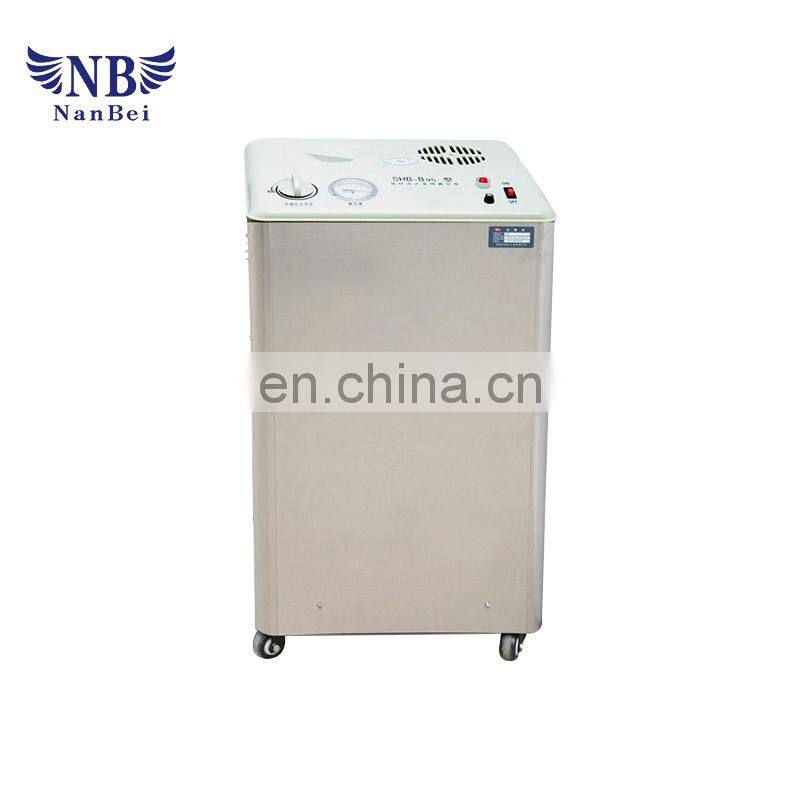

vaccum pump
The whole reaction should be under negative pressure, it can reduce boiling time and improve reaction efficiency.
Note:
You just need tell us the capacity of glass reactor do you want and the reaction temperature, we will recommend the suitable reactor and these supporting equipments
Specification
Model | NB-10L | NB-20L | NB-30L |
Glass Material | GG-17 | GG-17 | GG-17 |
Frame Material | 304 Stainless steel | 304 Stainless steel | 304 Stainless steel |
Fittings Material | 304 Stainless steel | 304 Stainless steel | 304 Stainless steel |
Moves | Brake Caster | Brake Caster | Brake Caster |
Reaction bottle capacity | 10L | 20L | 30L |
Jacketed Capacity | 6L | 8L | 10L |
Flanged out of the oil circulation port | Low feed high outlet | Low feed high outlet | Low feed high outlet |
Reaction bottle cover | Six port | Six port | Six port |
Discharger port distance to ground | 450mm | 450mm | 450mm |
Temp. range | -80-250℃ | -80-250℃ | -80-250℃ |
Vacuum degreee | 0.098Mpa | 0.098Mpa | 0.098Mpa |
Stirring speed | 0-450rpm | 0-450rpm | 0-450rpm |
Stirring diameter | 12mm | 12mm | 12mm |
Stirring power | 90W1/3 | 120W1/3 | 120W1/3 |
Coltage(V/Hz) | 220V/50Hz | 220V/50Hz | 220V/50Hz |
Dimension(mm) | 520*520*2000 | 560*560*2100 | 760*560*2300 |
Packing size(mm) | 1370*590*800 | 1480*660*810 | 1720*680*850 |
Packign weight（KG） | 68kg | 80kg | 88kg |
Related Products
Send An Inquiry To Get The Latest Price
Company Profile
FAQ
1.Why choose us?
We are the leading manufactuer in lab furniture and lab equipment, OEM & ODM service are offered. And we have our own overseas techinican and installation team.
2.How about the sample product?
We could send you the samples but the freight and the sample are charged.
3.How about delivery time?
Within 7-15 workdays after receiving deposit.
4.How about the package?
Bubble film + Cotton +Standard export wooden case.
5.How to inspect the goods?
Products will be checked by our QC staff frist, then our proejct manager. Client can come and check bythemselves or third party check is available.
