plant extracting chemical laboratory distillation stirring mixing jacketed glass reactor
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
China Lab double layer borosilicate jacket standard glass reactor
-
distillation device double wall biological chemical 1L 2L 3L 5L jacket glass reactor
-
laboratory 100L explosion proof continuous stirred tank double layer jacket glass reactor
-
10L lab chemical equipment continuous automatic stirred tank double layer jacket glass reactor
-
lab short path distillation device pyrex double layer stirred 20L glass reactor for chemical lab
-
pyrex single layer borosilicate chemical glass reactor with heating bath
Product Description
Product Description

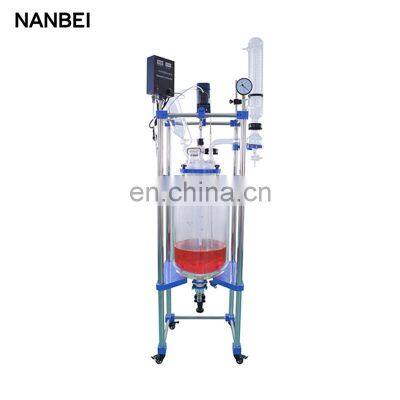

Jacketed glass reactor
Brief:
The kettle body is designed by double glazing glass reactor, the inner layer into the reaction solution to do the reaction was stirred interlayer can pass into the type of the cold heat source circulating heating or cooling the reaction can also be used in high temperature, low temperature, or vacuum experiment reflux and distillation of the reaction solution. It is the ideal equipment for primary and secondary schools of modern chemistry experiments, biopharmaceutical and synthesis of new materials.
Features:
1. A full set of glassware with GG3.3 borosilicate glass production with good chemical and physical properties
2. Limit temperature of 250°C for high temperature experiments, and limit temperature of -60°C for low temperature experiments.
3. Titanium ring, new titanium alloy mechanical seal, sealing 0.098Mpa.
4. The PT100 temperature, and is a liquid crystal display. More accurate temperature measurement and more convenient.
5. Frequency control, AC induction motor. Constant speed, brushless, no spark, security and stability, and continuous work.
6. Quality 304 stainless steel all-inclusive PTFE stirring rod and a three-bladed propeller structure.
7. The bottom flanged discharge port with a Teflon value, aluminum parts flange fixed container no dead ends.
Structure for Glass Reactor
Detailed images
Reaction cover including 6 port, using
for motor stirring, condenser,
PT100 temperature sensor, solid
adding,constant pressure funnel for
liquid adding, gas release.
PTFE Sealing.
stirrer bar
PTFE Stirrer Bar with Anchor Agitator
temperature sensor
PT100 Temperature sensor with high accuracy
Heating / cooling liquid circulating port for jacketed
Inclined discharge valve ,simple, safe and convenient
Specification
Model | NB-50L | NB-20L | NB-30L |
Glass Material | GG-17 | GG-17 | GG-17 |
Frame Material | 304 Stainless steel | 304 Stainless steel | 304 Stainless steel |
Fittings Material | 304 Stainless steel | 304 Stainless steel | 304 Stainless steel |
Moves | Brake Caster | Brake Caster | Brake Caster |
Reaction bottle capacity | 50L | 20L | 30L |
Jacketed Capacity | 12L | 8L | 10L |
Flanged out of the oil circulation port | Low feed high outlet | Low feed high outlet | Low feed high outlet |
Reaction bottle cover | Six port | Six port | Six port |
Discharger port distance to ground | 450mm | 450mm | 450mm |
Temp. range | -80-250℃ | -80-250℃ | -80-250℃ |
Vacuum degreee | 0.098Mpa | 0.098Mpa | 0.098Mpa |
Stirring speed | 0-450rpm | 0-450rpm | 0-450rpm |
Stirring diameter | 12mm | 12mm | 12mm |
Stirring power | 90W1/3 | 120W1/3 | 120W1/3 |
Coltage(V/Hz) | 220V/50Hz | 220V/50Hz | 220V/50Hz |
Dimension(mm) | 760*560*2450 | 560*560*2100 | 760*560*2300 |
Packing size(mm) | 1720*680*850 | 1480*660*810 | 1720*680*850 |
Packign weight（KG） | 92kg | 80kg | 88kg |
Recommend Products
Options
heating bath(left) and water chiller(right)
heating bath connects with the jacketed to do high teperature reaction,wanter chiller is used for cooling the condenser.if you want to do low tepmerature reaction,the water chiller can connect with the jacketed of the reator
vaccum pump
The whole reaction should be under negative pressure, it can reduce boiling time and improve reaction efficiency.
Note:
You just need tell us the capacity of glass reactor do you want and the reaction temperature, we will recommend the suitable reactor and these supporting equipments
Packing & Delivery
Company Profile
Customer Concerns
FAQ:
Q1: Why Choose NANBEI ?
(1).Professional manufacturer with more than 13 years experience
(2).Exported to more than 97% Countries
(3).Turnkey Solution is no problem
Q2:OEM,ODM acceptable or not?
Absolutely Yes
Q3:What's kind of Payment terms for customer choosing?
T/T ,Western Union, Money Gram , Credit Card, Paypal , L/C ...
Q4:Can we visit your factory online?
Absolutely no problem
Q5:Can online video inspection before shipment?
Absolutely no problem
Q6: what's the MOQ ? Sample order is OK?
MOQ:1 set, sample order is no problem
Q7:What's kind of shipment for customer choosing?
Usually ship by sea, by air, by international express .
We can also provide reasonable solutions according to your transportation requirements
Q8:How to ensure product quality and after-sales service?
We have CE, ISO quality certificate, and SGS authentication.
After-sale service:
1.Warranty : 1 year
2.We supply free part for quality problem in warranty
3.Long life technical support and service
