distillation device double wall biological chemical 1L 2L 3L 5L jacket glass reactor
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
laboratory 100L explosion proof continuous stirred tank double layer jacket glass reactor
-
10L lab chemical equipment continuous automatic stirred tank double layer jacket glass reactor
-
lab short path distillation device pyrex double layer stirred 20L glass reactor for chemical lab
-
pyrex single layer borosilicate chemical glass reactor with heating bath
-
Chinese laboratory distillation extraction electric stirring single layer chemical glass reactor
-
Chemical mixing pharmaceutical double layer jacketed automatic stirring glass reactor
Product Description
Product Description
Jacketed Glass Reactor
The double-layer glass reactor is mainly used for testing and production in the pharmaceutical, chemical, biological products and other industries. This product is under the vacuum negative pressure condition, using the principle of constant speed stirring to uniformly stir the raw materials, so that the material can fully react in the kettle body. The glass interlayer can be externally connected with high temperature circulation equipment to heat, evaporate, separate and recover the materials in the kettle.
Working Principle:
Under the vacuum negative pressure condition, the stirring rod is stirred at a constant speed by using the speed-regulating knob, so that the material is fully reacted in the kettle body, and the heating or cooling reaction of the material in the kettle is indirectly heated by the glass interlayer external heating or cooling device, and the reaction process is heated during the heating process. The resulting solvent vapor is rapidly cooled, distilled or refluxed via a cooling coil of a glass condenser. After the reaction is completed, the material can be quickly discharged through the oblique discharge valve.
The double-layer glass reactor has the main capacity of 1L, 2L, 3L, 5L, 10L, 20L, 30L, 50L,80L, 100L, all of which have the function of lower discharge. More than 10 liters are equipped with universal casters for easy movement and The temperature display function in the kettle.
Features:
1. A full set of glassware with GG3.3 borosilicate glass production with good chemical and physical properties
2. Limit temperature of 250°C for high temperature experiments, and limit temperature of -60°C for low temperature experiments.
3. Titanium ring, new titanium alloy mechanical seal, sealing 0.098Mpa.
4. The PT100 temperature, and is a liquid crystal display. More accurate temperature measurement and more convenient. 5. Frequency control, AC induction motor. Constant speed, brushless, no spark, security and stability, and continuous work. 6. Quality 304 stainless steel all-inclusive PTFE stirring rod and a three-bladed propeller structure.
7. The bottom flanged discharge port with a Teflon value, aluminum parts flange fixed container no dead ends.
More Details Photos
Specification
Model | NB-1L | NB-2L | NB-3L | NB-5L |
Glass Material | GG-17 | GG-17 | GG-17 | GG-17 |
Frame Material | 304 SUS | 304 SUS | 304 SUS | 304 SUS |
Reaction bottle capacity | 1L | 2L | 3L | 5L |
Jacketed Capacity | 0.4L | 0.5L | 0.6L | 0.8L |
Flanged out of the oil circulation port | Low feed high outlet | Low feed high outlet | Low feed high outlet | Low feed high outlet |
Reaction bottle cover | 5 | 5 | 5 | 5 |
Discharge port distance to ground | 30mm | 30mm | 30mm | 30mm |
Temp. range | -80-250℃ | -80-250℃ | -80-250℃ | -80-250℃ |
Vacuum degree | 0.098Mpa | 0.098Mpa | 0.098Mpa | 0.098Mpa |
Stirring speed | 0-800rpm | 0-800rpm | 0-800rpm | 0-800rpm |
Stirring diameter | 8mm | 8mm | 8mm | 8mm |
Stirring power | 40W | 40W | 90W | 90W |
Voltage(V/Hz) | 220V/50HZ | 220V/50HZ | 220V/50HZ | 220V/50HZ |
Dimension(mm) | 350*345*1000 | 350*345*1000 | 350*410*1250 | 350*410*1250 |
Plate size(mm) | 325*345 | 325*345 | 325*410 | 325*410 |
Packing size（mm） | 1200*480*400 | 1200*480*400 | 1380*500*400 | 1380*500*400 |
Packing weight（KG） | 32 | 32 | 38 | 38 |

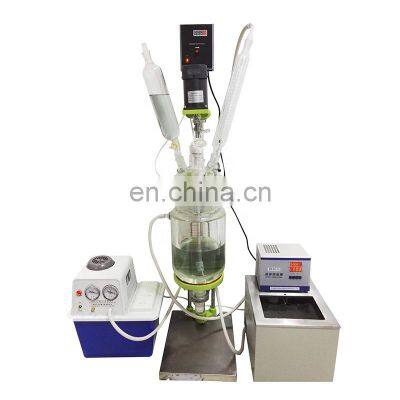

Jacketed glass reactor can be used together with the vacuum pump to improve the working efficiency; The kettle body interlayer can be equipped with heating, refrigeration equipment or high and low temperature circulation devices according to the material reaction requirements.
the cooling coil of the glass condenser can be used together with the water chiller to improve the recycling efficiency
