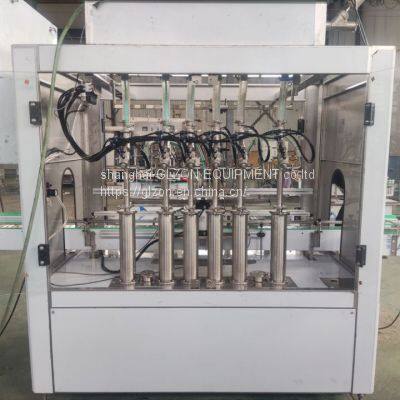

Automatic liquid filling machine equipment

Automatic liquid fertilizer packaging equipment, automatic liquid fertilizer filling machine, product information I. Automatic liquid fertilizer packaging equipment, automatic liquid fertilizer filling machine, product description: Automatic bag-feeding packaging machine and automatic liquid filling machine are suitable for automatic metering and packaging of various fluids, sauces and pastes, and can automatically complete the whole package process of feeding, metering, bag taking, filling, sealing, printing and counting, and are equipped with automatic material level control, anti-dripping and anti-drawing devices. This liquid fertilizer packaging machine is suitable for filling bagged liquid fertilizers in the range of 50~2500g g.

Product introduction

Series automatic liquid water-soluble fertilizer packaging machine is suitable for all kinds of liquid fertilizers, such as liquid water-soluble fertilizer and liquid foliar fertilizer, etc. It can automatically complete a complete set of automatic packaging processes, such as quantitative filling, folding and bag making, packaging and sealing, printing batch number, production date, adding easy tearing, cutting or connecting bags, product counting, etc. Pneumatic plunger pump volume measurement method is adopted, which is especially suitable for products and materials that are easy to draw and drip in sealed packaging. The packaging machine can package materials ranging from 500g to 10kg. The length of the bag can be adjusted arbitrarily. When you want to pack a variety of packaging specifications and the width of the bag is irregular, you can purchase multiple sets of shapers with different packaging specifications to match with different material delivery pumps according to the packaging specifications and weight of the bag. It can realize automatic quantitative filling and packaging of objects at high temperature, effectively improve production efficiency and avoid secondary pollution caused by bacterial invasion. This packaging production equipment condenses our company's successful technical experience in the automatic packaging industry for many years, draws on the valuable opinions and suggestions of a large number of users, and constantly improves, updates and batch produces the fully automatic sauce packaging production equipment that has reached the standard. The machine has the characteristics of high measurement accuracy, fast packaging speed, no sealing pollution, prevention of material filling and drawing, and beautiful bag shape.

Product structure and performance characteristics

1. Functions of this machine: conveying fluid and semi-fluid, bag forming, weight adjustment, vacuum sealing, cutting off, counting and other functions; It is an electromechanical system with dual cpu microcomputer control system and full Chinese display. It adopts microcomputer-controlled photoelectric tracking and correcting system, and is equipped with high-precision stepping motor to accurately locate the same position of each packaging bag pattern. The control system completes the synchronization, fixed length, positioning and speed of the whole machine, and automatically diagnoses faults. You can choose to install ribbon coding machine or steel seal coding device.

2. The appearance and molding parts of the whole machine are made of stainless steel, which is clean and hygienic, and meets the food hygiene standards;

3. The computer operating system adopts imported color touch screen control, digital humanized management, and is equipped with various advanced functions such as automatic shutdown and timely alarm for lack of materials and packaging materials, which makes the operation simpler and maintenance more convenient;

4. The control part is controlled by Mitsubishi PLC in Japan, with stable and reliable performance and self-checking prompt function;

5. The inlet 316 mirror pipe is used as the conveying pipeline, which can convey stuffing smoothly and stably. The pipeline is connected with a quick installation joint, which is quick and simple to disassemble and facilitate cleaning;

6. The advanced control program has been tested for a long time, so that the package weight error * can reach 6 ‰, far below the weight error standard stipulated by the state;

7. The feed pump can be selected from the original American all-imported or domestic 316 stainless steel pump, which is sturdy and durable, with high standard pressure, especially suitable for the transportation of high viscosity materials;

8. Electrical components are made of international brand products, with reliable quality and easy to purchase and replace by themselves;

9. The filling system of piston pump does not rotate or squeeze the stuffing, which does not damage the structure of the stuffing, cause the stuffing to change color, and has no influence on the taste and appearance;

10. The packaging capacity can reach more than 1.5 tons per hour, and automatic filling and sealing can be completed above 85℃ to avoid secondary pollution, improve work efficiency and reduce production cost;

11. A set of cleaning system is specially designed according to the characteristics of the pipeline, which is very convenient to clean the pipeline.

II. Automatic packaging equipment for liquid fertilizer Equipment of automatic filling machine for liquid fertilizer:

Liquid Bag-feeding Packaging Machine for Fertilizer This unit consists of storage tank, XY series automatic bag-feeding packaging machine, automatic liquid filling machine,

In addition, drip irrigation stirring, hot filling and explosion-proof filling equipment can be selected as required.

III. Automatic packaging equipment for liquid fertilizer Automatic filling machine for liquid fertilizer Product features: 1. The pump body is all stainless steel, which is environment-friendly and corrosion-resistant. 2. Volumetric measurement, stepless adjustable volume and accurate measurement. It is convenient to adjust the filling weight, precision and speed. 3. The printing batch number and other functions can be configured according to customer requirements. 4. Advanced microcomputer controller, stable performance, convenient adjustment and accurate detection.

5. Stepless speed regulation is adopted, and at the same time, different filling machines can be configured to package liquid paste and other items with different viscosity.

Need to know about purchase: because of the uncertainty of the model, material and specification of the product, the price of the goods marked on the website is not the actual price! The actual price needs to be determined after the customer communicates with the relevant personnel of our company.
