Product Description

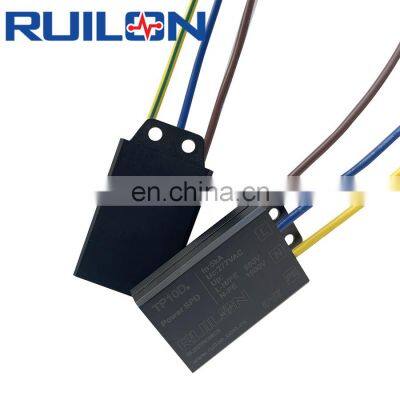

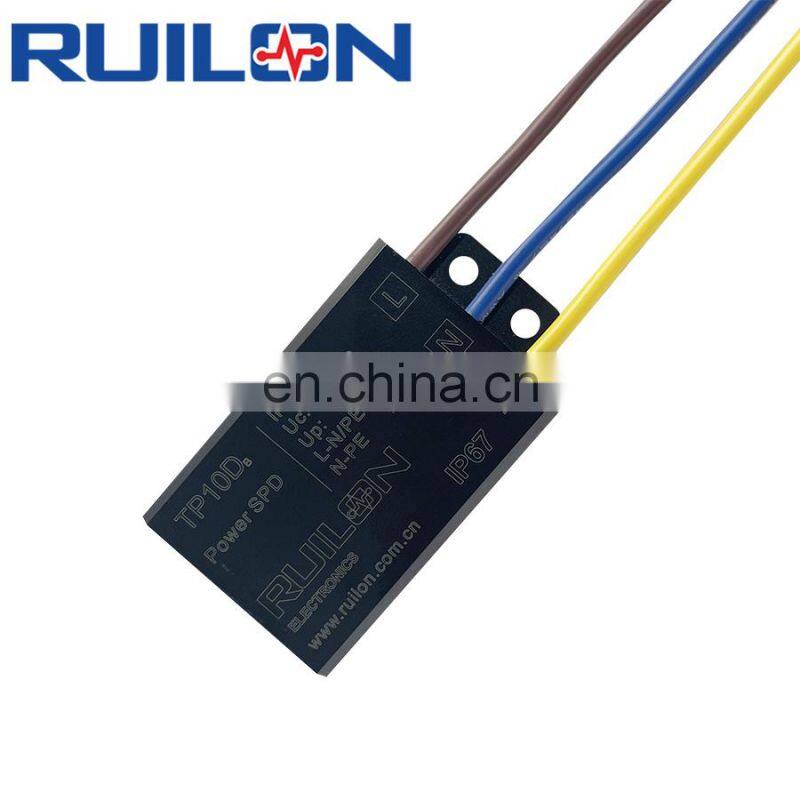

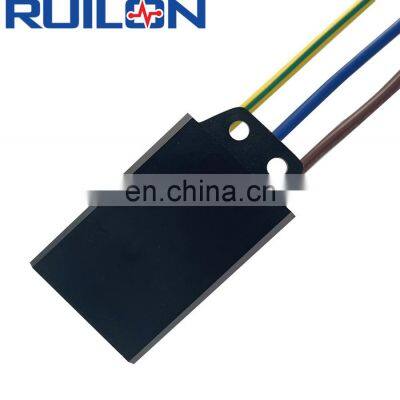

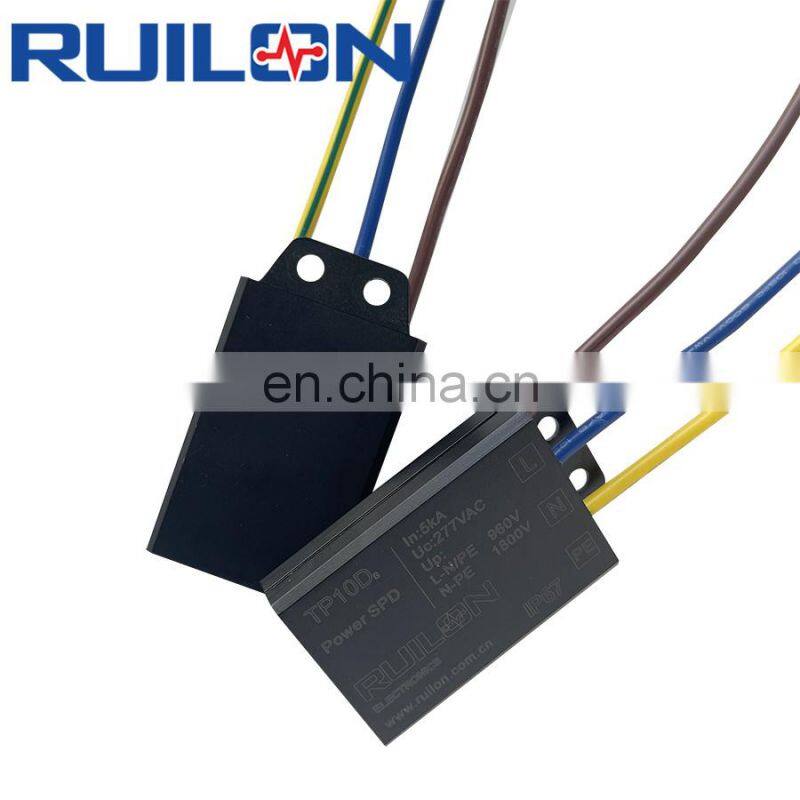

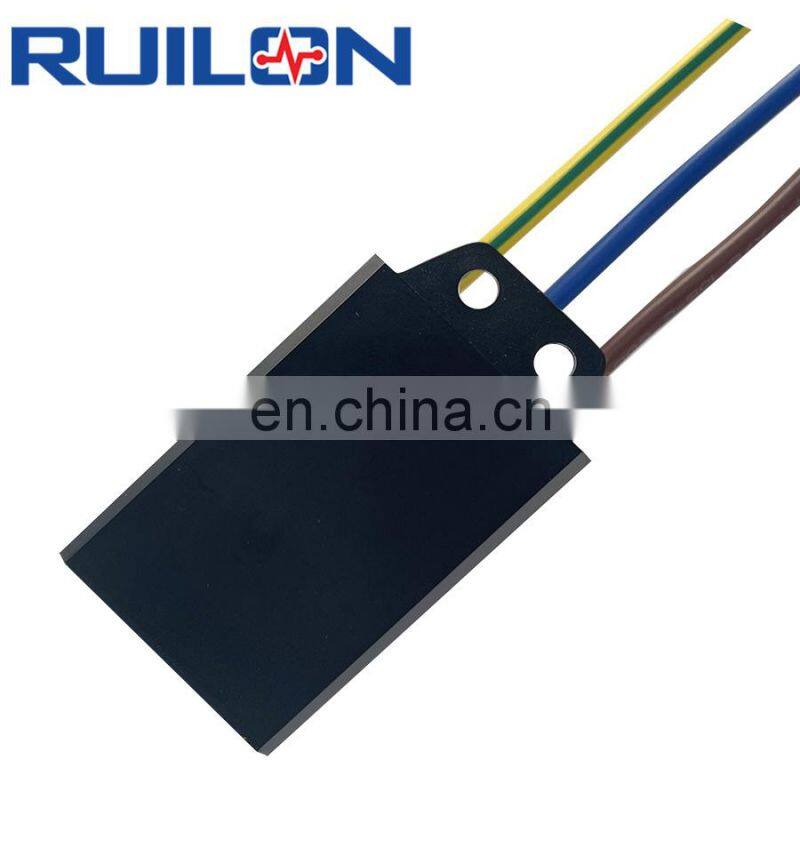

Surge Protective Device for LED Commercial Light Driver Power Surge Protector 10kA 20kV
TP10DB is a power surge protector; it is used for surge protection of commercial lighting power sources such as street lighting (ClassI, ClassII) landscape lighting, and surge protection for power ports such as security, electrical appliances, and sockets. TP10DB has a fully sealed enclosure that is fire, water, dust and IP67 rated.
The lightning protection device adopts full mode protection, adopts UVT technology, and has leakage currentand freewheeling interruption function. The product is small and comes with L, N and PE cables for easy installation and application. The product's maximum protection lightning current is 10kA, which can withstand 10kV surge voltage shock.
| Product name | Power surge protector |
| Rated operating voltage | 277VAC |
| Max. Continuous Voltage | 277VAC |
| Norminal discharge current(8/20μs)(In) | 5kA |
| Max. discharge current(8/20μs) (Imax) | 10kA |
| Nominal discharge voltage (1.2/50μs) (Vn) | 10kV |
| Enclosure material | ABS765A(94V0) |
| Operating temperature range | -40~80 ℃ |
| Ingress Protection | IP67 |
| Size | 60*34.5*13.85 mm |
Note:
1. Rated operating voltage: The normal AC mains voltage rating assigned by the manufacturer to the SPD (cited from Ul1449).
2. Max. continuous voltage: The maximum rms voltage that can be continuously applied to the SPD (cited from IEC61643-11).
3. Nominal discharge current: The current peak selected by the manufacturer. With SPD, the current waveform is 8/20μs, and the SPD remains functional after 15 surges (from UL1449).
4. Maximum discharge current: The peak value of the SPD current flowing through the 8/20 waveform and the manufacturer's claimed amplitude. Belongs to the T2 test type (quoted from IEC61643-11).
