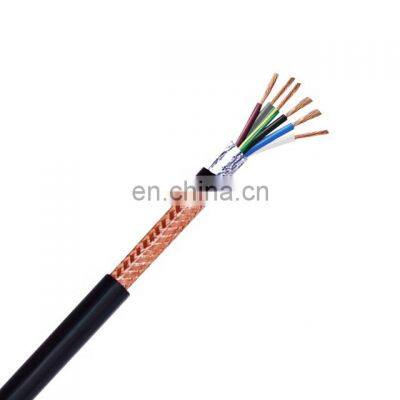

High Quality 300 300V Flexible Cable 6X1.0Mm Pvc Wire Signal Control Cable

product name:

PVC Shielded wire (300/300V)

Model specification:

RVVP 6*1.0 (168 series)

Product Standards:

(REF) JB/T 8734.5-2016

conductor:

32/0.2 BC (OFC oxygen-free copper), soft conductor stranded structure, suitable for mobile use in general occasions;

insulation:

New PVC material, ID2.6, 5-core white (printed number 1-5) + two-color (ground wire), convenient for wiring installation and identification;

Cable:

6 cores and center non-hygroscopic material stranded, wrapped with waterproof PET tape;

shield:

Aluminum foil 100% shielding + braided copper mesh 168/0.1 BC, double-layer shielding structure, strong anti-interference ability;

jacket:

Black PVC new material, OD10.7, semi-extrusion structure, providing the best protection performance;

Logo:

Printed meters to ensure the length, easy to cut and measure when using;

package:

100 meters/roll

Product Usage:

The power signal control transmission cable for equipment connection is used to connect the equipment to the operation panel and transmit signals;

Access control video intercom cable | Credit card machine signal connection cable;

Floor control cable, ladder control cable, audio cable...

size:

38*38*15cm

weight:

17.8KG

RVVP Other series:

RVVP2*0.2/4*0.2/2*0.3/2*0.5/2*0.75/2*1.0/2*1.5/3*0.3/3*0.5/3*0.75/3*1.0/3*1.5/4*0.15/4*0.3/4*0.5/4*0.75/4*1.0/5*0.15/5*0.3/5*0.5/5*1.0/6*0.15/6*0.3/6*0.5/6*1.0/8*0.15/8*0.3/8*0.5/12*0.5/16*0.5/6*0.75/7*0.5/8*1.5/10*0.75/12*0.75/20*0.5
