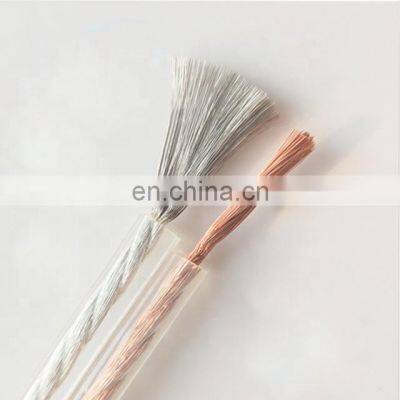

200 High-Fidelity Audio Cable Audio Signal Transmission Cinema Hotel Showroom Audio Connection Cable

Product name:

200 high-fidelity audio cable

Model specification:

RVB 2*60/0.12

Product Standards:

Q/AXD 00201-2018

Conductor:

20/0.12*3 BC/TC, 4N-grade OFC oxygen-free copper|Red copper, bare copper on one side and tinned copper on the other;

Insulation:

LDPE, a non-polar molecular transparent material, direct contact with copper conductors will not cause defects such as oxidation and blackening, and has excellent electrical properties;

Jacket:

Transparent PVC two-core insulation is extruded in parallel, dimensions (thickness x width): 3.5x7.4;

Logo:

The meter is printed to ensure that the length is accurate, which is convenient for measuring and cutting during construction;

Package:

80 meters

size:

12*12*8cm

Product manual:

The conductor adopts bundle twisting and twisting process, with uniform structure and good flexibility, which is conducive to the transmission of sound quality;

Imported transparent PE material is used as the insulation layer to prevent the conductor from discoloring and ensure the long service life of the cable;

The sheath is made of transparent PVC, which can clearly observe the cable structure, showing that the finished cable is gold on one side and silver on the other, which is in cable with the titles of "gold and silver wire" and "transparent wire" on the market.

The marking on the thread body adopts the printing meter, the length is accurate, and it is convenient to cut when using.

Reasonable design, simple and elegant, cost-effective;

Product series 100 high | 200 high | 300 high | 400 high | 500 high | 600 high, please choose according to actual needs

Product use:

2.1|5.1|7.1|The panoramic sound system connects the power amplifier and the surround speakers, and transmits the audio signal amplified by the power amplifier, which is suitable for the audio signal transmission of home, office, and background music systems.

RVB Other series:

RVB 2*60/0.08; 2*100/0.08; 2*36/0.12; 2*60/0.12; 2*84/0.12; 2*96/0.12; 2*126/0.12; 2*192/0.12; | 2*0.5; 2*0.75; 2*1.0; 2*1.5; 2*2.0; 2*2.5; 2*3.0; 2*4; 2*6.0; | 2C*1.0; 2C*1.5; 2C*2.5; 2C*0.5; 2C*0.75
