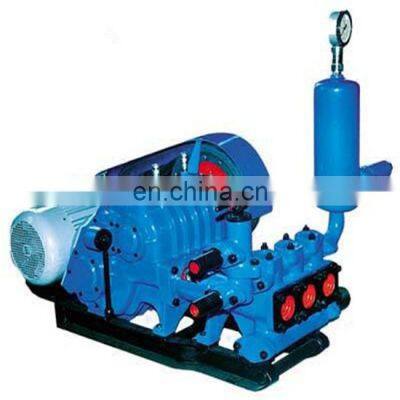

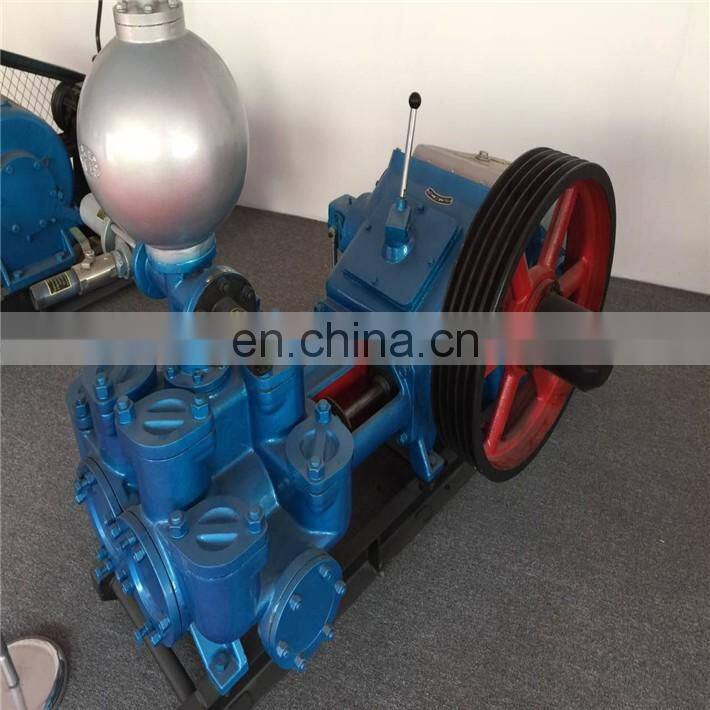

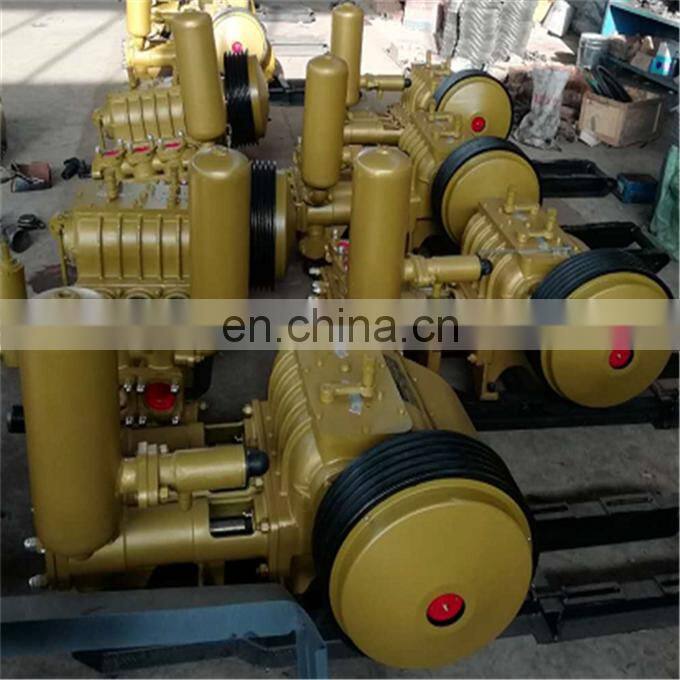

Drill Mud Pump BW160 BW250 BW320 BW600 BW850 Mud Pump

Mud pump price

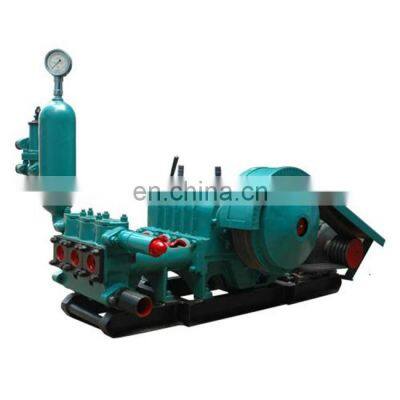

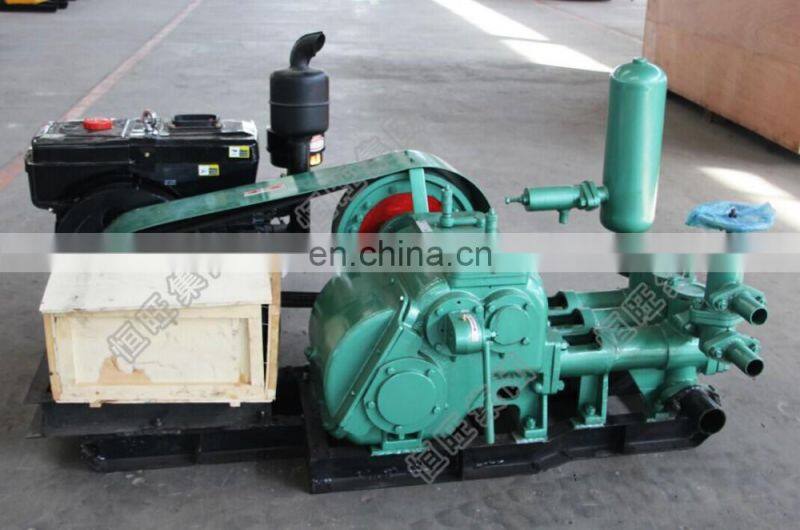

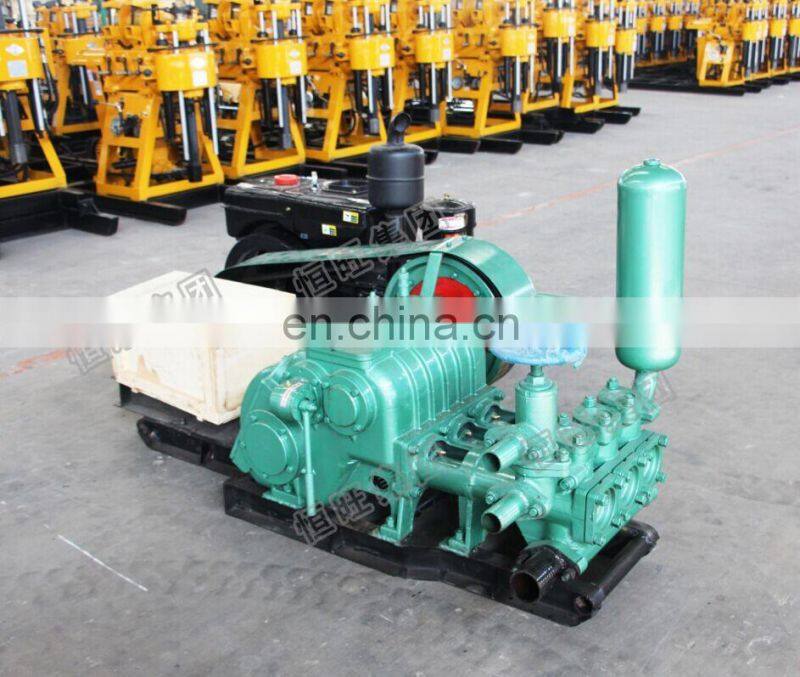

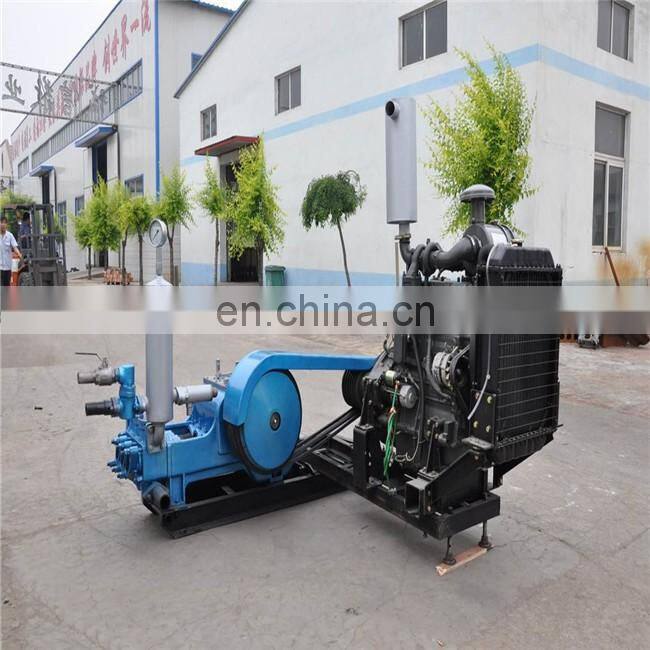

1. A horizontal, triplex, single acting reciprocation piston pump. The pump can choose diesel motor
power, It has simple operation, convenient, can achieve close range or remote control.
2. This pump is a compact structure, smooth operation, high output pressure, longer life expectancy,
stable performance, good general and so on.
3. This pump adopts the car transmission,Can get six different discharge and pressure,Reasonable
configuration parameters selection,The construction technology can satisfy different requirements.
4. Mainly used drilling fluid in supply for 2000m about core drilling coal field geology,metallurgy
geology,hydrogeololgy,drilling fluid can use mud and water, the coal water etc.

Model:BW-160/10 mud pump

Cylinder diameter(mm):70
Stroke(mm):70
Quick(I) Quick(II) Slow(I) Slow(II)
Pump speed(min-1): 200 132 83 55
Flow(l/min): 160 107 67 44
Pressure(Mpa): 2.5 4 6.5 10
Volume efficiency(%):100
Total efficiency(%):75
Input torque(Nm):150

Model :BW250 mud pump

Max.Flow:250L/min
Max.Pressure:7Mpa
Input Power:15KW
Suction Pipe Diameter:76mm
Discharge Pipe Diameter:51mm
Overall Dimension(mm):1100x995x650
Weight:760kg

Model:BW320 mud pump

Stroke (mm):1100
Cylinder diameter (mm):80
Pump speed (times/min): 214 153 109 78
Flow (l/min): 320 230 165 118
Pressure (Mpa): 2.2 3.6 6.2 10
Power (Kw):30
Shape size (mm):1905*1100*1200
Weight (kg): 720

Model No.: BW850 mud pump

Cylinder diameter:150 mm
Piston Stroke:180 mm
Number of Strokes: 82, 58 Num./min
Displacement: 850, 600 litre/min
Pressure: 2.0, 3.0 mpa
Speed of V-Belt wheel: 470 rpm
Power input:40/54 kW (hp)
Overall dimensions (LxWxH):2000 x 1030 x 1400 mm
Weight:1450 kg
