Air DTH Water Well Bore Hole Drilling Rig DTH Portable Borehole Water Well Drilling Machine Rigs
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
400m Truck Mounted Boring Borehole Water Well Drilling Rig Price
-
600mm Portable Water Well Drilling Rig Rock Bore Drilling Machine
-
2020 HengWang Pile Driver Machine/Foundation Construction Equipment/ Solar Pile Driver
-
2020 Pile Driver for Sale Solar Pile Driver
-
Medium Excavator Loader Multi-function Loader Attachment Pile Driver Drilling Machine for Sale
-
Solar Farm Highway Guardrail Post Installation Safety Barrier Road Fence Pile Driver Machine Photovoltaic
Product Description

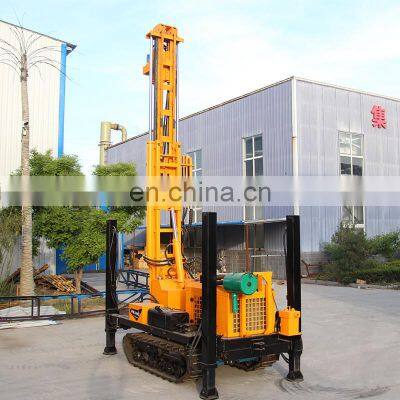

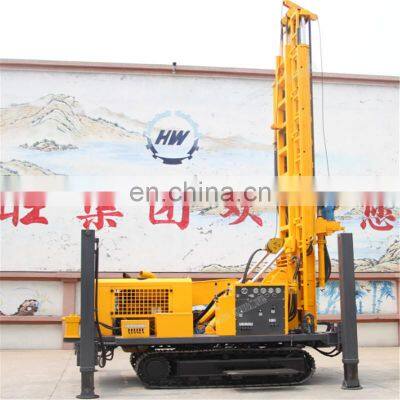

Air DTH water well bore hole drilling rig DTH portable borehole water well drilling machine rigs
Our pneumatic water well drilling rig machine for sale, is a kind of top driven high efficiency and multifunctional hydraulic drilling rig with advanced technology, convenient operation, high working efficiency, reliability and durability. It is widely used in drilling wells, inspection wells, precipitation wells, rescue wells, Ground source air conditioning holes, CBM, natural gas, oil extraction and other projects. this machine can drill holes with air compresse in all formations , the drilling speed is very fast when drill the hard rock , which hardness is f=4-20.
400 Meter Crawler Pneumatic Rotary Water Well Drilling Rig Machine Prices Parameter
| Model | HWZ150L | HWZ180L | HWZ260L | HWZ300L | HWZ400L | HWZ500L |
| Overall weight (T) | 3.5 | 4.2 | 6.4 | 8 | 8.7 | 9.5 |
| Dimension (mm ) | 3400*1500*2400 | 3800*1700*2350 | 4100*1900*2600 | 5500*1950*2780 | 5300*2050*2700 | 5350*2100*2700 |
| Drilling diameter(mm ) | 130-219 | 130-294 | 140-300 | 140-325 | 130-400 | 140-400 |
| Drilling depth(m) | 150 | 180 | 260 | 300 | 400 | 500 |
| One-time advance length of the drill(mm) | 3000 | 3000 | 3000 | 3000/6000 | 3000/6000 | 3000/6000 |
| Traveling speed(km/h ) | 2.5 | 2.5 | 2.5 | 2.5 | 6 | 6 |
| Climbing ability(max ) | 25 | 30 | 30 | 30 | 25 | 25 |
| Minimum Ground Clearance(mm) | 250 | 250 | 250 | 230 | 300 | 350 |
| Working Air Pressure(mpa ) | 1.45 - 2.5 | 1.7-2.5 | 1.7-3.0 | 1.7-3.3 | 1.7-3.5 | 1.7-3.5 |
| Air consumption | 15 - 27 | 15-27 | 17-35 | 23 | 17-35 | 17-35 |
| Main machine power(kw) | 42 /Yunnei | 60/ Yunnei | 85/Yuchai | 92/Yuchai | 100/6 cylinder | 114/6 cylinder |
| Rotary Speed (rpm) | 38 - 80 | 48 - 70 | 40-70 | 55-115 | 45-75 | 45 - 75 |
| Rotary torque(Nm ) | 4000-5000 | 4200-5600 | 7000-9000 | 8500-10000 | 9000-10000 | 9500-10000 |
