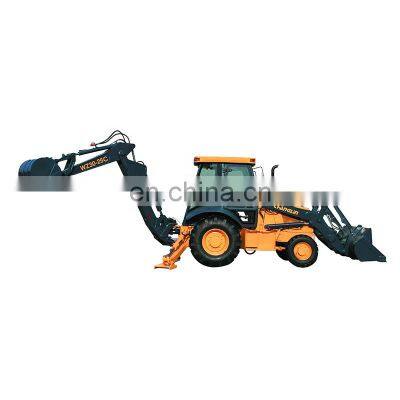

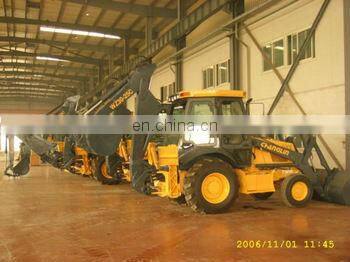

CHANGLIN Small 8 Ton Backhoe Loader 620CH for Sale 630A WZ30-25

Overall Dimension of Backhoe Loader

1

Length(with bucket on ground)

5835(mm)

2

Width (at landing leg)

2240(mm)

3

Width(to the outside of the tire)

1993(front wheel) 2057mm(rear wheel)

4

Bucket width

2313(mm)

5

Height (to the top of the cab)

2720(mm)

6

Height (to the top of the digging arm)

3548(mm)

7

Wheelbase

2155.5(mm)

8

Back wheel tread

1700(mm)

9

Front wheel tread

1880(mm)

10

Min. ground clearance

355(mm) for 2WD 275(mm) for 4WD

11

Min. ground clearance of tail

350(landing leg), 520(centre)

12

Traveling speed (4 forward and 4 reverse gears)

(1) I gear forward/reverse

6/6(km/h)

(2) II gear forward/reverse

9.6/9.6(km/h)

(3) III gear forward/reverse

20.5/20.5(km/h)

(4) IV gear forward/reverse

38/38(km/h)

Main Loading Technical Specification of Backhoe Loader

1

Rated loading capacity

1700kg(standard bucket)

2

Operating weight

8000kg(standard bucket)

3

Rated bucket lifting capacity

>34KN

4

Bucket capacity

1.0m³(standard bucket)

5

Max. breakout force

>49kN(swinging arm), 60(bucket)

6

Max. dumping clearance

2714mm(standard bucket)

7

Max. dumping reach

845mm(standard bucket)

8

Dumping angle at full height

43.5º(standard bucket)

9

Tilting angle of bucket

On ground

41°

For transportation

41.7° (350)

10

Max. digging depth (with bucket bottom horizontal)

80mm

11

Min. turning radius (centre of the tire outside)

4380mm

12

Lifting time of loading bucket

≤4.5(sec.)

13

Lowering time of loading bucket

≤3.5(sec.)

14

Dumping time

≤1.5(sec.)

Main Digging Technical Specification of Backhoe Loader

1

Rated digging bucket capacity

0.2(m³)

2

Max. digging depth

4405(mm)

3

Max. digging force

>56.1±10%kN(bucket lip)

4

Max. digging radius

5390(mm)

5

Max. dumping height

3510(mm)

6

Central offset

550mm

7

Swing angle

180°

8

Max. rollback angle of digging bucket

201°
