HBXG 140HP 4.5m3 Blade Capacity Tracked Dozer T140-1 for Sale
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Shanghai Pengpu Shantui 220hp Crawler Dozer SD22/PD220Y-1 for Sale
-
Hot Sale Hydraulic Crawler Excavator 350LVS With Spare Parts for Maintenance
-
XGMA 5ton Wheel Loader Front End Loader XG955H
-
SINOMACH Hydraulic Crawler Excavator ZG3365LC-9C With Cheap Price
-
SINOMACH 21ton Medium-size Crawler Excavator ZG3210-9C Suitable for Mining
-
New 15000kg Hydraulic Crawler Excavator Digger XE150D Hot Sale
Product Description

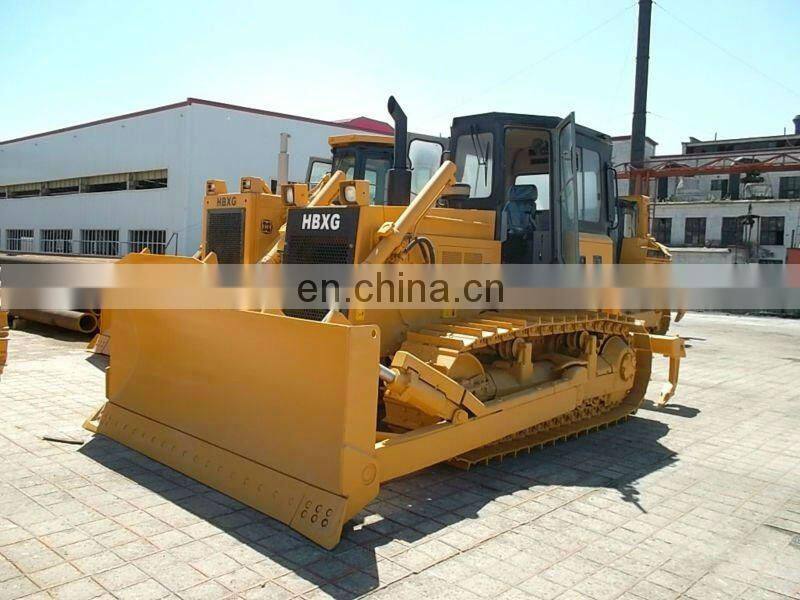

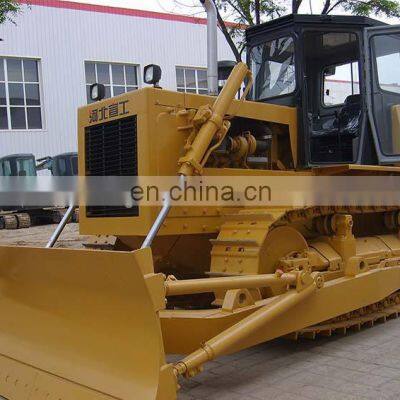

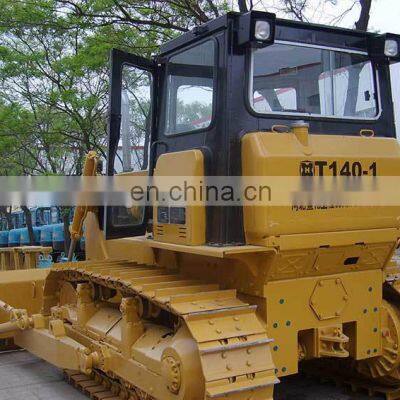

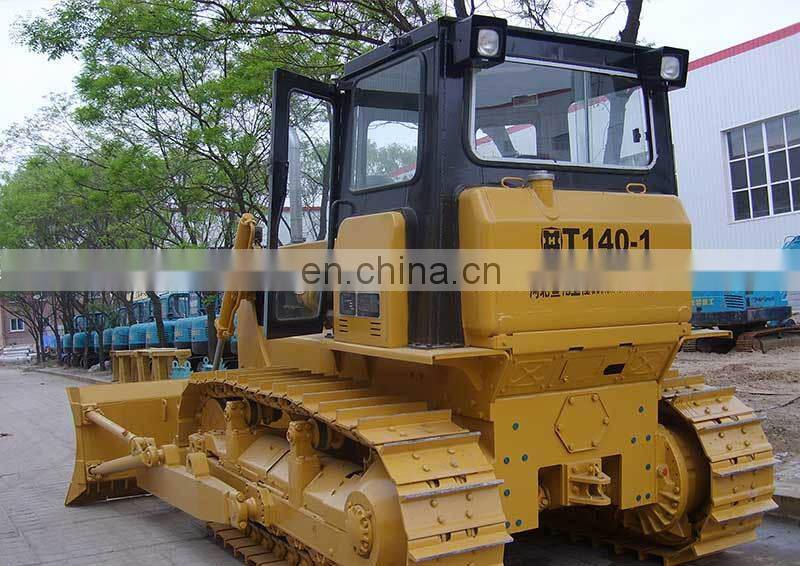

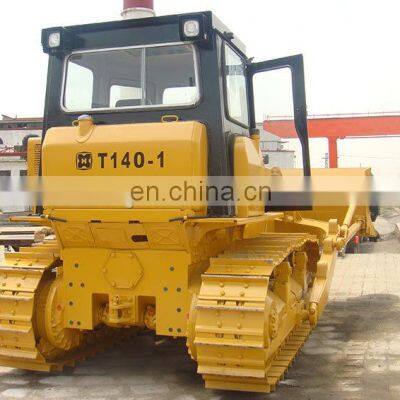

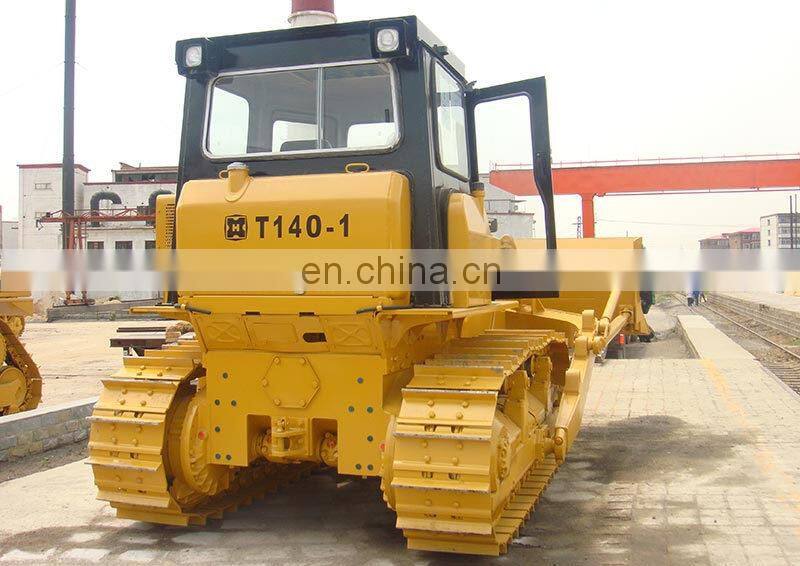

HBXG 140HP 4.5m3 blade capacity bulldozer T140-1 tracked dozer for sale
Product Description
It has characteristic of semi-rigid suspension, mechanical drive.
The main clutch is hydraulic boosted. With hydraulic pilot controlled, electric monitoring, good appearance, it is widely used in road building,
hydro-electric construction, field modification, port and mine development and other construction.
T140-1 Bulldozer Specifications:
| NO. | item | Parameter |
| 1 | Dozer | Tilt |
| 2 | Operation weight not include repper |
16500kg |
| 3 | Ground pressure | 65kPa |
| 4 | Track gauge | 1880mm |
| 5 | Gradient | 30/25 |
| 6 | Min. ground clearance | 400mm |
| 7 | Dozing capacity | 4.5m3 |
| 8 | Blade width | 3297mm |
| 9 | Max Digging depth | 320mm |
| 10 | Overall dimensions | 5486*3267*2842mm |
T140-1 Bulldozer engine:
| NO. | item | Parameter |
| 1 | Type | Weichai WD10G156E15 |
| 2 | Rated revolution | 1850rpm |
| 3 | Flywheel power | 104/140kw/hp |
| 4 | Max. torque | 830/1100N.M/RPM |
| 5 | Rated fuel consumption | less 218g/kw.h |
T140-1 Bulldozer undercarriage system:
| NO. | item | Parameter |
| 1 | Type | Swing type of sprayed beam Suspended structure of equalizer bar |
| 2 | Number of track rollers (each side) | 6 |
| 3 | Number of carrier rollers (each side) | 2 |
| 4 | Pitch | 203mm |
| 5 | Width of shoe | 500mm |
T140-1 Bulldozer undercarriage system:
| NO. | item | Parameter |
| 1 | Forward | 0-2.52 km/h (1st) 0-3.55 km/h (2st) 0-5.68 km/h (3st) 0-7.53 km/h (4st) 0-10.61 km/h (5st) |
| 2 | Backward | 0-3.53 km/h (1st) 0-4.96 km/h (2st) 0-7.94 km/h (3st) 0-10.53 km/h (4st) |
T140-1 Bulldozer implement hydraulic system:
| NO. | item | Parameter |
| 1 | Max systme pressure | 12mpa |
| 2 | Pump type | Two groups gears pump |
| 3 | System output | 180L/min |
T140-1 Bulldozer Driving system:
| NO. | item | Parameter |
| 1 | Main clutch | Nomally opened wet type, hydraulic booster control |
| 2 | Transmission | Normally meshed helical gear drive, coupling sleeve shift and two lever operation, the transmission has five forward and four backward speeds. |
| 3 | Steering clutch | Multiple-disc oil power metallurgy disc compressed by spring, hydraulic operated |
| 4 | Braking clutch | Brake is oil two direction floating band brake operated by mechanical foot pedal |
| 5 | Final drive | The final drive are double reduction with spur gear and segment sprocket,which are sealed by duo-cone seal. |
