SHANTUI SD60 Bulldozer 1186-93-06000 Guardrail1186-93-22000 1189-82-05000

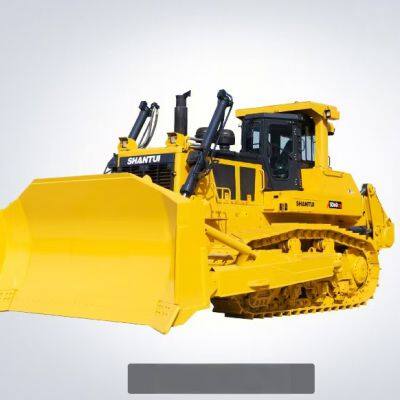

Shantui SD60 Bulldozer Specifications

- Basic Parameters: Overall dimensions (L×W×H) are 10390×4690×4370mm, with an operating weight of 70630kg and a ground pressure of 130.2kPa. The track center distance is 2500mm, track shoe width is 610/710mm, and track contact length is 3840mm. It has a fuel tank capacity of 1150L and a working hydraulic oil tank capacity of 164L.

- Power System: Equipped with a Cummins QSK19 electronic control engine, delivering a rated power of 562kW at 2100rpm. It features an advanced Modular Common Rail System (MCRS), meeting China National IV emission standards. Additionally, it adopts a Cyclone dual pre-filter air intake system to effectively prevent early engine failures.

- Operating Performance: Equipped with a high-pressure hydraulic system with a system pressure of 21MPa, ensuring excellent fine operation performance. The work equipment is controlled by a pilot single lever, and the travel is controlled by an electronic single lever, enabling the "manual-automatic integrated fingertip shifting" function.

- Work Equipment: Standardly equipped with an 18.9m3 semi-U blade, which has a large capacity and is constructed with a high-strength box-type structure and high-performance wear-resistant materials. The rear is fitted with a giant single-tooth ripper, featuring super strong penetration, suitable for rock stripping, with a ripping depth of up to 1435mm.

- Driving Environment: Adopts a high-strength seven-sided cab with a large space, wide field of view, and good airtightness. It is equipped with a high-power heating and cooling air conditioner, standard high-end luxury interior, and a luxury air-suspended heated seat, providing strong shock absorption and excellent comfort.

- Chassis System: Utilizes a K-type suspension design for track rollers, with a floating travel function that reduces rigid impact on the entire machine, increases the ground contact area under complex working conditions, and ensures strong road adaptability and good traction performance. Moreover, it adopts a temperature-controlled fan system that intelligently adjusts the fan speed to improve fuel economy.
