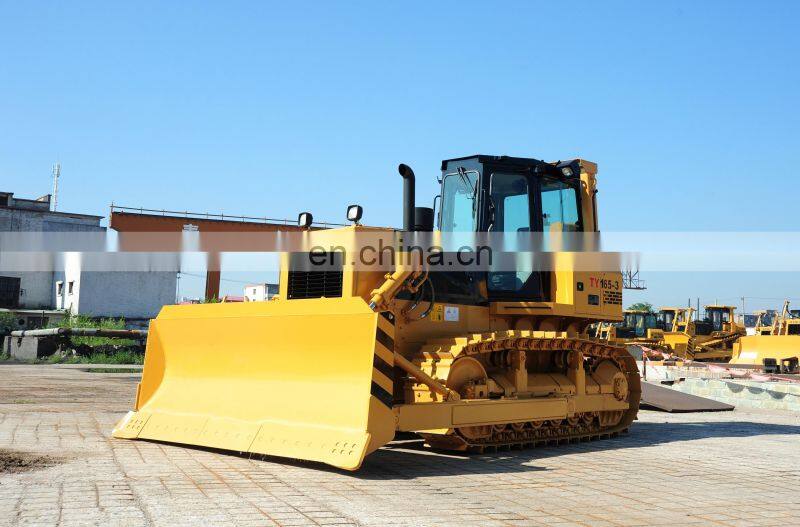

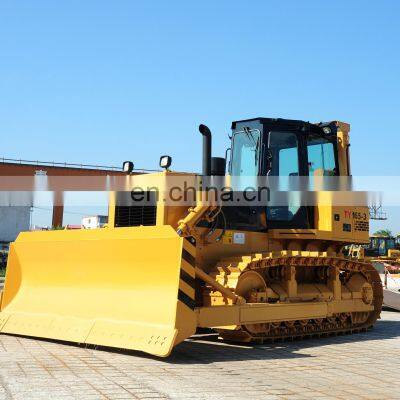

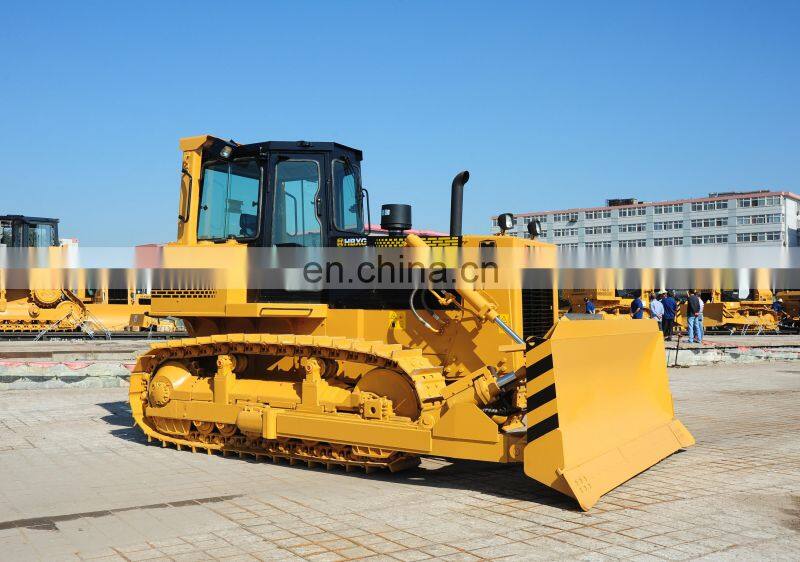

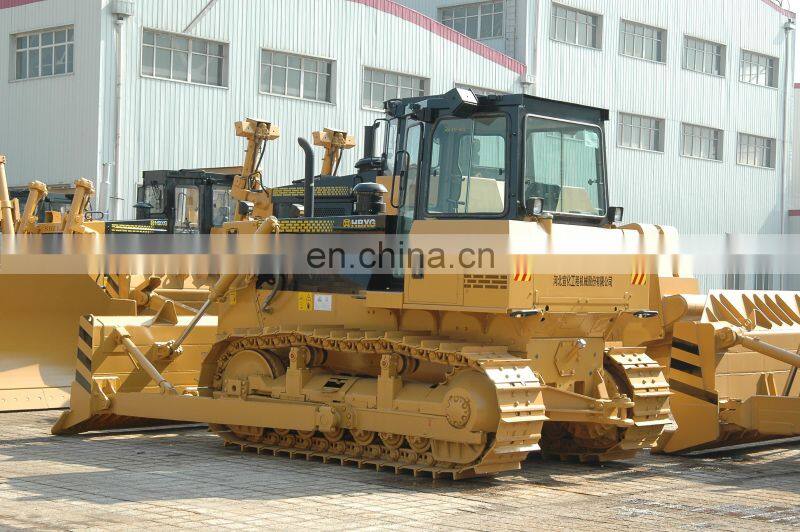

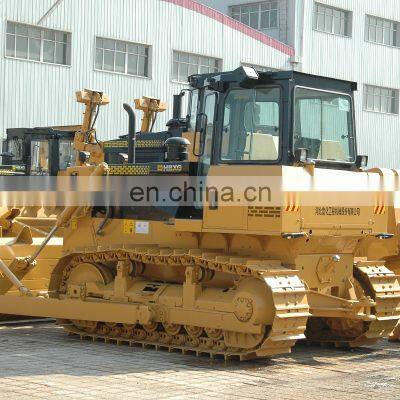

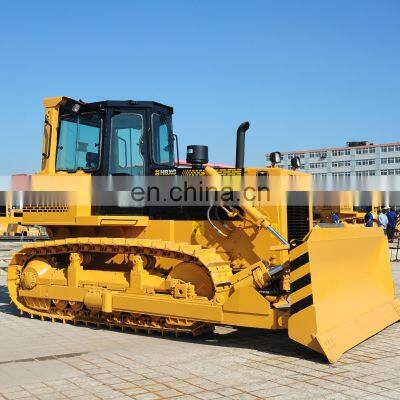

HBXG 165hp crawler bulldozer TY165-3 with 5.2m3 U-blade for sale

Product Description

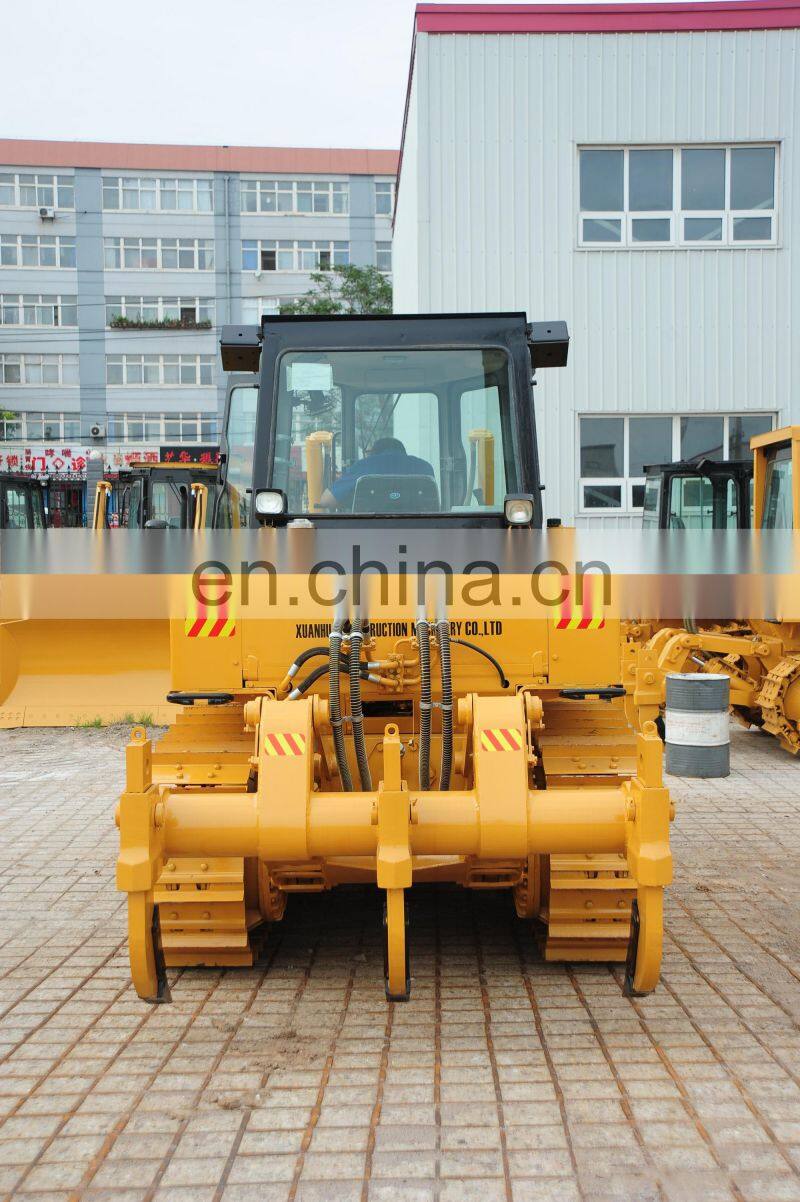

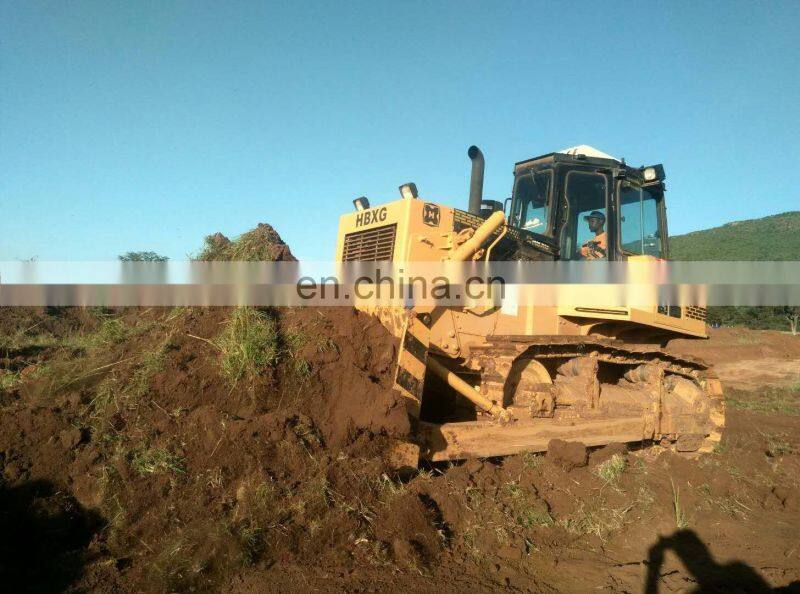

TY165-3 bulldozer is 165 horsepower track-type dozer with hydraulic direct drive, semi-rigid suspended and hydraulic assisting operating, pilot hydraulic blade control. It is characterized by high efficient, open view, optimized structure, easy operation and service with low cost and reliable entire quality. It can be equipped with three shanks ripper, U-blade (5.2 cubic meter capacity) and other optional components. It is applicable for earth handling in road construction, desert and oil-field working, farmland and port construction, irrigation and electric power engineering, mining and other engineer conditions.

Main specifications
Overall dimensions (L×W×H)						5447×3442×3160 mm
Operation weight(t)						17.55
Flywheel power(kW)						121
Max. drawbar pull(kN)						139.6
Ground pressure (at operating weight)(KPa)						68.3
Min. ground radium(m )						4.0
Min. ground clearance(mm)						353
Grade ability						Straight 30° Side 25°
Diesel engine
Manufactured factory					WEICHAI POWER CO., LTD
Model					WD10G178E25
Type					water-cooled, single-row, vertical, 4-stroke-cycle, turbo-charged
Number of cylinders-bore×stroke(mm)					6-126×130
Total piston displacement (L)					10
Rated RPM (r/min)					1850
Rated power( kW)					131
Fuel consumption( g/kW·h)					≤215
Lube oil consumption rate( g/kW·h)					≤1.72
Max. torque (1000-1200r/min)(N·m)					≤830
Cooling method					closed circulation water cooling
Starting method(V)					by electric at 24
Driving System
Torque converter		Single-stage, three unites structure torque converter,output power is stable with high performance.
Transmission		Planetary, power shift transmission with three speeds forward and three speeds reverse. Speed and direction can be quickly shifted.
Travel speed (in theory 1900/min engine speed )
Gear	Forward						Reverse
First	0-3.32 km/h						0-4.00 km/h
Second	0-6.26 km/h						0-7.57 km/h
Third	0-11.40km/h						0-13.87km/h
Steering	The steering clutch is tighten by pressured springs and separated hydraulically with oil-type, multi-powder-metal discs.
Brake	The brakes are oil, two-direction floating band with mechanism foot pedals, hydraulic boosted. The steering and braking can be actuated in one control.
Travel operation	The operation of transmission, steering and braking is controlled by single lever. Transmission, left and right steering and braking can be realized for three speeds forward and three speeds reverse by one handle .
Final drive	The final drives are double reduction with spur gear and segment sprocket, which are sealed by duo-cone seal
Undercarriage system
The undercarriage is section steel welded track roller frame with diagonal brace. The track rollers, carrier rollers and front idlers have the same floating seals which are long-service life and seal well.
Number of track rollers				4 single-flange on each side, 2 double-flange on each side
Number of carrier roller				2 on each side
Number of front idler				one on each side
Track type				single grouser, modular type.
Track adjuster type				by hydraulically adjust
Pitch( mm)				203
Numbers of shoe				38
Width of shoe(mm)				500
Length of track on ground(mm)				2570
Implement hydraulic system
Pump type				two group gear oil pump
Pump flow (L/min)			Front pump	190
			Pilot pump	19
System pressure (MPa)			2.35
Service refill
Fill Capacity(L)								location
Radiator and diesel engine water:								60
Lubricating system of diesel engine								27.5
Transmission, bevel gear case								95
Final drive(each side)								24
Implement hydraulic system								85
Fuel tank								230
Track roller, carrier roller, front idler(each)								0.35
