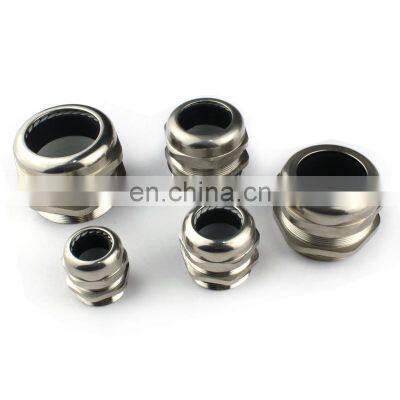

China Supplier Stuffing Ip68 Vent Atex Brass Metal Pg Type Cable Gland
- T/T Credit Card
You May Like
-
Waterproof Emc M75 Metric Type Atex Metal Brass Cable Gland Ip68
-
Ip68 Vent Flexible Conduit Adaptor Plastic G Size Cable Gland Manufacturer
-
Explosion Proof Cable Gland Ip68 Brass Metal Metric Type Pvc Free Sample M Type Compression Brass Cable Gland Nylon PA6 BEISIT
-
Armoured Plastic Explosion Proof Nylon G Size Cable Gland Ip68
-
Ip68 Metal Stuffing Brass Npt Type Cable Gland Shroud Waterproof
-
M30 Atex Metric Type Electric Thread Brass Metal Cable Gland Connection
Product Description

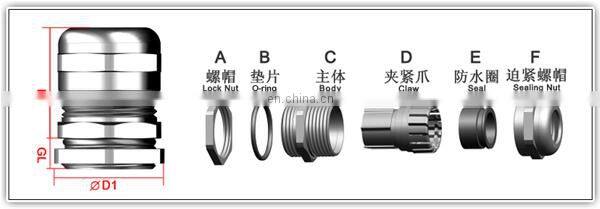

Exploded View of Rould Top Brass Cable Glands for Armoured Cables
Material: 1. Nickel Plated Brass for A,C,F parts
2. Nylon PA6 (Flammability UL 94-2) for D part
3. EPDM rubber for B parts, NBR rubber for E parts
Data Sheet of Rould Top Brass Cable Glands for Armoured Cables
| PG | |||||
| Model | Cable Range | H | GL | Spanner Size | Beisit No. |
| mm | mm | mm | mm | ||
| PG7 | 3-6.5 | 19 | 5 | 14 | P 0707BR |
| PG7 | 2-5 | 19 | 5 | 14 | P 0705BR |
| PG9 | 4-8 | 21 | 6 | 17 | P 0908BR |
| PG9 | 2-6 | 21 | 6 | 17 | P 0906BR |
| PG11 | 5-10 | 22 | 6 | 20 | P 1110BR |
| PG11 | 3-7 | 22 | 6 | 20 | P 1107BR |
| PG13.5 | 6-12 | 24 | 6,5 | 22 | P 13512BR |
| PG13.5 | 5-9 | 24 | 6,5 | 22 | P 13509BR |
| PG16 | 10-14 | 23 | 6,5 | 24 | P 1614BR |
| PG16 | 7-12 | 23 | 6,5 | 24 | P 1612BR |
| PG21 | 13-18 | 24 | 7 | 30 | P 2118BR |
| PG21 | 9-16 | 24 | 7 | 30 | P 2116BR |
| PG29 | 18-25 | 29 | 8 | 40 | P 2925BR |
| PG29 | 13-20 | 29 | 8 | 40 | P 2920BR |
| PG36 | 22-32 | 35 | 8 | 50 | P 3632BR |
| PG36 | 20-26 | 35 | 8 | 50 | P 3626BR |
| PG42 | 32-38 | 37 | 9 | 57 | P 4238BR |
| PG42 | 25-31 | 37 | 9 | 57 | P 4231BR |
| PG48 | 37-44 | 38 | 10 | 64 | P 4844BR |
| PG48 | 29-35 | 38 | 10 | 64 | P 4835BR |

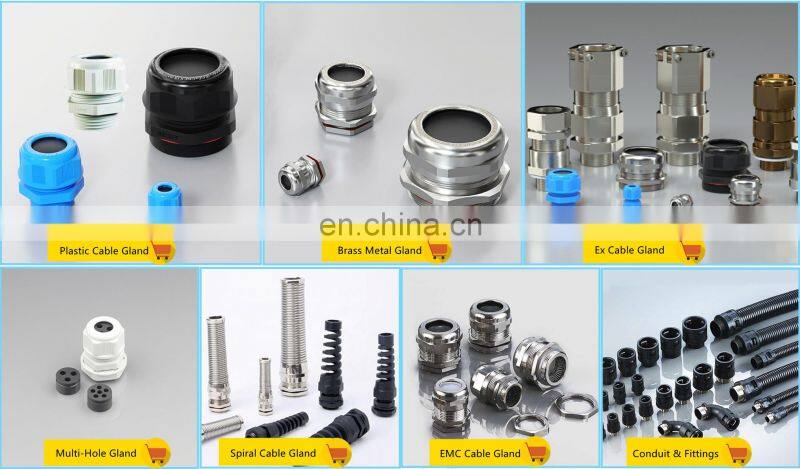

Related Products Cable Gland
Cable Gland Application
Certificate of Rould Top Brass Cable Glands for Armoured Cables
The First factory have VDE for cable gland in Asia
The First factory have UL for full series cable gland
Package of Rould Top Brass Cable Glands for Armoured Cables
A. Common Packing: Certain Pcs + Zip Lock Bag + Label + Export Carton
B. Common Packing:Colorful Inner Box + Export Carton
C. Customized Packing: OEM Label, Inner Box, Blister, etc.
Company Profile
Delivery of Rould Top Brass Cable Glands for Armoured Cables
A.By Courier: 4-7 Working days by special offer
B.By Air: 7 Working days at appointed airport
C.By Sea: 20-25 Working days at appointed port
Services
A. Strong sales team ensures replying you in 24 hours in time.
B. Strong technical team provides technical support for you in all directions in product development anytime.
C. Art designer and graphic design team can design different and fine packing styles for customers
in different market requirements.
Mold and Mold Processing Center
5 Products Development Engineers, 3 mold designers, 49 Technicians, 5 QC.
6-sigma Quality Management System guaranteed.
Precision equipment are mainly sourced from Germany, Janpan, Taiwan, Korea.
Can customized any colors cable gland
Research and Development team can produce any Item & Precise Die Mold
according samples or design drawings
Injection Machine
Why choose us?
1.Product development and special customized ability for clients
2.The independent intellectual property rights and the international certification authority
3.Higher cost performance - product quality exceed international counterparts (TAiWAN and GERMANY)
Welcome your inquiry!
