China Manufacturer PG7 PG9 PG11 PG16 PG21 PG29 M12 M16 M20 M25 M32 M40 M50 M63 Nylon Metric Waterproof Ip68 Cable Gland

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Our standard industrial cable glands and fittings have strain relief to cable and perform well in waterproof and anti dusting for constantly stable utility with trustability. can be suitable for the electric control system for the general purpose of industrial automation, Beisit industry cable glands are mainly made in material of plastic, and metal, are UL certified based on UL 514B STANDARD and are VDE appreciated according to DIN EN 62444:2014-05. the Plastic cable glands are in PA nylon, combined with the individual EPDM sealing insert will be ideal option for outdoor lighting and solar power application, due to the material advantage of weather resistance, antioxidation and UV resistance.

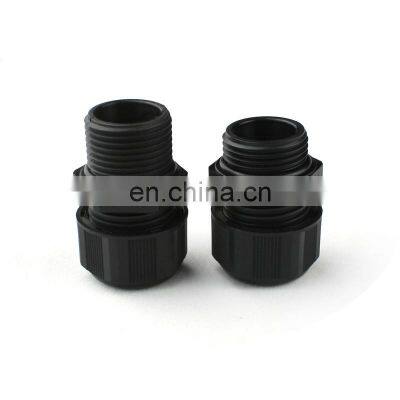

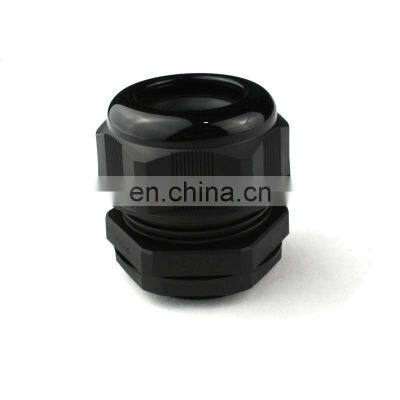

Pictures of PG7 PG9 PG11 PG16 PG21 PG29 M12 M16 M20 M25 M32 M40 M50 M63 Nylon Metric Waterproof Ip68 Cable Gland

Washer and Lock Nut are included in each cable gland for saving additional ordering work and storage locations.

Exploded View of PG7 PG9 PG11 PG16 PG21 PG29 M12 M16 M20 M25 M32 M40 M50 M63 Nylon Metric Waterproof Ip68 Cable Gland

Material: 1. Nylon PA6 (Flammability UL 94-2) for A,C,E parts

2. EPDM rubber for B parts, NBR rubber for D parts

Data Sheet of PG7 PG9 PG11 PG16 PG21 PG29 M12 M16 M20 M25 M32 M40 M50 M63 Nylon Metric Waterproof Ip68 Cable Gland

M Cable Gland Size Chart
Model	Cable Range	H	GL	Spanner Size	Beisit No.	Beisit No.
Model	mm	mm	mm	mm	grey	black
M 12 x 1,5	3-6,5	21	8	15	M 1207	M 1207B
M 12 x 1,5	2-5	21	8	15	M 1205	M 1205B
M 16 x 1,5	4-8	22	8	19	M 1608	M 1608B
M 16 x 1,5	2-6	22	8	19	M 1606	M 1606B
M 16 x 1,5	5-10	25	8	22	M 1610	M 1610B
M 20 x 1,5	6-12	27	9	24	M 2012	M 2012B
M 20 x 1,5	5-9	27	9	24	M 2009	M 2009B
M 20 x 1,5	10-14	28	9	27	M 2014	M 2014B
M 25 x 1,5	13-18	31	11	33	M 2518	M 2518B
M 25 x 1,5	9-16	31	11	33	M 2516	M 2516B
M 32 x 1,5	18-25	39	11	42	M 3225	M 3225B
M 32 x 1,5	13-20	39	11	42	M 3220	M 3220B
M 40 x 1,5	22-32	48	13	53	M 4032	M 4032B
M 40 x 1,5	20-26	48	13	53	M 4026	M 4026B
M 50 x 1,5	32-38	49	13	60	M 5038	M 5038B
M 50 x 1,5	25-31	49	13	60	M 5031	M 5031B
M 63 x 1,5	37-44	49	14	65/68	M 6344	M 6344B
M 63 x 1,5	29-35	49	14	65/68	M 6335	M 6335B

Full Specification Of Nylon Cable Gland pls Click below List for details:

M	PG	NPT	G(PF)
M Long Thread	PG Long Thread	NPT Long Thread	G(PF) strain relief
M StrainRelief /M Strain Relief long Thread	PG Strain Relief/PG Strain Relief Long Thread	NPT Strain Relief	G(PF) Multiple Entry
M Multiple Entry	PG Multiple Entry	NPT Multiple Entry	MG
M Breathable			Flat Hole M PG NPT
M Breathable Strain Relief

Brass or Stainless Steel Cable Gland size chart pls contact us on alibaba or back to Home Page.

More Products

Cable Glands

Waterproof Enclosure

Corrugated Tubing Fitting

Usage of Cable Gland

Beisit, the only manufacturer who have UL certificate for full series of cable glands in China. The only manufacturer who have VDE certificate in Asia.

Company Information

Beisit Electric (Hangzhou) Co.Ltd

1.Entered the filed of wiring accessories more than 12 years.
2.Fast delivery, 20 Working days / 40' feet container.
3.OEM and Special packing, like Blister, Tube Box, Header card, PDQ are all available.
4.5 Products Development Engineers, 3 mold designers, 49 Technicians, 5 QC. 6-sigma Quality Management System guaranteed.
5.12 years experience, 18500mm2 BV, TUV, BSCI, ISO9001 certified workshop.
6.Precision equipment are mainly sourced from Germany, Janpan, Taiwan, Korea.
7.Material was sourced from famous brand "Shenma" in China, also US Dupont & Japan Leona material is available.
8.Products catch UL, VDE, IP68, RoHS, REACH and CE ,GE, Mitsubishi, Auchan, B&Q rely on us continuously.

9.Main Products:

Cable Glands,Cable ties, Terminals and Terminal Blocks, Insulation Piercing Connectors ,Other Wiring Accessories

2.Factory View

3.Our Team

4.Exhibitions

Services

A. Strong sales team ensures replying you in 24 hours in time.

B. Strong technical team provides technical support for you in all directions in product development anytime.

C. Art designer and graphic design team can design different and fine packing styles for customers

in different market requirements.

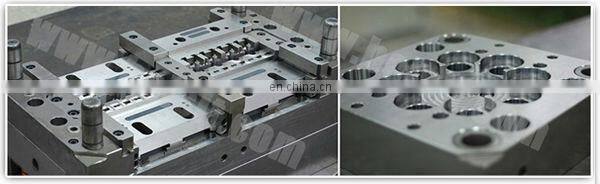

Mold and Mold Processing Center

5 Products Development Engineers, 3 mold designers, 49 Technicians, 15 QC.
6-sigma Quality Management System guaranteed.
Precision equipment are mainly sourced from Germany, Janpan, Taiwan, Korea.

Can customized any colors cable gland

Research and Development team can produce any Item & Precise Die Mold

According samples or design drawings

Injection Machine

Full computer numerical control injuction molding machine are souced from the largest

manufacturer of injection machine in China.

Why choose us?

1.Product development and special customized ability for clients

2.The independent intellectual property rights and the international certification authority

3.Higher cost performance - product quality exceed international counterparts (TAiWAN and GERMANY)

Packaging & Shipping

Package

A. Common Packing: Certain Pcs + Zip Lock Bag + Label + Export Carton

B. Common Packing:Colorful Inner Box + Export Carton

C. Customized Packing: OEM Label, Inner Box, Blister, etc.

Delivery

A.By Courier: 4-7 Working days by special offer

B.By Air: 7 Working days at appointed airport

C.By Sea: 20-25 Working days at appointed port
