Home > Products > Cable Gland > IP68 Cable Gland Manufacturer Nylon Industrial 1/2" NPT conduit gland
IP68 Cable Gland Manufacturer Nylon Industrial 1/2" NPT conduit gland
- T/T Credit Card
You May Like
-
NPT Type High Quality Stainless Steel Cable Gland With Silicon Rubber
-
Cable High Quality Flexicon Metal Gland with Stainless Steel IP68 Nylon PA6 BEISIT CN;ZHE M12-63 EPDM NBR PA(NYLON), UL 94 V-2
-
High Quality Stainless Steel Cable Gland Price Cable Grand
-
PG7 Nylon Long Thread Waterproof Cable Gland
-
Beisit High Quality M10 Ip68 Waterproof M Type Metal Cable Gland
-
High Quality AVC Cable Entry Gland Covers
Product Description
IP68 Cable Gland Manufactures 1/2" NPT Nylon Industrial Cable Gland

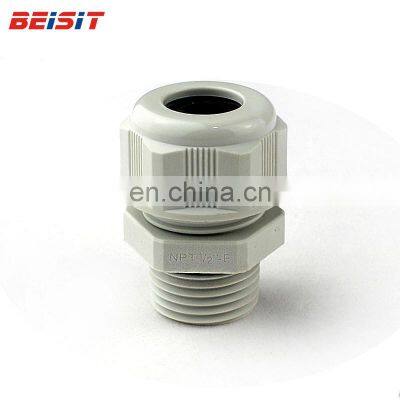

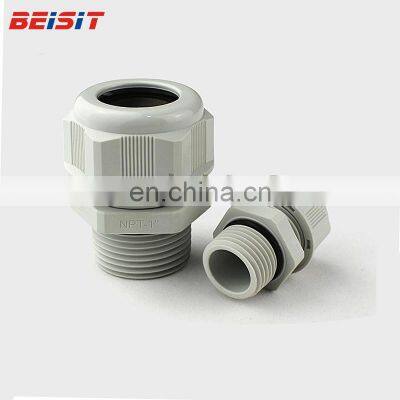

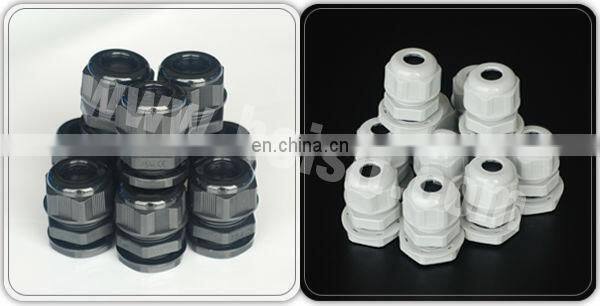

Pictures of industrial cable glands

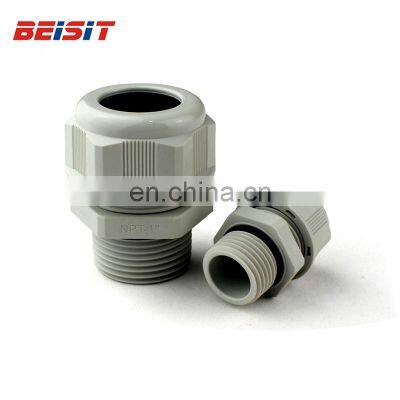

Washer and LockNut are included in each cable gland for saving additional ordering work and storage locations.

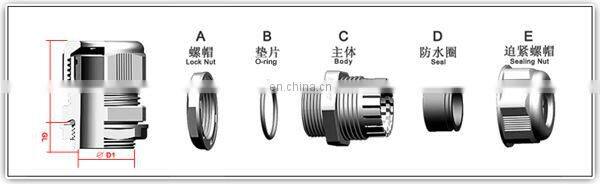

Exploded View of industrial cable glands
Material: 1. Nylon PA6 (Flammability UL 94-2) for A,C,E parts
2. EPDM rubber for B parts, NBR rubber for D parts
Data Sheet of industrial cable glands
industrial cable glands
|
||||||
Model | Cable Range | H | GL | Spanner Size | Beisit No. | Beisit No. |
mm | mm | mm | mm | grey | black | |
3/8" NPT | 4-8 | 22 | 15 | 22/19 | N3808 | N3808B |
3/8" NPT | 2-6 | 22 | 15 | 22/19 | N3806 | N3806B |
1/2" NPT | 6-12 | 27 | 13 | 24 | N12612 | N12612B |
1/2" NPT | 5-9 | 27 | 13 | 24 | N1209 | N1209B |
1/2" NPT | 10-14 | 28 | 13 | 27 | N1214 | N1214B |
1/2" NPT | 7-12 | 28 | 13 | 27 | N12712 | N12712B |
3/4" NPT | 13-18 | 31 | 14 | 33 | N3418 | N3418B |
3/4" NPT | 9-16 | 31 | 14 | 33 | N3416 | N3416B |
1" NPT | 18-25 | 39 | 19 | 42 | N10025 | N10025B |
1" NPT | 13-20 | 39 | 19 | 42 | N10020 | N10020B |
1 1/4" NPT | 18-25 | 39 | 16 | 46/42 | N11425 | N11425B |
1 1/4" NPT | 13-20 | 39 | 16 | 46/42 | N11420 | N11420B |
1 1/2" NPT | 22-32 | 48 | 20 | 53 | N11232 | N11232B |
1 1/2" NPT | 20-26 | 48 | 20 | 53 | N11226 | N11226B |

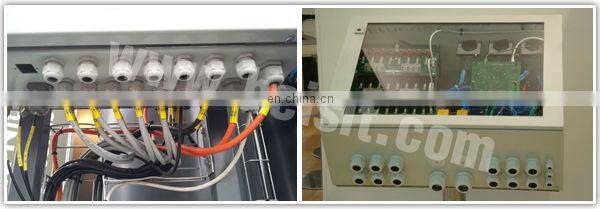

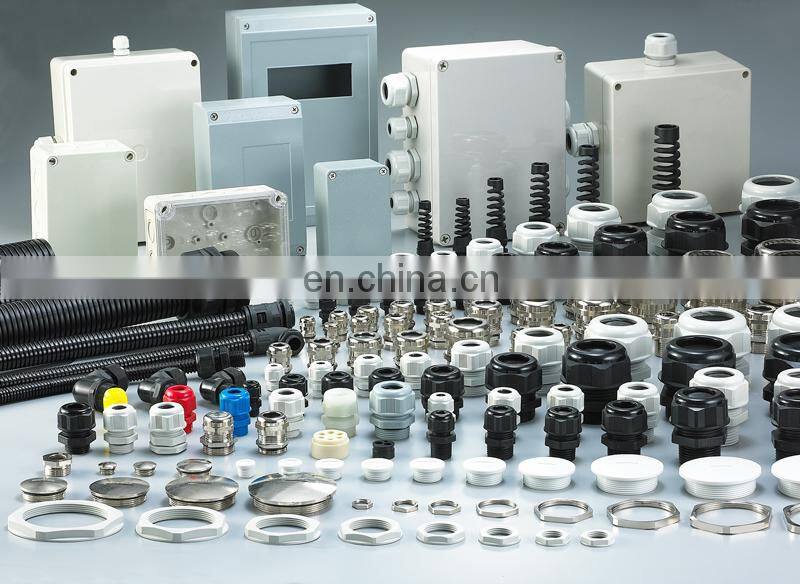

Usage of industrial cable glands
Cable Glands | Waterproof Enclosure | Corrugated Tubing Fitting |

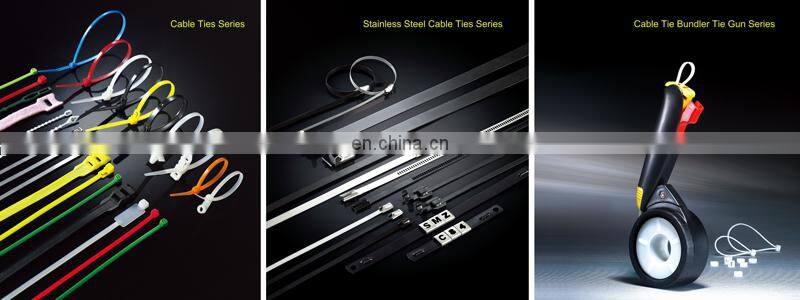

Nylon Cable Tie | Stainless Cable Tie | Cable Tie Bundler Tie Gun |
1.Introduction Of Company
Beisit Electric (Hangzhou) Co.Ltd.:
Beisit Electric Tech (Hangzhou) Co.,Ltd. is a leading manufacturer and supplier for high quality waterproof cable glands and and cable accessories, specializing in Design and manufacture strictly under the electrical standard of GB, IEC,EN and UL.
Beisit is considered to be innovative and partner for flexible application. With a strong tooling workshop and lab centre, the company is able to make quick response to customization request.

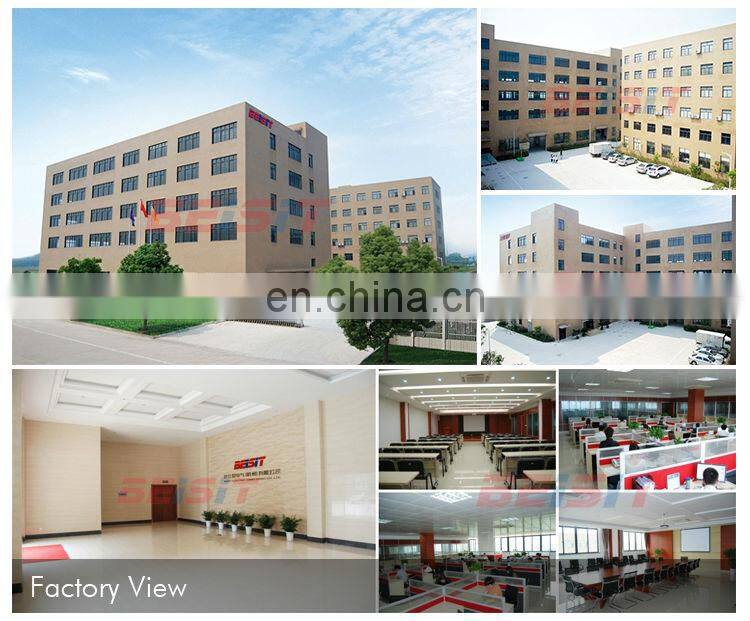

2.Factory View
3.Our Team
4.Certificates
5.Exhibitions
1.Trade Items Of Products
Payment | L/C,T/T,Western Union,MoneyGram,Paypal |
Port | Shanghai or Ningbo |
MOQ | 500PCS |
Supply Ability | 2Twenty-Foot Container/Week |
OEM | Accept |
Delivery | A.By Courier: 4-7 Working days by special offer |
B.By Air: 7 Working days at appointed airport | |
C.By Sea: 20-25 Working days at appointed port |
2.Packaging Of Products
A. Common Packing: Certain Pcs + Zip Lock Bag + Label + Export Carton
B. Common Packing:Colorful Inner Box + Export Carton
C. Customized Packing: OEM Label, Inner Box, Blister, etc.
Delivery
A.By Courier: 4-7 Working days by special offer
B.By Air: 7 Working days at appointed airport
C.By Sea: 20-25 Working days at appointed port
Q: Are you a trading company or a manufacturer?
A: We are factories and goods that we export ourselves.
Q: How long is your delivery time?
A: We have the ability to deliver quickly, fully automated production lines to increase production efficiency, and can be shipped within 3-7 days.
Q: Do you provide samples? Is it free?
A: Yes, we can provide samples for free, but do not pay for shipping.
Q: What are your advantages?
1. Independent intellectual property rights (products have obtained relevant patents for invention patents and utility models in China and Europe, and cooperated with many research institutions such as Germany and Taiwan)
fessional talent (professional technical team: design, programming, research and development, manufacturing and other professionals 62 people)
3. precision equipment (the equipment is mainly imported from Germany, Japan, South Korea and Taiwan, with advanced production equipment and manufacturing processes in the industry)
4. In China, it is the first company in the industry to standardize and set standards.
5. product certification (UL, VDE, TUV, SGS, RoHS, RAECH, IP68, etc. certification and testing)
Q: How about after sales service?
A: Any feedback or comments are welcome. We will work hard to make the best assistants to give you the greatest satisfaction.
