Home > Products > IC > R7fa2l1ab2dfla0 LQFP-48 single chip microcomputer Renesas original stock

R7fa2l1ab2dfla0 LQFP-48 single chip microcomputer Renesas original stock

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 4500 Piece / Pieces per Month
Payment TermsT/T L/C D/P D/A Credit Card PayPal Cash Escrow Other

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Renesas	Place of Origin	Albania
Model Number	R7FA2L1AB2DFL#AA0	Type	Drive IC
Package	4500	D/C	250

Product Description

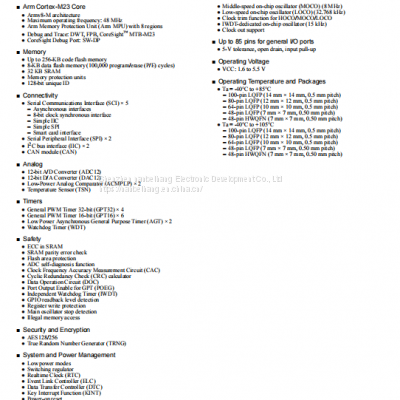

RA2L1 Group

Renesas Microcontrollers

Ultra low power 48 MHz Arm? Cortex?-M23 core, up to 256-KB code flash memory, 32 KB SRAM, Capacitive Sensing Unit (CTSU2), 12-bit A/D Converter, 12-bit D/A Converter, Security and Safety features.

Features

■ Arm Cortex-M23 Core

● Armv8-M architecture

● Maximum operating frequency: 48 MHz

● Arm Memory Protection Unit (Arm MPU) with 8 regions

● Debug and Trace: DWT, FPB, CoreSight? MTB-M23

● CoreSight Debug Port: SW-DP

■ Memory

● Up to 256-KB code flash memory

● 8-KB data flash memory (100,000 program/erase (P/E) cycles)

● 32 KB SRAM

● Memory protection units

● 128-bit unique ID

■ Connectivity

● Serial Communications Interface (SCI) × 5

– Asynchronous interfaces

– 8-bit clock synchronous interface

– Simple IIC

– Simple SPI

– Smart card interface

● Serial Peripheral Interface (SPI) × 2

● I2C bus interface (IIC) × 2

● CAN module (CAN)

■ Analog

● 12-bit A/D Converter (ADC12)

● 12-bit D/A Converter (DAC12)

● Low-Power Analog Comparator (ACMPLP) × 2

● Temperature Sensor (TSN)

■ Timers

● General PWM Timer 32-bit (GPT32) × 4

● General PWM Timer 16-bit (GPT16) × 6

● Low Power Asynchronous General Purpose Timer (AGT) × 2

● Watchdog Timer (WDT)

■ Safety

● ECC in SRAM

● SRAM parity error check

● Flash area protection

● ADC self-diagnosis function

● Clock Frequency Accuracy Measurement Circuit (CAC)

● Cyclic Redundancy Check (CRC) calculator

● Data Operation Circuit (DOC)

● Port Output Enable for GPT (POEG)

● Independent Watchdog Timer (IWDT)

● GPIO readback level detection

● Register write protection

● Main oscillator stop detection

● Illegal memory access

■ Security and Encryption

● AES128/256

● True Random Number Generator (TRNG)

■ System and Power Management

● Low power modes

● Switching regulator

● Realtime Clock (RTC)

● Event Link Controller (ELC)

● Data Transfer Controller (DTC)

● Key Interrupt Function (KINT)

● Power-on reset

● Low Voltage Detection (LVD) with voltage settings

■ Human Machine Interface (HMI)

● Capacitive Sensing Unit (CTSU2)

■ Multiple Clock Sources

● Main clock oscillator (MOSC) （1 to 20 MHz）

● Sub-clock oscillator (SOSC) (32.768 kHz)

● High-speed on-chip oscillator (HOCO) (24/32/48/64 MHz)

● Middle-speed on-chip oscillator (MOCO) (8 MHz)

● Low-speed on-chip oscillator (LOCO) (32.768 kHz)

● Clock trim function for HOCO/MOCO/LOCO

● IWDT-dedicated on-chip oscillator (15 kHz)

● Clock out support

■ Up to 85 pins for general I/O ports

● 5-V tolerance, open drain, input pull-up

■ Operating Voltage

● VCC: 1.6 to 5.5 V

■ Operating Temperature and Packages

● Ta = -40℃ to +85℃

– 100-pin LQFP (14 mm × 14 mm, 0.5 mm pitch)

– 80-pin LQFP (12 mm × 12 mm, 0.5 mm pitch)

– 64-pin LQFP (10 mm × 10 mm, 0.5 mm pitch)

– 48-pin LQFP (7 mm × 7 mm, 0.50 mm pitch)

– 48-pin HWQFN (7 mm × 7 mm, 0.50 mm pitch)

● Ta = -40℃ to +105℃

– 100-pin LQFP (14 mm × 14 mm, 0.5 mm pitch)

– 80-pin LQFP (12 mm × 12 mm, 0.5 mm pitch)

– 64-pin LQFP (10 mm × 10 mm, 0.5 mm pitch)

– 48-pin LQFP (7 mm × 7 mm, 0.50 mm pitch)

– 48-pin HWQFN (7 mm × 7 mm, 0.50 mm pitch)

Overview

The MCU integrates multiple series of software- and pin-compatible Arm?-based 32-bit cores that share a common set of

Renesas peripherals to facilitate design scalability.

The MCU in this series incorporates an energy-efficient Arm Cortex?-M23 32-bit core, that is particularly well suited for

cost-sensitive and low-power applications, with the following features:

● Up to 256-KB code flash memory

● 32-KB SRAM

● 12-bit A/D Converter (ADC12)

● 12-bit D/A Converter (DAC12)

● Security features
