QG Air Stream Dryer for Starch

QG Air Stream Dryer for starch/fish meal/salt/ lees/gluten

Applications:

The equipment can meet different need of raw materials. Besides the mentioned raw materials in basic model, there are hymenal, A.B.C intermediate, ABS resin, white carbon black, tea, catalyst of oxalic acid, promote agent m.d.m, catalyst, deposited carbon powder, N-acetyl-sulfanily chloride, p-aminosalicylic acid, p-phthalic acid, diethyl aniline, titanium dioxide, active carbon, sodium fluosilicate, ammonium sulphate, powder of silicon glue, synthesis resin, calcium sulphate, PP resin, aureomycin, sodium polaysilicate, oral glucose, sodium sulphate, mine of sulphate, mine of phosphorus, BB blue, melting phosphorus fertilizer, tetracycline, ferric oxide, calcium carbonate, titanium/ferric mine, copper mine, powder of white potato, tail coal, stearate, zein, medicine, medical agent, ferric oxide, lees residue and so on.

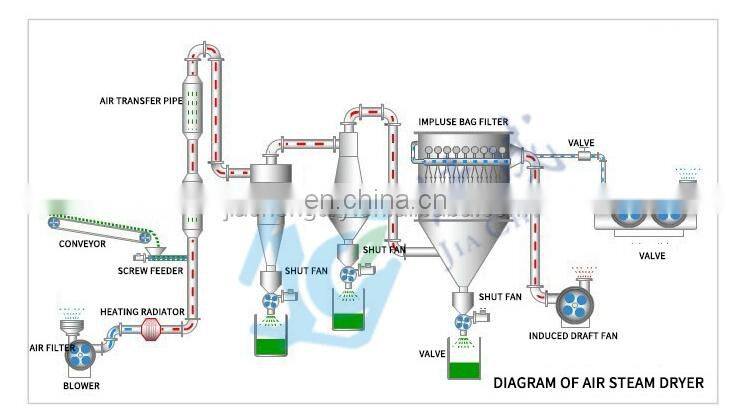

Principle:

It is equipped with fan that has the function of dispersing. So it is suitable for heat sensitive raw material specially The impeller of fan with high speed can crush the wet and blocked raw material till dispersing During the period of dispersing, it is stirred and mixed. Then the raw material and air are flowing in parallel. It's applicable for drying raw materials that are blocked cake but only surface moisture less than 40%. If the amount to be treated is large or the moisture required of finished products is less than 60%, two grades drying can be used .If the moisture of raw materials is between 40%and 60%, the feeder is difficulty. It is necessary to adapt mixer. Through the method of mixing dry raw material into it to decrease the moisture of raw material. At this time, the total output of dryer will be decrease greatly. It is not suitable in economy. Therefore customer should remove the moisture using machinery method (centrifugal or press) so as to decrease its moisture as possible in order to guarantee the drying operation can be carried our freely.

Technical parameters:

FAQ

i. Our company shall delegate one team consists of one chief installers and one or two assistants for supervising the installation on the Buyer’s written request.

ii. Our company shall delegate one processor (or/and one electrician) for the commissioning and instruction of the Buyer's personnel on the Buyer’s written request.
Iii. Why choose our company?

iii. Where you got our product information?

iv. We can show you the best price for our old customers, all new customers we will give 5% discount for the first time.
