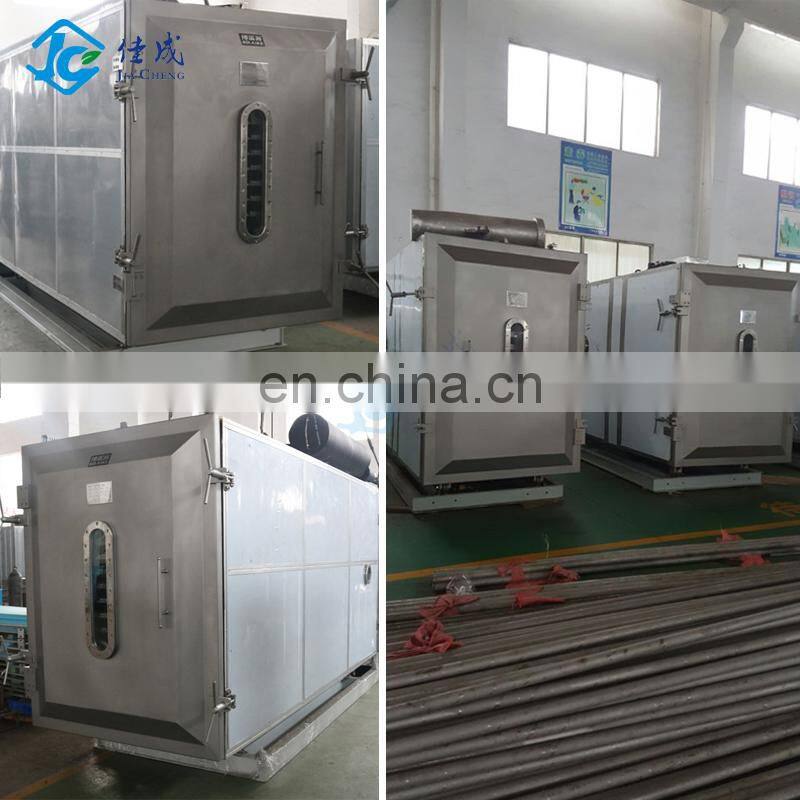

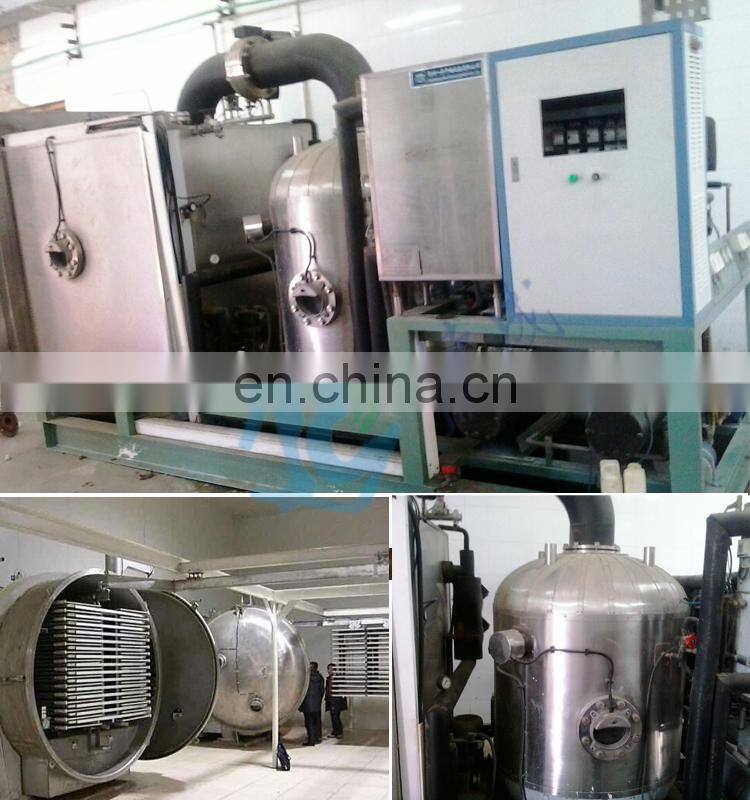

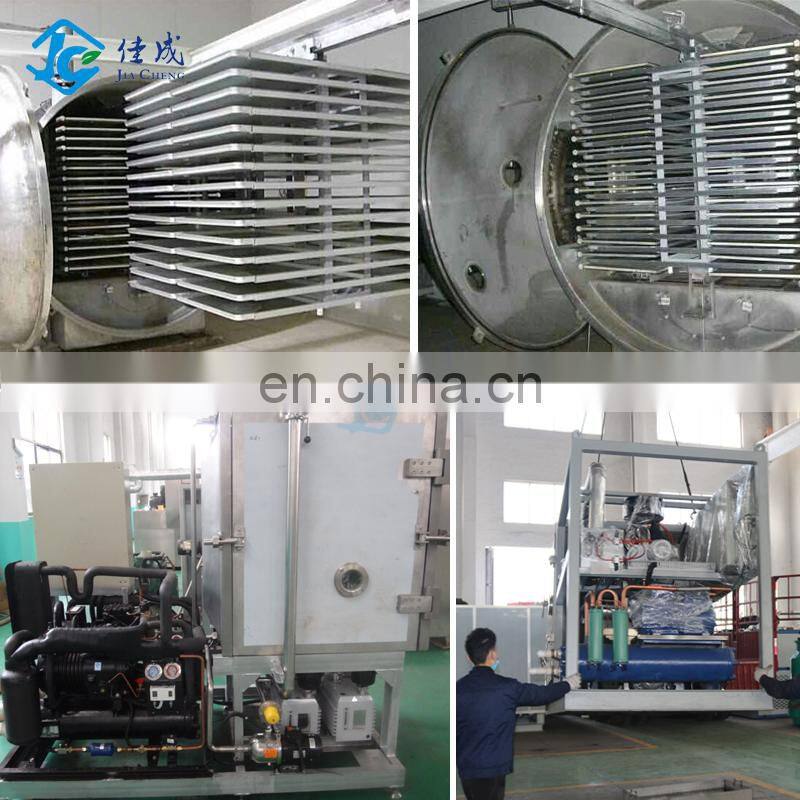

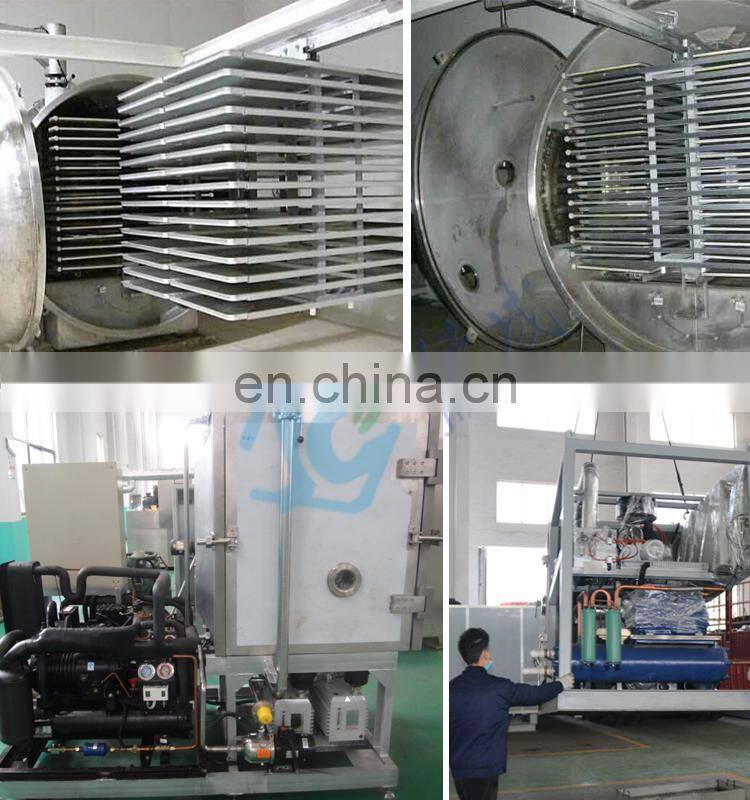

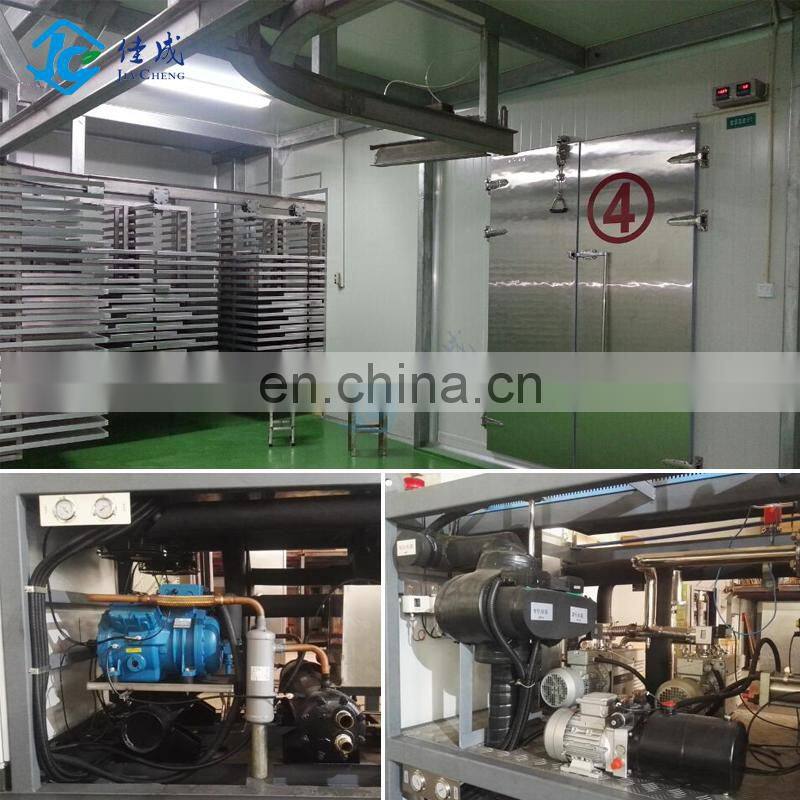

Chinese Factory Industrial Freeze Dryer Meat Drying Refrigerator Quick Freeze Machine/fresh Milk Freeze

Description of Vacuum Freeze Dryer for vegetable and fruits

This vacuum freeze drying is an advanced method for the material for the material dewatering. It freezes the moisture material in the low temperature and makes the water inside sublimate directly in the vacuum condition. Then it collects the sublimated vapor by means of the condensing way so as to dewater and dry the material.

Being processed by the vacuum freeze drying, the physical, chemical and biological states of the material are basically unchanged. The volatile and nutritious contents in the material, which are easy to be denatured in a warm condition, will be lost a little. When the material is freezing dried, it will be formed into a porous one and its volume be basically the same to that before drying. Therefore, the processed material can be recovered quickly if being watered agfgain, because of its large contacting area and it can be stored for a long period in a sealed vessel.

The vacuum freezing dryer can be widely used for the research and production of various heat-sensitive biological products such as vaccine, biological product, medication, vegetable vacuum packing, snake power, turtle capsule and so on.

With the development of the biological, pharmaceutical, food and health are product industries; the vacuum freezing dryer is necessary equipment in the research institutes and companies in such industries.

Feature of Vacuum Freeze Dryer for vegetable and fruits

Designed and manufactured based on GMP requirement, FD Series vacuum freezing dryer adopts a solid construction with a small occupied area and convenient installation and transportation.

Its operation can be controlled by hand, automatic program or computer. It will be more reliable if being equipped with the antigambling unit.

The metal components as the case, plate, vapor condenser, vacuum pipeline and hydraulic device and all made of stainless steel.

Since the shelf is equipped with an advantageous stopped automatically in a bacteria-free condition so as to decrease the labor intensity and increase the product quality.

Adopting the indirect freezing and heating, the shelf is equipped with a high-efficiency heat exchanger in order reduce the temperature different between plates.

The refrigerating system adopts the weni-closed compressor imported from USA. The key components such as the medium refrigerator, solenoid valve, and expansion valve and oil distributor are also purchased from world-famous companies. Therefore, and ideal refrigerating temperature can be ensured and the reliability product in china.

The vacuum, temperature, product resistance, water interruption, power interrupting, automatic over temperature alarming and automatic protection are all displayed by the digital control instrument.

The visual-type horizontal water collector can absolutely prohibit and fault operation. Its collecting capacity is 1.5 times of that of similar collectors.

The air valve can be closed or opened automatically. The protection for water and power interruptions is also equipped.

The relevant freeze drying curve can be supplied to customers.

With the help of the advanced drying case exhaust device, the water ratio of products can be lower than 1%.

An all-round service including the satisfied after-sale service, installing, setting-up, repairing and technical training is guarantees.

II. Technology parameters of Vacuum Freeze Dryer for vegetable and fruits
