300 kg / h Soft Gummy Jelly Candy Making Machine Depositing Line
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Long Service Life Soft Jelly Candy Making Machine Production Line Price
-
Soft Candy Depositor Making Machine Depositing Line With Servo System
-
Small Jelly Candy Gummy Bear Soft Candy Making Molding Machine
-
High Capacity Jelly Candy Moulding Depositing Machine Line
-
Small Jelly Candy Making Machine Depositor Machine Production Line
-
Automatic Soft Jelly Candy Maker Gummy Making Machine Depositing Line
Product Description
Products Description

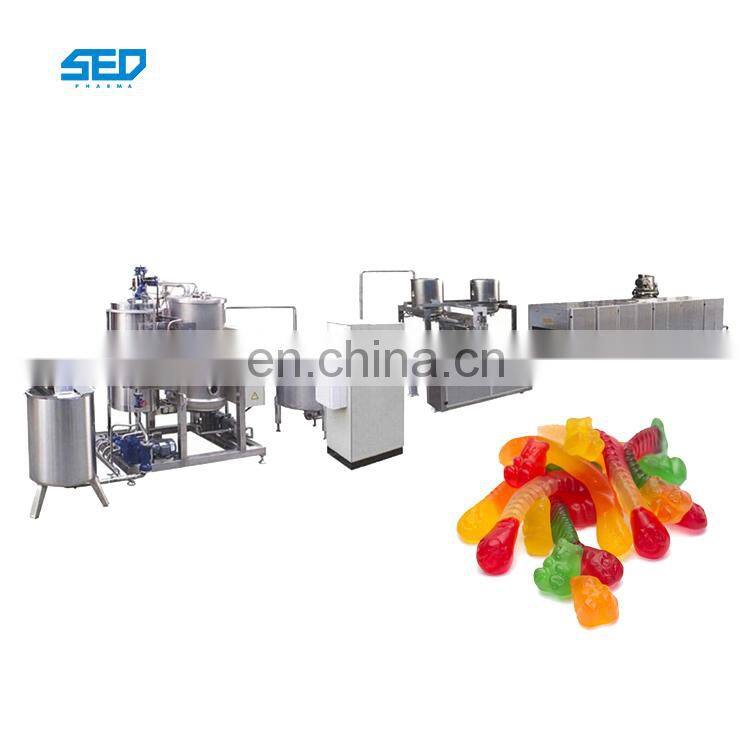

The machine full automatic servo driven PLC controlled jelly candy depositing line is the most advanced production line for deposited jelly candy manufacturing.
Production capacity | 300KG/H |
Speed of stroke | 45-50n/min |
Steam consumption | 200Kg/h |
Steam pressure | 0.6 Mpa |
Power Voltage | 380V |
Total power | 35kw |
Compressed air consumption | 0.3m3/min |
Compressed air pressure | 0.4－0.6 Mpa |
Conditions needed for the cooling system | Room temperature：＜25℃ Humidity：＜55% |
Water consumption | 0.3 m3/h |
Candy weight | 2-12g(Max) |
Product Details
Dissolving tank
1. Dissolving tank total volume:300L
2. Mixer motor power0.75Kw
3. Equip with valve, steamtrap, pressure meter, safety valve
4. Steam consumption:100kg/h, pressure:0.5Mpa
5. Machine made of SUS304material (except standard parts)
6. Machine size(L*W*H):1100*1100*1400mm
7. Machine weight:100Kg
Jelly mass cooker
1. 200L jacketed mixing tank 1set, mixer motor power 1.5Kw
2. 200L jacketed storage tank1set
3. Vacuum pump motor power: 4kw, including SUS304 pipe and automatic valve system
4. Syrup transfer pump motor power: 0.75Kw, speed adjustable, including jacketed pipe and valve control system
5. Water heating system, including steam heating water tank, water pump, pipe heat preservation control system
6. Steam control system 1set, including automatic valve and piping system
7. Electrical control use PLC, large screen etc. Centralized control
8. Machine made of SUS304 material (except standard structural parts)
9. Machine size:1800*1600*2300mm
10. Machine weight:600kg
Conveyor
1. Conveyor 1 length: 1300mm
2. Conveyor 2 length: 2400mm
3. Machine weight: 80Kg
Surface
sugar
coating
machine
1. Motor power:0.75Kw
2. Roller rotary speed: 96N/Min
3. Machine made of SUS304 (except standard parts)
4. Machine size(L*W*H):1450*1150*1300mm
5. Machine weight: 300Kg
Gelatin
melting
Tank&
pipe
1. Jacket tank 1pc with insulation, material SUS304
2. with Motor (0.75kw）and reducer
3. with SUS304 Stirrer
4. capacity：200L:
5. capacity:70L
Moulds
1. moulds made of Aluminum alloy, Outside
Coated with Teflon
2. candy shape and size can be designed
