Product Description
Products Description
The machine full automatic servo driven PLC controlled hard candy depositing line is the most advanced production line for deposited hard candy manufacturing. This line mainly consists of auto weighing and mixing system（optional）, pressure dissolving system, micro-film cooker, depositor and cooling tunnel and adopt the advanced servo system to control the processing.
Production capacity | 150kg/h |
Speed of stroke | 45-55 n/min |
Steam consumption | 200Kg/h |
Steam pressure | 0.6 Mpa |
Power Voltage | 380V |
Total power | 30kw |
Compressed air consumption | 0.3m3/min |
Compressed air pressure | 0.4－0.6 Mpa |
Conditions needed for the cooling system | Room temperature：＜25℃ Humidity：＜55% |
Water consumption | 0.3 m3/h |
Product Details

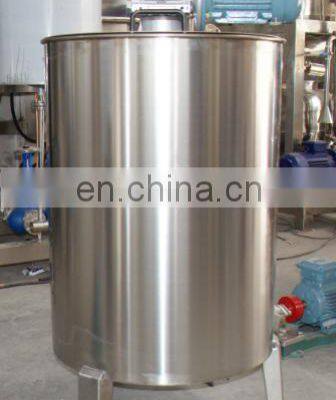

Dissolving tank
A. Dissolving tank total volume: 300L
B. Mixer motor power 0.75Kw
C. Equip with valve, steam trap, pressure meter, safety valve
D. Steam consumption: 100kg/h, pressure: 0.5Mpa
E. Machine made of SUS304 material (except standard parts)
F. Machine size (L*W*H): 1100*1100*1400 mm
G. Machine weight: 100Kg
Transfer pump
A. Gear pump head diameter: 1”, motor power: 1.5Kw
B. Pump head made of SUS304 material
C. Include inlet and outlet SUS304 pipe
D. Machine size (L*W*H): 560*250*250mm
E. Machine weight: 40Kg
Storage tank
A. Storage tank total volume: 200L
B. Mixer motor power: 0.75Kw
C. Equip with syrup filter net, SUS304 outlet pipe
D. Machine made of SUS304
E. Machine size (L*W*H):650*650*1350mm
F. Machine weight: 120Kg
Micro-film Cooker
A. Piston dosing pump: 1set, motor power 0.75Kw
B. Preheater 1set
C. Vacuum pump 1set, motor power 4Kw,
including SUS304 piping system 1set
D. Micro film generator 1set, power:4Kw
E. Discharge pump 1set, motor power 1.5Kw, speed adjustable, including SUS304 insulation piping system 1set
F. Steam control system 3sets (preheating, cooking, heat preservation) pipe material: all use SUS304 high pressure resistant pipe
G. Electrical control use PLC, large screen etc centralized control
H. Whole machine steam consumption: 200kg/h,
steam pressure: 0.6Mpa
I. Machine made of SUS304 material (except standard structural parts)
J. Machine size: 2.1*1.6*2.25 m
K. Machine weight: 900kg
Servo system Depositing & cooling
(One row without A/C)
A. Double color servo depositor 1set, servo motor: 1.5Kw X 2sets
B. Depositor head automatic tracking use servo motor control, power 1Kw
C. Depositor electrical control: 5-route temp. controller, power 5.5 Kw.
D. Mold conveyor power: 1.5Kw, use inverter adjust speed
E. Syrup color & flavor mixer 2sets, power 0.37Kw
F. Flavor and color dosing 4sets, flow rate 3L/h(Max), flow rate adjustable
G. Cooling tunnel belt 1set, conveyor 0.75Kw
H. Machine made of SUS304 material (except transmission shaft, cam, chain, gears and related standard configuration parts)
Ball lollipop stick-insert machine
A. Stick insert speed: 28 n/min
B. Lollipop diameter: 28mm(max)
C. Lollipop weight: 26g(max)
D. Stick length 60-100mm
Feature
1.Sugar and all other materials are automatic weighed, transferred and mixed through adjust touch screen. Various kinds of recipes can be programmed in the PLC and applied easily and freely when required.
2.PLC, touch screen and servo driven system are imported brand, more reliable and stable performance and durable use-life.
3.Depositing volume (candy weight) can be changed easily through setting data on touch screen. More accurate depositing and continuous production makes minimal product wastage.
4.Simple and compact machine structure, menu style operation interface, convenient operation and maintenance, high efficiency, low-noise, stable performance and long life.
5. Ball and flat lollipop stick-insert machine for producing lollipop in the same line is optional
