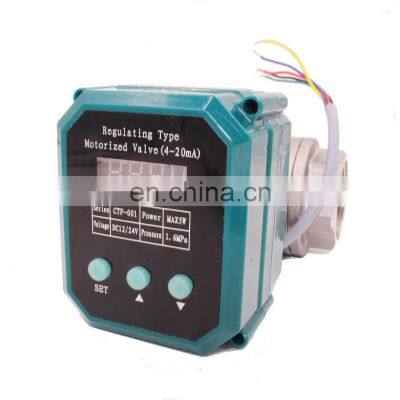

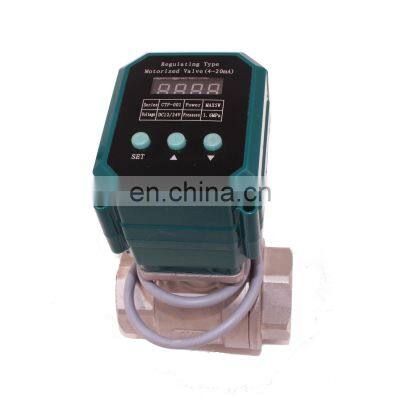

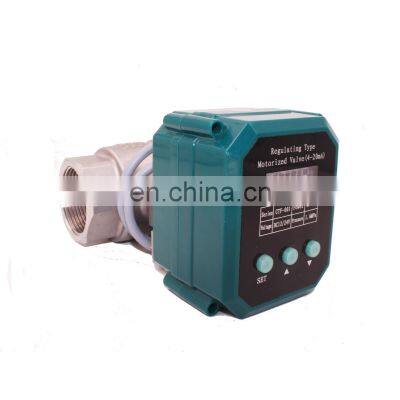

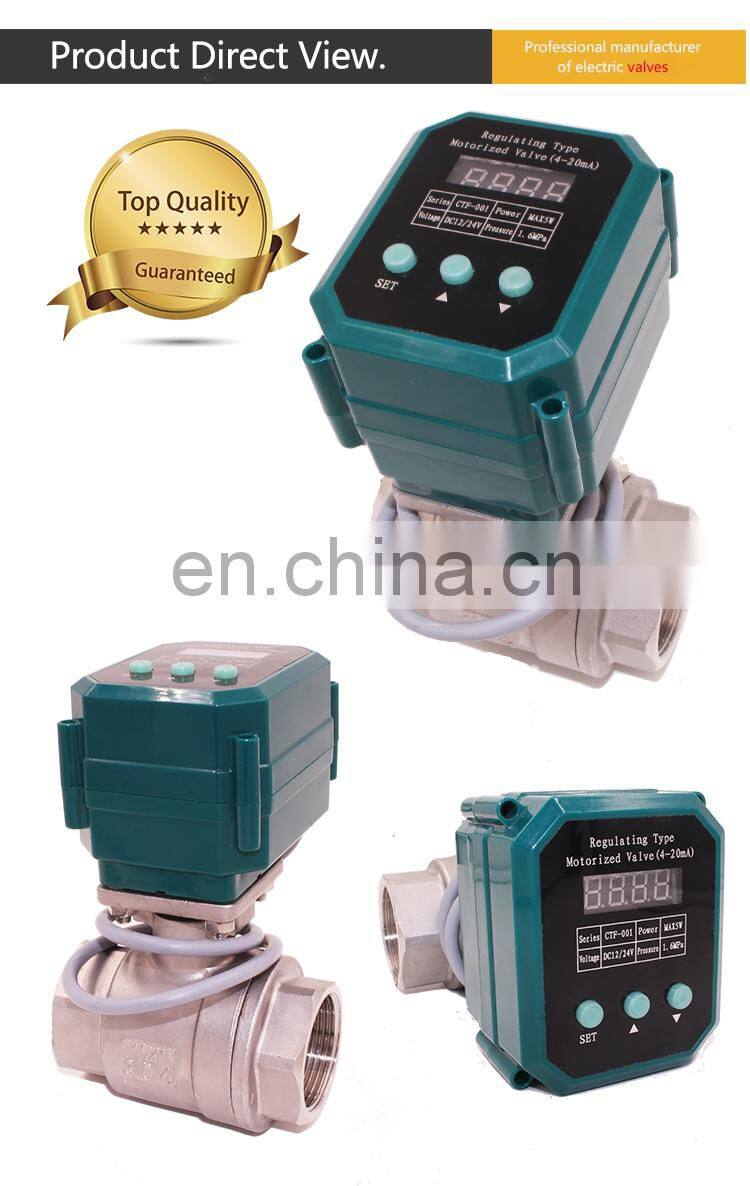

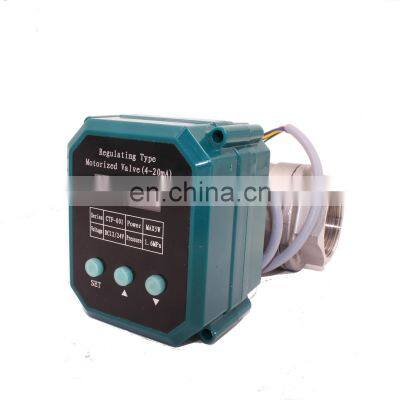

4-20ma valve DN15 DN20 DN25 DC12V DC24V ss304 CTF-001 10nm 4-20ma motorized valve
- 1000 per Month
- T/T Credit Card
You May Like
-
ss304 electric valve 230vac CTF-001 10nm DN25 1\" DN32 SS304 2-way ss304 electric ball valve
-
4-20ma 24vac /dc air water oil flow control valve dn20 electric adjustable water pressure relief valves 2 way or 3-way
-
plastic motorized ball valve CTF-001 10nm 220v 12v plastic motorized ball valve
-
DC12V DC24V ss304 CTF-001 10nm 4-20ma modulating electronic ball valve
-
Hot!Hight quality.230V,DC12V,DC24V Motorized PVC ball valve PVC electric operated valve(DN15/DN20/DN25/DN32/DN40)
-
pvc motorized valve BSP NPT thread glue CTF-001 10nm 12v dn25 pvc motorized operated valve
Product Description
1. Simple design, compact size, 4-20ma adjustment, is the intermediate product
connecting civil and industrial valves.

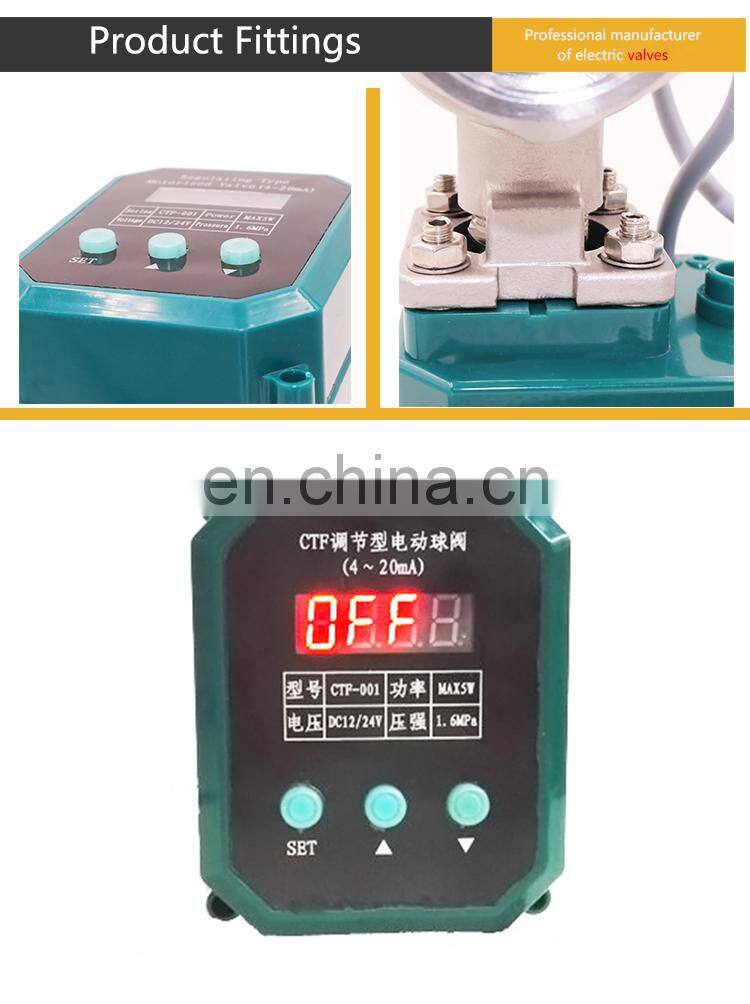

2. The product running state LCD screen is visible and has manual and electric control
functions.
3. Adopt all-metal gear transmission, with reliable performance output torque, up to
10NM.
4. Adopt double limit of electrical and mechanical, accurate positioning and high
consistency.
5. The connection between the actuator and the valve body is ISO5211 standard, and
the flange type is F03 and F05, which is convenient for the user to match the valve
body.
6. The ball valve adopts the floating seal structure, no drop leakage, which is suitable
for heavy dirt and long period of no action.
7. Good sealing performance, the protection grade is IP65.
1. University LABS, automotive laboratories.
2. Drug production, diesel fuel saving, etc.
3. Small equipment such as water saving, automatic control system and industrial
automatic control in colleges and universities;
4. Agricultural irrigation, environmental protection, water supply and drainage, water
treatment works;
5. Water-saving appliances, drinking water equipment, etc.
Product model | Rated voltage | Working current | Output torque | Open/close time | Control mode |
CTF001 Modulating type | DC12V DC24V |
<200mA | Max6NM | <30s | 4-20mA |
Working pressure | Power | Medium temperature | Size | IP Garde | Mode of regulation |
Max1.6Mpa | <5W | 0-90℃ | DN8-32 | IP65 | Manual and electric |

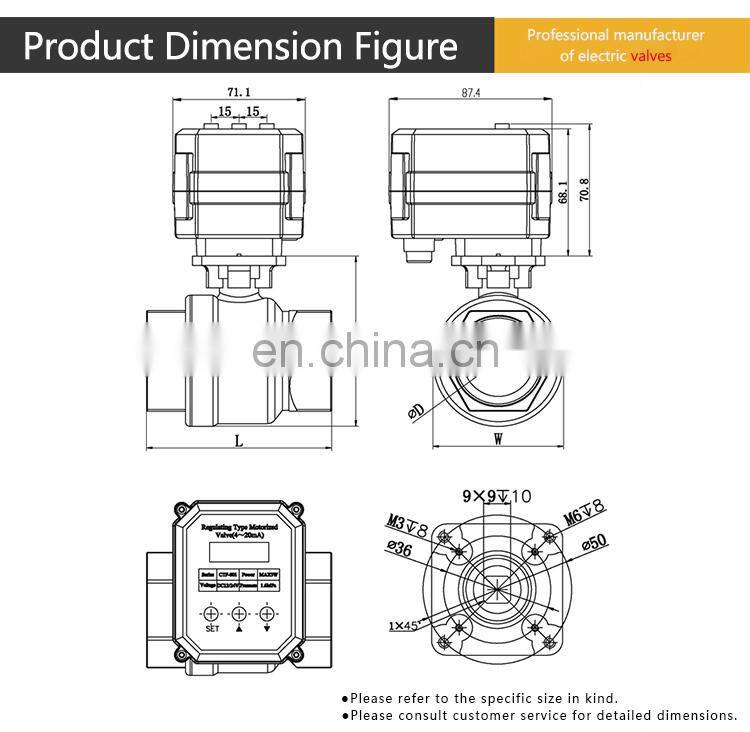

SS304/316 | Sizes | d | L | H |
DN15 | 15 | 62 | 55 | |
DN20 | 20 | 71 | 63 | |
DN25 | 25 | 81 | 78 | |
DN32 | 32 | 93 | 84 | |
UPVC | DN15 | 15 | 121 | 50 |
DN20 | 20 | 135 | 62 | |
DN25 | 25 | 150 | 69 | |
DN32 | 32 | 165 | 82 |
Horizontal Three-way (Brass) | Sizes | d | L1 | L2 | H |
DN15 | 15 | 61 | 48 | 46 | |
DN20 | 20 | 67 | 48 | 54 | |
DN25 | 25 | 96 | 74 | 68 | |
Horizontal Three-way (SS304/316) | DN15 | 15 | 80 | 52 | 54 |
DN20 | 20 | 82 | 62 | 59 | |
DN25 | 25 | 87 | 67 | 71 |
Tianjin Tianfei High-Tech Valve Co., Ltd. is a professional manufacturer of electric valve and manual valve, is a founding company of Tianjin Valve industry.Tianfei has a professional
R & D team,has won many letters of petent and the recognition of the Tianjin municipal government departments.“CWX”is our brand and our company has passed the
ISO9001,CE,RoHS,NSF61 certificate and so on,the products have exported to many countries and regions worldwide.
Our company motto is novative, simplified, high-valued, As having accumulated rich experiences and resources during more than 10 years developing, we are confident in providing you satisfied products and service in the cooperation. Tianfei pays attention to the quality of the products,use “CWX” valve is your correct choice.
1. Are you manufacturer or trading company?
We are manufacturer, we had been produced electric valve for more than 10 years. So we have advantage in price. We also could do OEM.
2. What's the payment method?
T/T,Paypal,Western Union, Moneygram,Aliexpress, L/C ect.
3.What's your Minimum Order Quantity (MOQ)?
Our MOQ is 1piece.
4. What about the delivery time?
Sample need about 3 working days, large order delivery time will according to your quantity.
5..Would you have a discount if l have a large order?
A; Yes we could offer different discount according to your order quantity.
6.Where is the factory located?
Tianjin city and welcome to visit our factory.
