788H LED Dual Pulse Spot Welder 18650 Battery Charger 800A 0.1-0.2 mm 36V 60A
- T/T Credit Card
You May Like
-
TPA3116D2 DC 12-24V 100W+50W+50W Digital 2.1 Audio Amplifier Board
-
100KHz-1.7GHz HF UHF VHF SDR Receiver With Up-Converter RTL2832U+820T2
-
HackRF One 1MHz-6GHz SDR Platform Software Defined Radio Development Board
-
Black HackRF One Box 1MHz-6GHz SDR Platform Software Defined Radio Development Board
-
XiangSheng 728A EXQUIS 12AT7 12AU7 6Z4 HIFI Vacuum Tube Preamplifier With Tone
-
Colour Touch Screen VCO Microwave Frequency Synthesizer PLL ADF5355 Module
Product Description
788H LED Dual Pulse Spot Welder 18650 Battery Charger 800A 0.1-0.2 mm 36V 60A
Feature:
1. Double-pulse micro-computer spot welding and battery charger;
2. Micro-computer control up to level 199 (99*1, 99*2), precision parameter setting;
3. One or two pulse welding mood selectable;
4. Has the fast setting knob of pulse serial (16 pulse), suitable for the welding of thicker material;

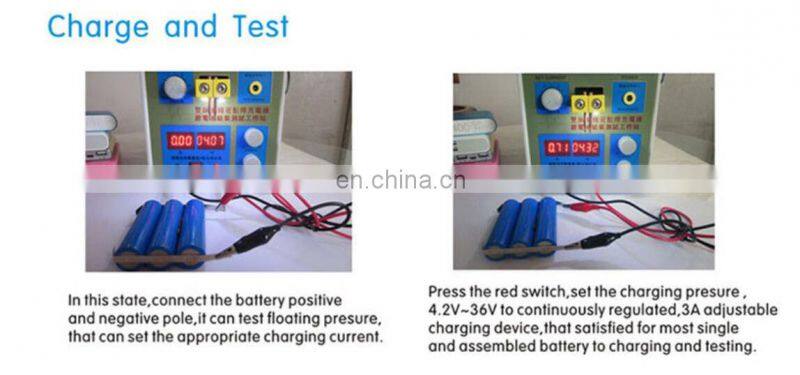

5. Has adjustable charger (4.2 - 36 V, 0 - 3 A), convenient for the charging and test of battery;
6. The specific battery tester can test the float charge voltage, therefore, you can get the internal resistance by selecting the appropriate charging current.

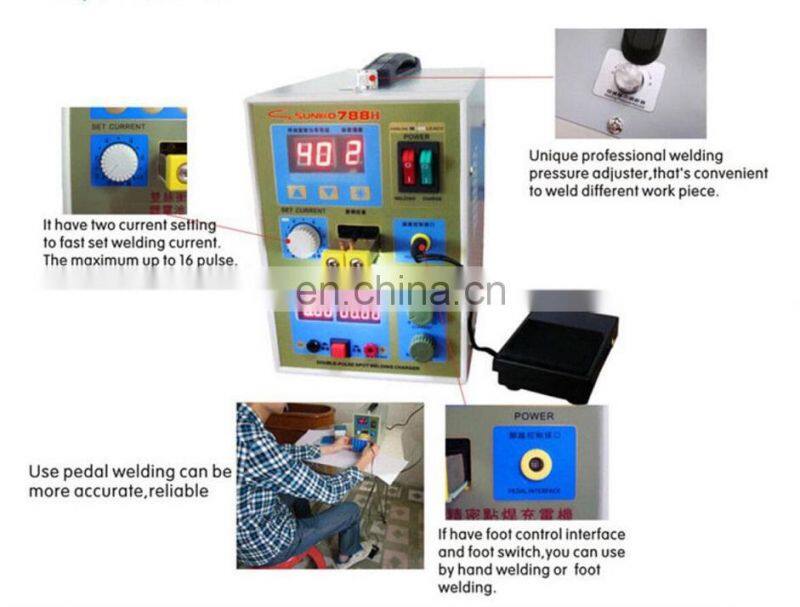

7. It has foot switch and pressure adjuster, which improves the accuracy of welding.

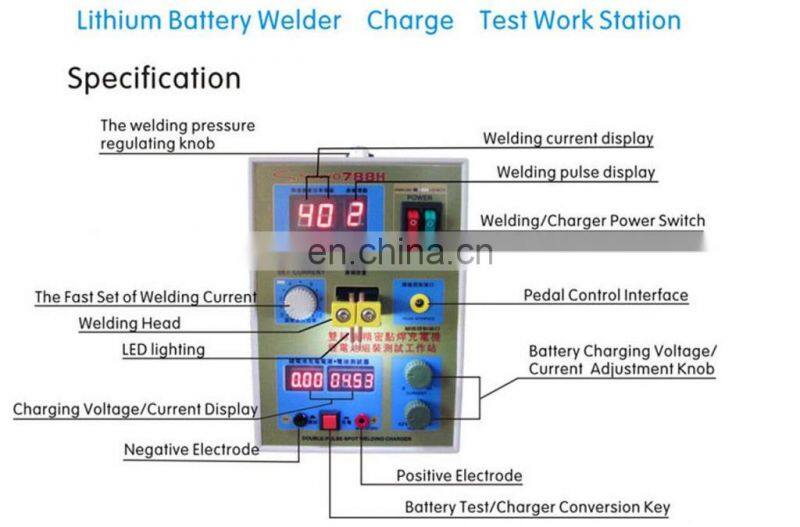

Specifications:
- Brand: Sunkko
- Charging Voltage: 4.2 - 36 V (Adjustable)
- Model: 788H
- Charging Current: 0 - 3 A (Adjustable)
- MPN: a20161214001
- Applicable Welding Thickness: 0.1 - 0.2 mm;
- For pure nickel strip: 0.1 - 0.15 mm
- Country/Region of Manufacture: China
- Electric leakage Switch Requirement: 60 A or more than 60 A
- Voltage: 110V
- Primary Current: 2- 5 A
- Welding Current: 50-800A (The corresponding pulse time:1ms-19ms)
- UPC: 607885254964
- Dimension:34x19x17cm
- Weight:5.6kg

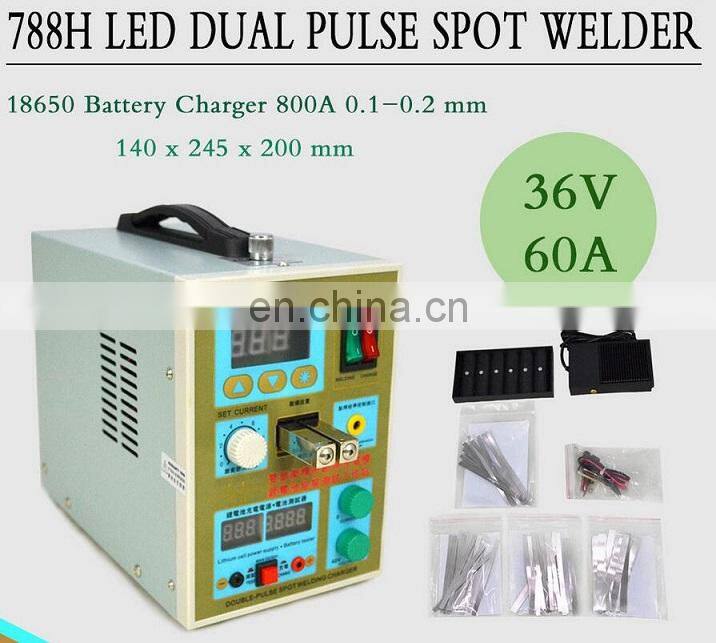

Package List:
- 1 x 788H LED Dual Pulse Spot Welder
- 4 x Nickel layer testing sample
- 1 x Welding pen
- 1 x Foot switch
- 1 x 18650 Strong magnetic battery clamp
Detail photo
