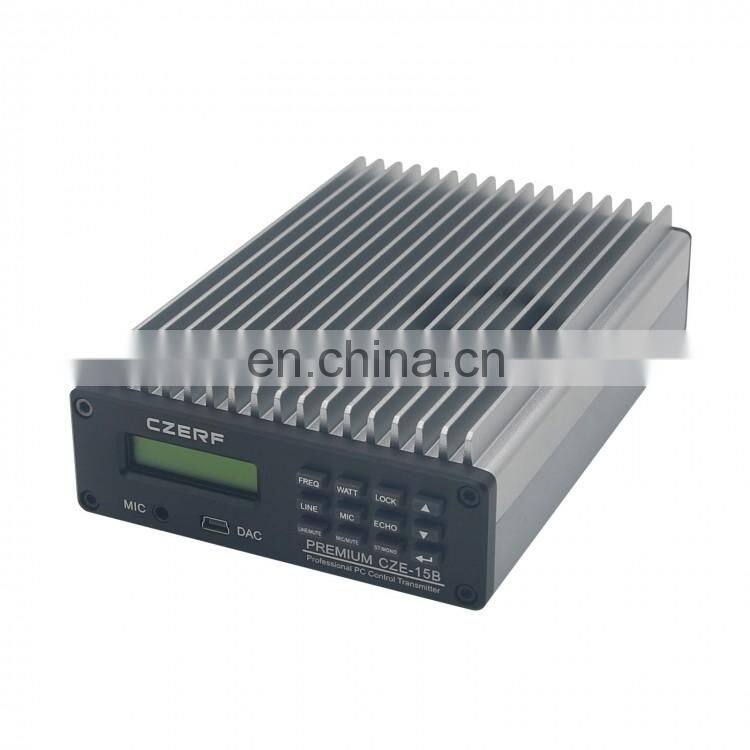

CZE-15B 0-15W 3-5km wireless FM Transmitter Broadcast Radio Station with Power Adapter Antenna

Features:
- Output power continuously adjustable from 0W~15W
- Constant power, the whole band has 3~ 5W margin
- Output power automatic locking
- Microphone with reverb and can be turned on or off
- Channel is Optional:Single / Dual
- PC control port, computer manipulation through software, more advanced.
- Audio digital-analog conversion, easier digital input
- VSWR protection:If the antenna is not connected correctly,there willl be automatic acces for protection
- Temperature protection, automatic protection when the transmitter temperature is too high
- Fan with temperature control switch, automatic ON/OFF
- Host panel with a number of shortcut keys, intuitive display, simple operation, fast
- The equipment with reasonable design, material quality is very high, rugged
- 15W PREMIUM Professional PC Control PLL FM Transmitter

Specification:
- PC Control FM Transmitter/broadcast radio station
- Operating voltage: DC12V~16V(Rated voltage15V)
- Maximum Operating Current: less than 3A
- Frequency Range: 87MHz ~ 108MHz
- Frequency stability :±10PPM
- Frequency stepp: 100 KHz
- Operating temperature range -10 to 45 degree
- Output power: 0~15W(continuously adjustable)
- Output Impedance: 50 ohm
- Maximum Deviation:± 75KHz
- Harmonics, spurious radiation ≤-60dB
- Audio Frequency Response: 50Hz~15kHz
- Audio Input Level:15dbV(adjustable)
- Audio Input Interface: 3.5mm headphone connector
- MIC input: 3.5mm headphone connector
- Separation: ≥35db
- SNR: ≥60db
- Effective distance:3-5km
- Reference for the distance: 10Km -18Km (barrier free environment)
- Dimensions: 173mm (L) * 110mm (W) * 48mm (H)
- Weight: 0.7KG

Note:
- Antenna interface: TNC
- Connect antenna first ,then connect the power supply, otherwise, transmitter will be burned out.
- Select an unused FM station in your area.

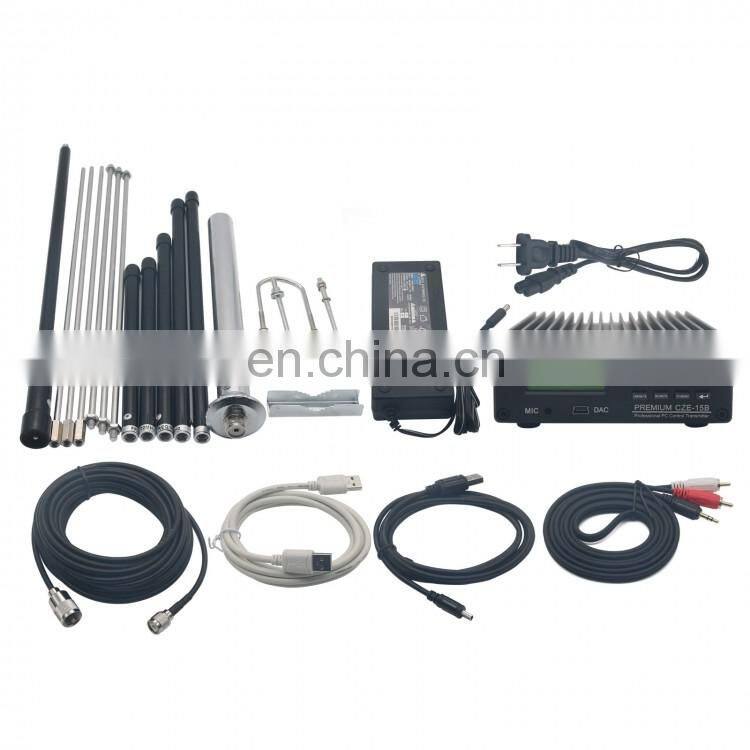

Package includes:
- CZE-15B FM Transmitter x1
- Power adapter x1
- Antenna
- Audio Cable x1

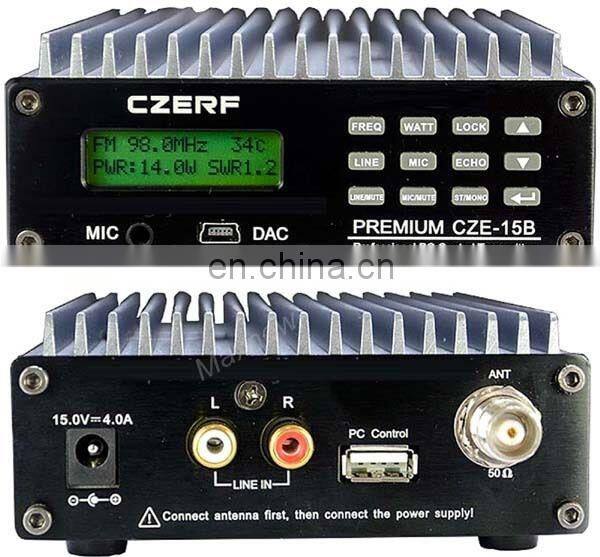

Detail photo
