Fiber Optic Cable Core GFRP Fiberglass Rod Core for Optical Cable
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Hot Sale Rod For Optic Strengthening Core Optical Fiber Cable 4 Core With Frp
-
Glass Fiber Reinforced Plastic FRP GRP Sign Pile
-
Factory Supply Insulation Fiberglass FRP Epoxy Bolts FRP Bolts and Nuts
-
High Tensile Strength FRP Rebar Fiberglass Rebar Frp Rebar Production Line
-
GFRP Optical Cable Core Fiberglass Rod 0.5mm 2.5mm Glass Fiber Reinforced Plastic Strength Member
-
Cooling Tower Packing Use PVC Material Fill
Product Description
Product Description

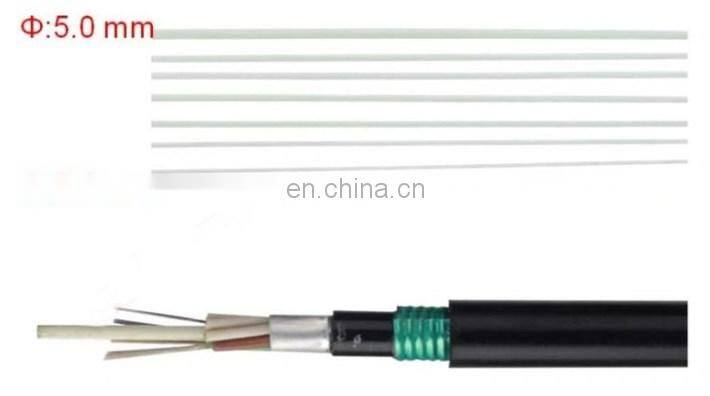

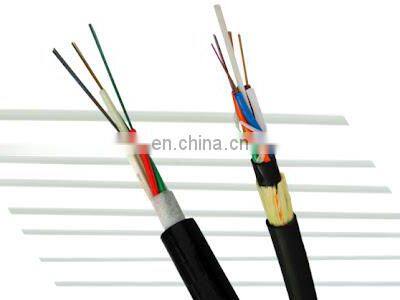

Gfrp Optical Cable Core Fiberglass Rod 0.5mm 1.6mm 2.5mm Glass Fiber Reinforced Plastic Strength Member

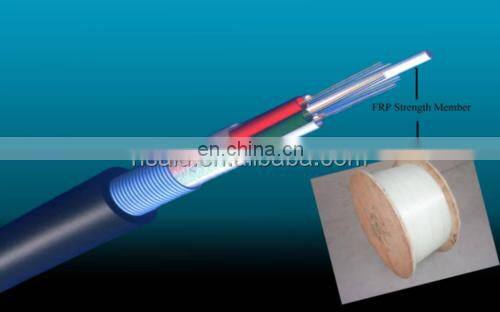

The structural strength of optical cable is an important index of the mechanical properties of optical cable. As one of the structural components of fixed optical cable, the FRP reinforcing core plays an important role in strengthening the tensile and compressive capacity of optical cable.FRP glass fiber reinforced core, as a kind of structural strengthening element of non-metallic fiber optic cable, is widely accepted and used by the fiber optic cable industry. It is a non-metallic bearing core with good price and performance generally recognized by the fiber optic cable industry at home and abroad. To produce qualified FRP, the key lies in the reasonable selection of reinforcement materials (glass fiber), base materials (resin) and curing process.
Specification
Standards Diameter: 0.4mm-5mm(As request)
Standard length(Km) | ||||
Diameter | standard length | marked with size and meter print by one meter interval | ||
0.40-3.00mm | ≥25KM | |||
3.20mm and above | ≥15KM | |||
Non-standard diameter and non-standard length can be produced according to customer's requirements | ||||
Technical Paramenters
Test Item | Unit,or test condition | Data |
Appearance | Uniform color,smooth surface,no bur,no crack | |
Tensile Strength | MPa | ≥1100 |
Elastic Tensile Modulus | GPa | ≥50 |
Bending Strength | MPa | ≥1100 |
Flexural Modulus | GPa | ≥50 |
Elongation at break | % | ≤4% |
Coefficient of Linear Expansion | 1/ºC(-30ºC~+80ºC) | ≤8x10^-6 |
Diameter Tolerance | % | ±2% |
Specific Gravity | g/cm3 | 2.05~2.15 |
Minimum Bending Radius | mm(28ºC±5ºC) | 40D |
High Temperature Bending Performance | (50D,100ºC,120h) | No burrs,no crack,no break,smooth surface |
Low Temperature Bending Performance | (50D,-40ºC,120h) | No burrs,no crack,no break,smooth surface |
Technical characteristics
1. It has the characteristics of light weight and high strength.
2. It has good corrosion resistance and impact resistance. This optical cable is rust proof, tooth biting proof and ant proof.
3. The surface is smooth and the size is more stable.
4. The chemical reaction between metal and other optical cable materials will not affect the optical fiber transmission index.
5. It is not sensitive to electric shock current, and is suitable for multi lightning, multi rain and other climate environment areas; the fiber optic cable with FRP reinforcement core can be installed close to the power line and power supply device, and will not be interfered by the induced current generated by the power line or power supply device.

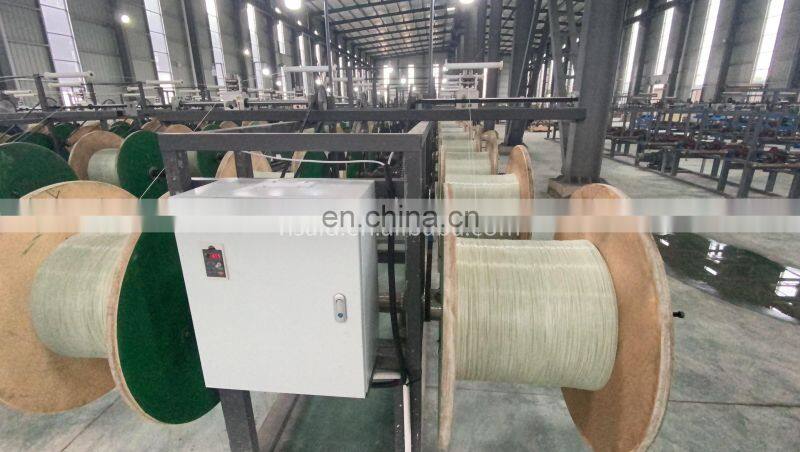

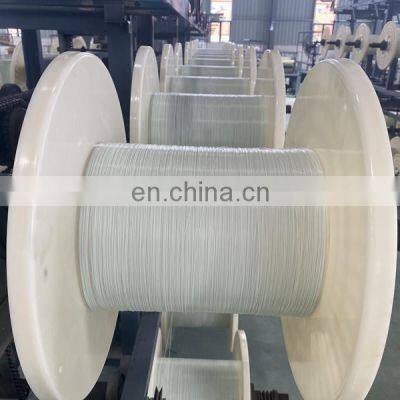

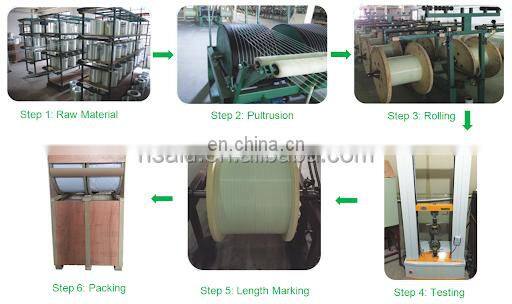

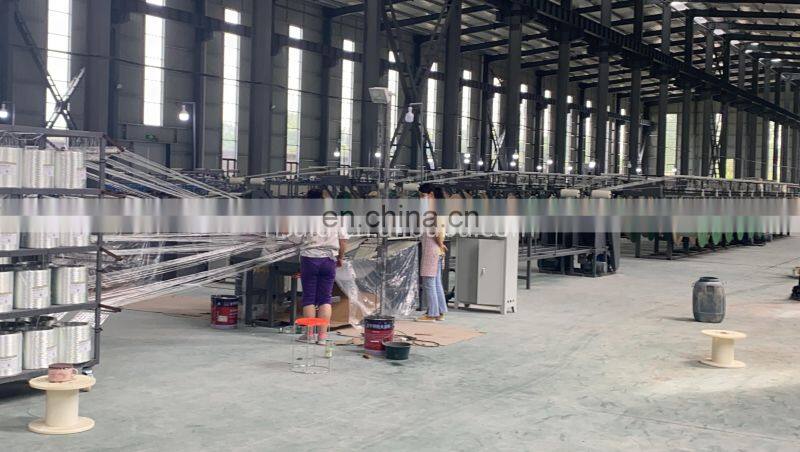

Production process

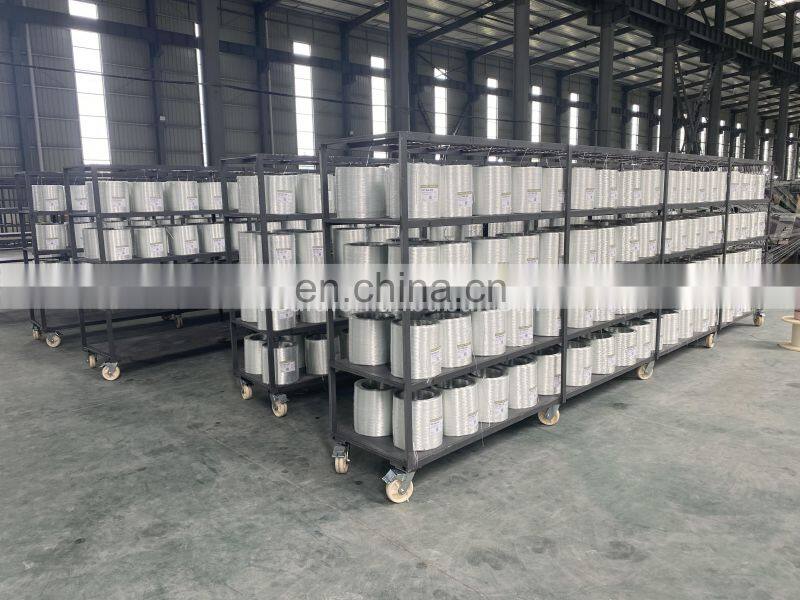

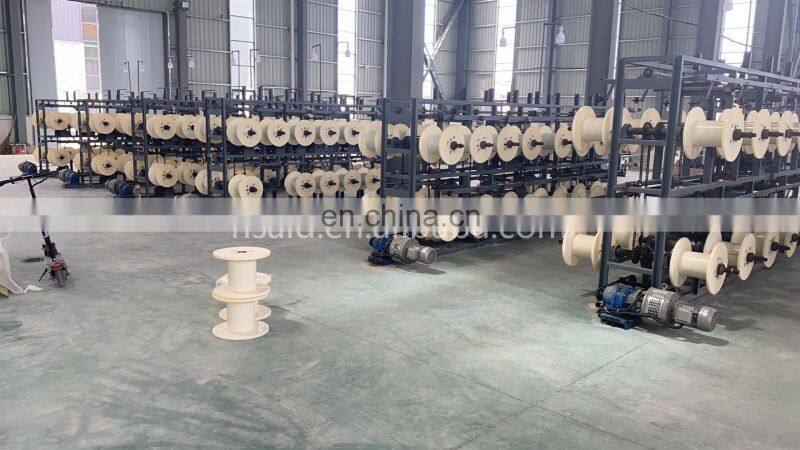

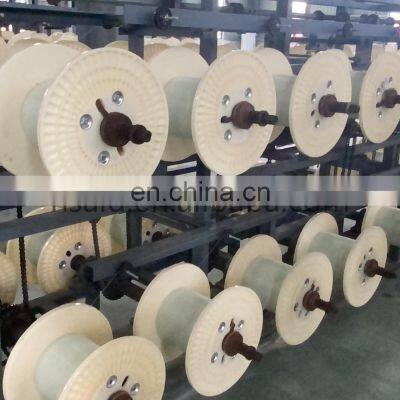

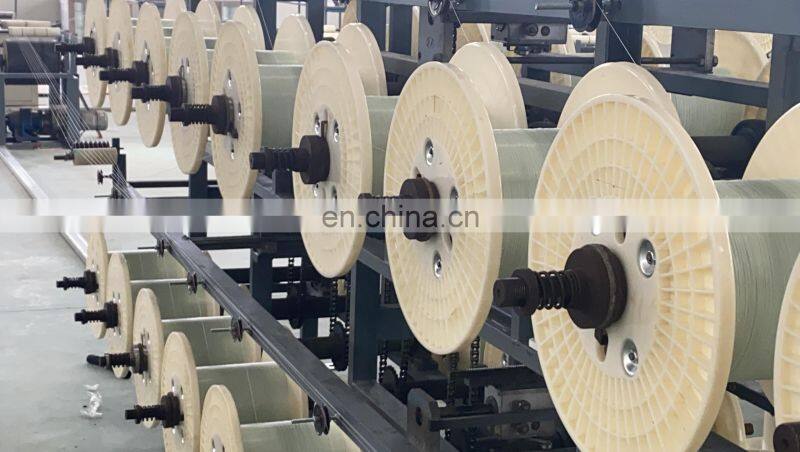

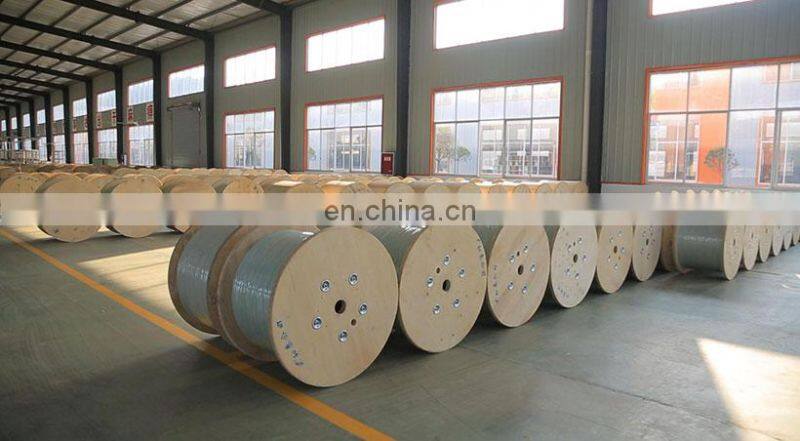

Production workshop

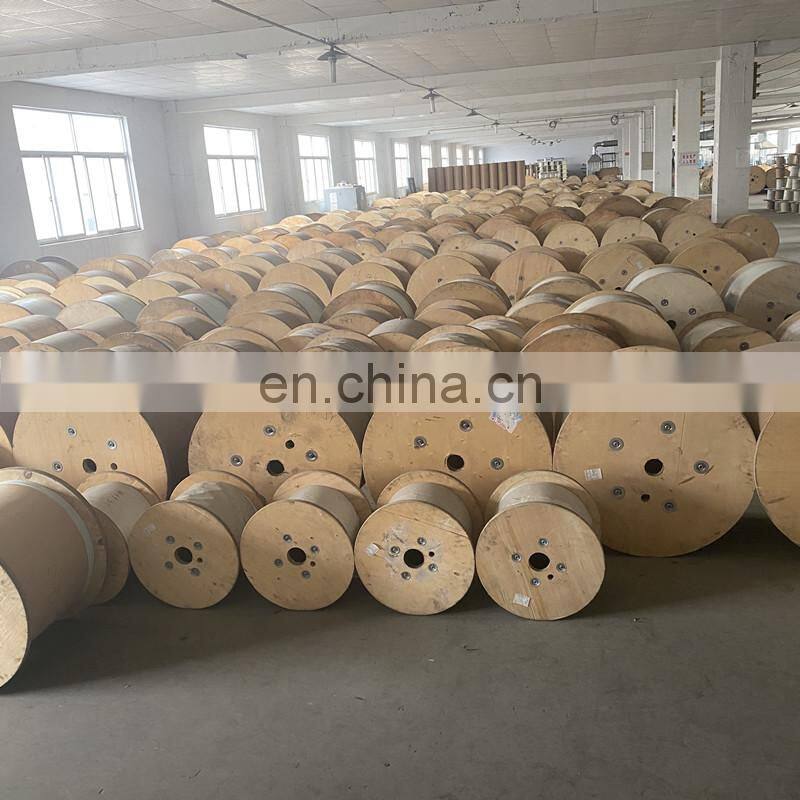

Packing & Delivery
Company Profile
Hengshui Aoliande Trade Co., Ltd. is professional company which to market & sell FRP Pipe, FRP storage tank, FRP molded products, FRP pultrused products and FRP production machines, through the continuous development and introduction of professionality and technology, the company rely on advanced technology, exquisite craftsmanship, reliable quality and perfect service, passed ISO9001, ISO14001, OHSAS18001 management system certification, now we have 50+ staff, annual sales of glass fiber reinforced plastic series products achieved 5,000,000 USD, products have been sold to all over the world, USA, Brazil, Japan, Germany, India, Malaysia, Egypt etc, and won the support and trust from new & old customers.
Major products:
FRP vessel and chemical equipment in sets;
FRP high, medium & low pressure pipe
FRP septic tank
FRP molded & pultrused products
Electrolytic cell
S/F, F/F oli storage tank
Whole set of FRP prodcution machines
FAQ
Q: Are you trading company or manufacturer ?
A: We are a company with trading company and factory together. Our trading company is named Hengshui Aoliande Trading Co., Ltd and factory named Hengshui Jiubo Composites Co., Ltd.
Q: I didn't find the size I need, can you make it per my requirements?
A: For FRP products, all size can be customized. We can make it per client's requirement.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls send inquiry to us directly.
