Home > Products > FRP pultruded profiles > Customize Shaped U FRP Rebar Fiberglass l Shaped Elbow 90 Plastic Rebars
Customize Shaped U FRP Rebar Fiberglass l Shaped Elbow 90 Plastic Rebars
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Factory Supply Road Drainage Channel Rain Gutter, Rain Drainage System
-
Anti-aging FRP Fiberglass Drainage Sink Drainage Channel
-
High Quality Roadway Resin U Type Concrete Water Drainage Channel
-
Heavy Duty Anti-corrosion U-shaped FRP/GRP Drain Trench
-
Polymer Concrete Gutter U-shaped Finished Drainage Ditches Precast Polymer U Drainage Channel
-
U-shaped Finished Drainage Ditches Precast Polymer U Type Drain Polymer Resin Concrete Drain Channel for Municipal Sewer Systems
Product Description
Product Description
GRP FRP Rebar Basalt rebar
As a reinforcing material, glass fiber reinforcement is a composite material composed of synthetic resin as matrix material and mixed with appropriate amount of auxiliary agents. Compared with ordinary steel reinforcement, it has many advantages.
Its absolute anti-corrosion performance, thermal insulation, high tensile strength, easy cutting, light weight and other characteristics play an important role in major civil engineering.
Brief introduction to fiberglass rebar
Type: fiberglass rebar and basalt rebars.
Size: Φ6mm～Φ40mm.
Main materials: fiberglass, mesh fiberglass cloth, basalt fiber, vinyl resin, curing agent, etc.
Color: black, green, brown or Customized.
Physical Properties
Density: The density of fiber composite bars is between 1.9-2.1 g/cm³, which is only 1/4 of that of steel bars.
Typical Density Table of Fiber Reinforced Rebar:
Steel rebar | Fiberglass rebar | Basalt rebar | Carbon fiber rebar | Aramid fiber rebar |
7 | 1.25-2.10 | 1.90-2.10 | 1.50-1.60 | 1.25-1.40 |
Mechanical properties
1. Brinell hardness: ≥60
2. Life: ≥ 60 years (minimum) tested in an alkaline environment of PH13
3. Creep: When the continuous load is not higher than 60% of the short-term load, the fiber tendons will not undergo creep rupture.
4. Forming and bending: The strength after bending and forming can still reach 40% of the ultimate strength.
Performance comparison of several rebars:
Name | Basalt fiber rebar | Steel rebar | Copper bars |
Tensile strength (MPa) | ≥1000 | ≥500 | ≥430 |
Yield strength (MPa) | ≥600 | ≥300 | ≥340 |
Elastic Modulus (GPa) | ≥50 | ≥200 | ≥110 |
Relative density (g/cm3) | 1.9-2.1 | 7.9 | 8.9 |
Main Features of GFRP Rebar
(1) Explosion-proof and anti-static: very good for building space tunnels, because no sparks are generated when cutting.
(2) High tensile strength and strong bearing capacity.
(3) Easy to operate: It can be easily used in roadways, mines and other space places.
(4) Easy cutting, can protect the tool and make the tool life long, specially used for subway construction
(5) Light weight: Compared with steel bars, the weight is only 1/4, which reduces the transportation cost and makes the construction easier.
(6) Easy to bend according to your request size and style. But only customized at the factory.
(6) Easy to bend according to your request size and style. But only customized at the factory.
(7) Corrosion-resistant, can be used for some special projects.
(8) Save construction costs

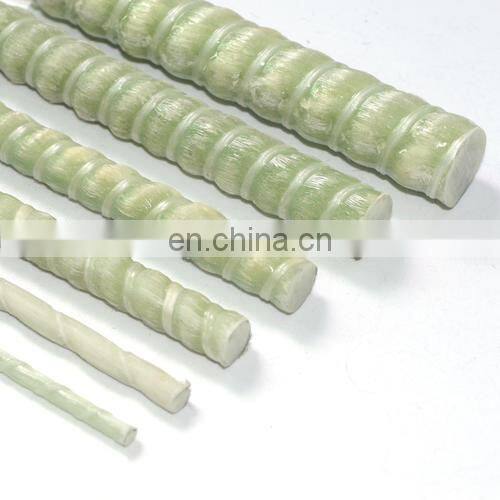

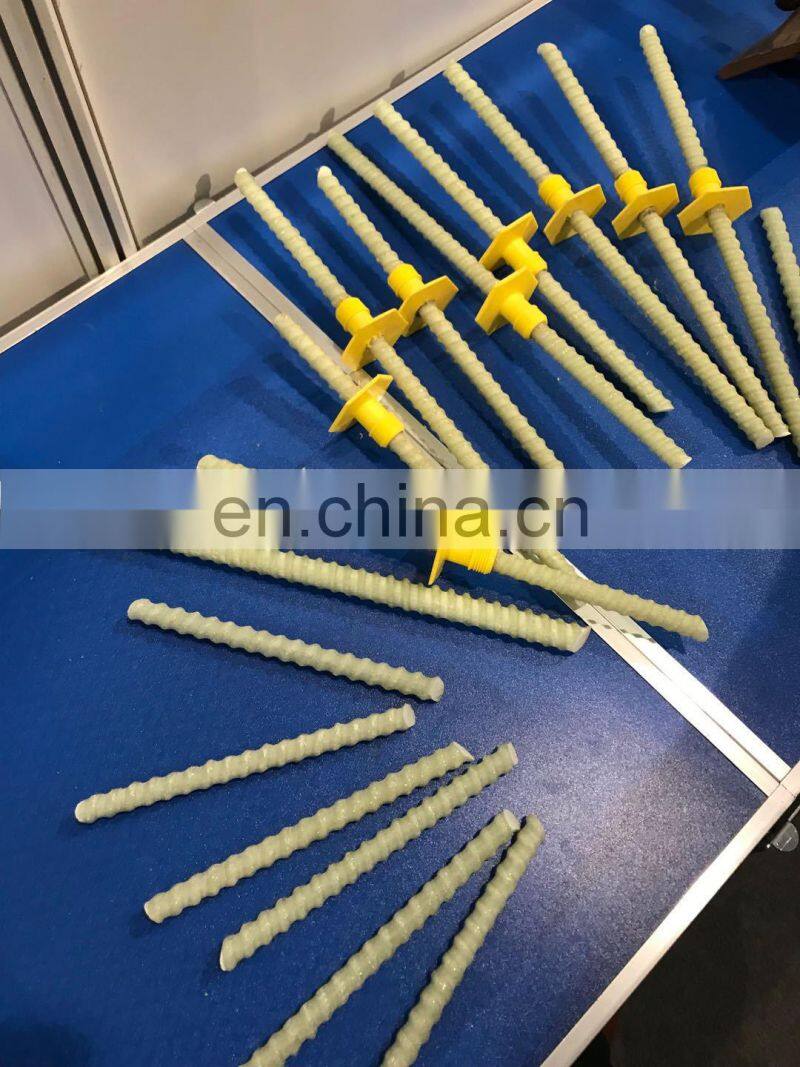

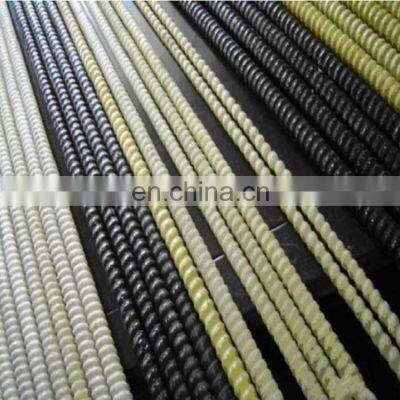

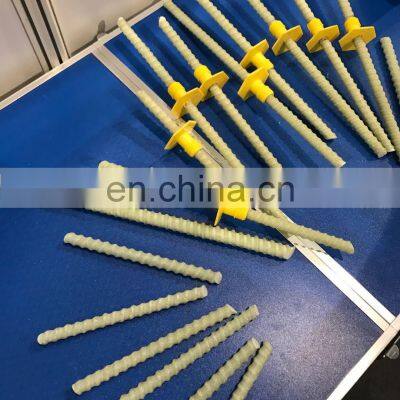

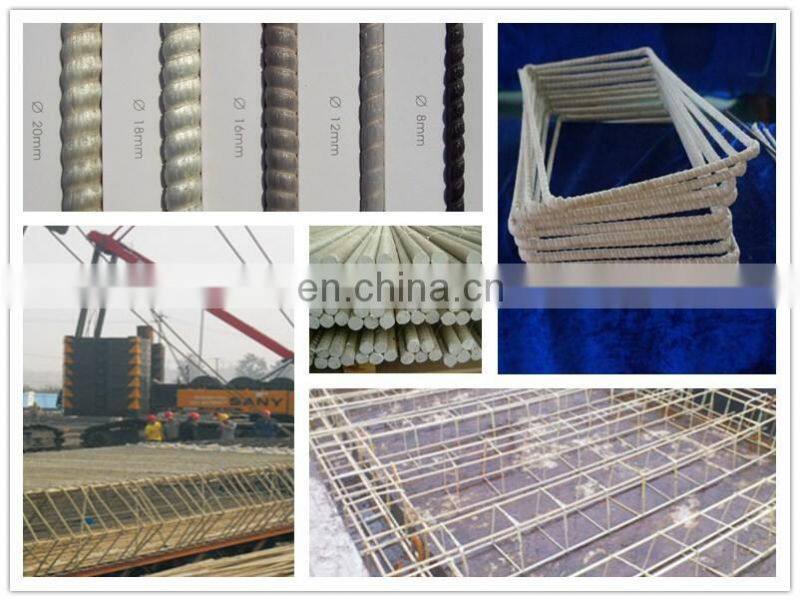

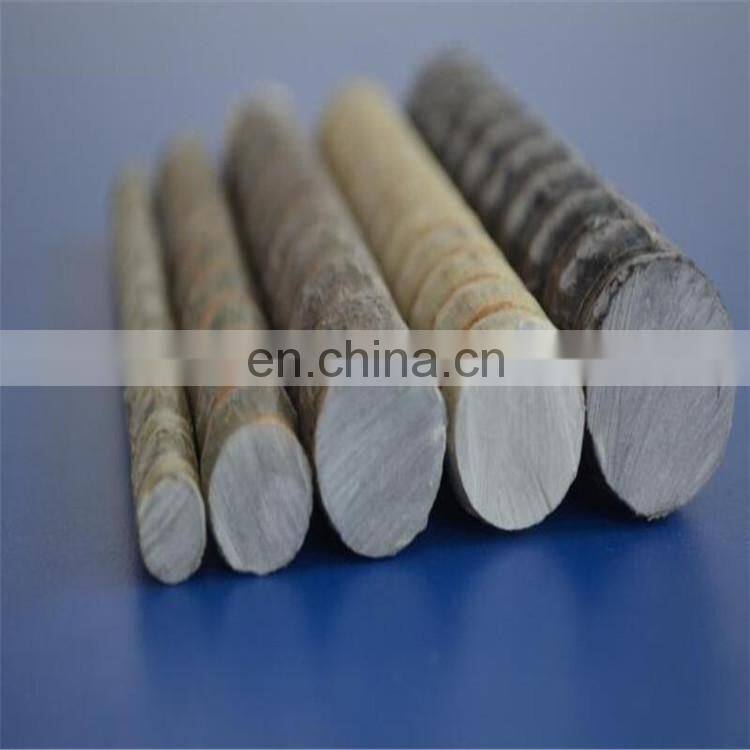

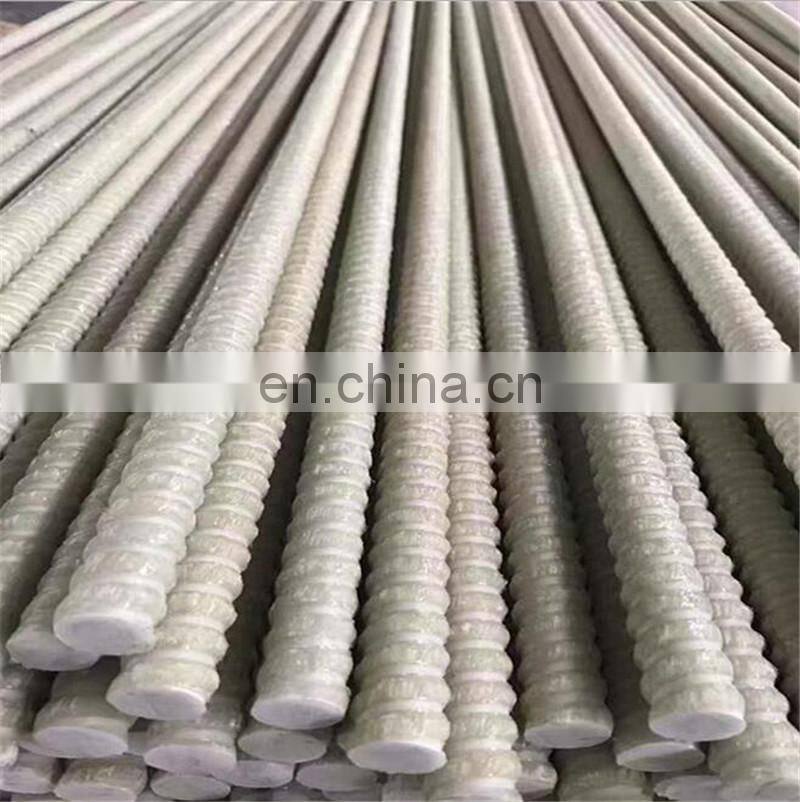

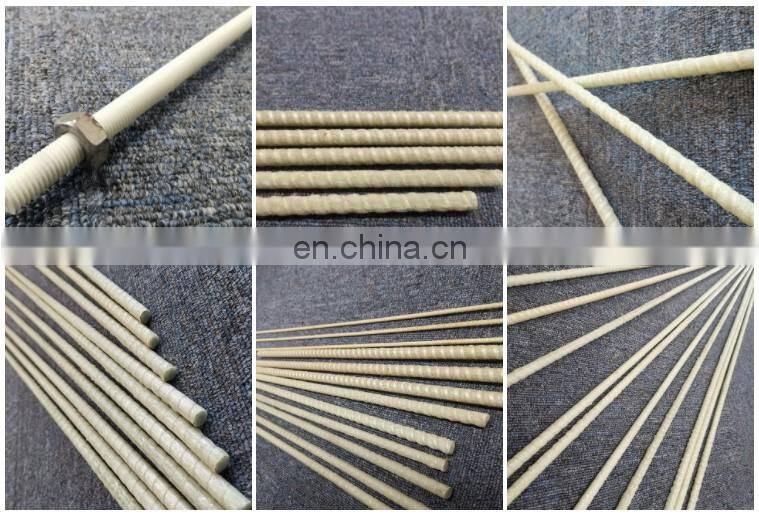

Detailed Images

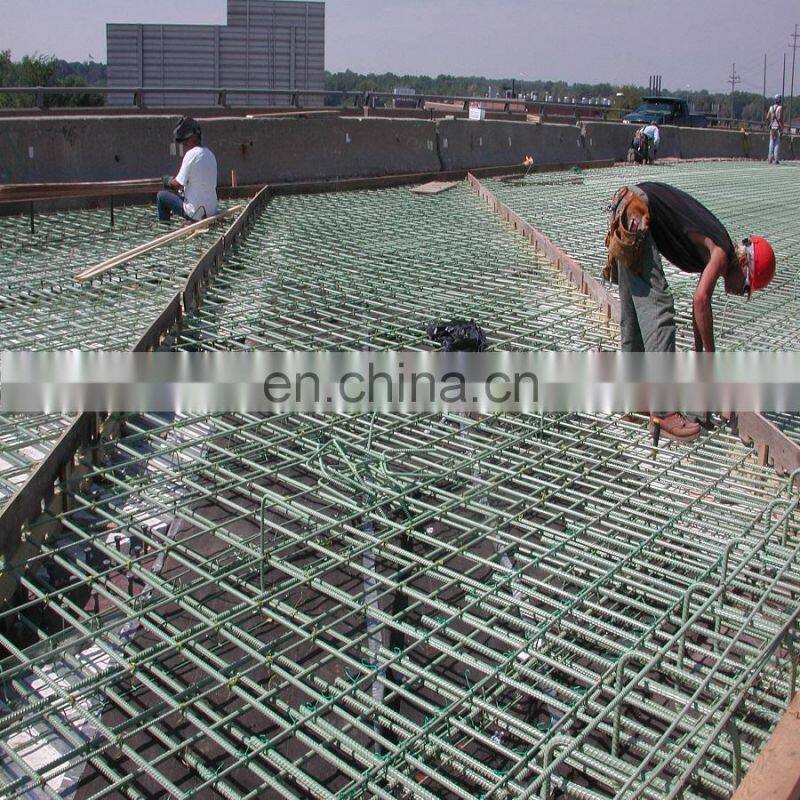

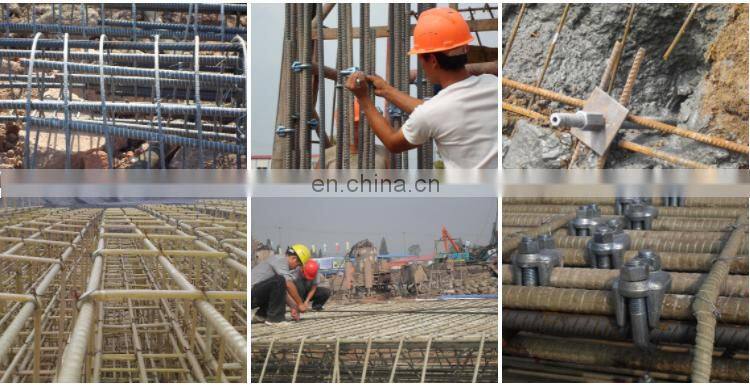

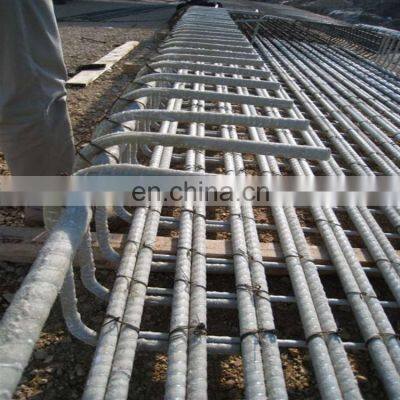

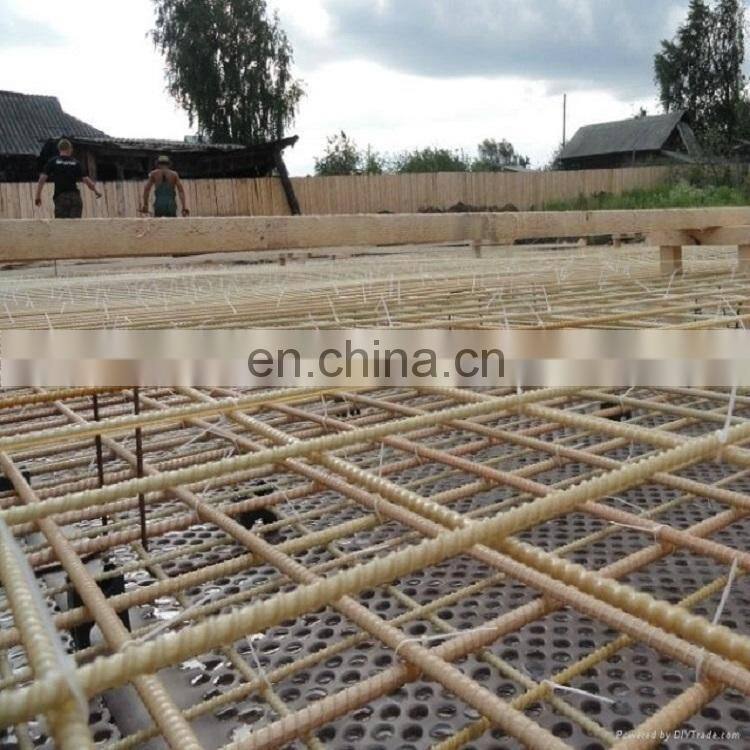

Application of fiberglass rebars
Such as construction, transportation industry,coal mine tunnel,parking structures, half coal roadway, slope support, subway tunnel, rock surface anchoring, sea wall and dam etc.
(1) Highways; sidewalks, bridges, garages, culverts, concrete roads
(2) Marine environmental infrastructure: wharf, caisson, wharf, underwater tunnel, pile, drilling platform, port equipment
(3) Architecture
(4) Corrosive environment: storage tanks for petrochemical products, pulp and paper industry, application of wastewater, septic tanks
(5) Ground and underground structures: cement slabs, retaining walls, tunnel reinforcement, tunnel corridors,
(6) Structures requiring electromagnetic neutrality: hospitals, aluminum smelters, airports, floors of production facilities, military accessories, utility tool accessories
Product Specification
Name | Specification(Diameter)(mm) | Weight(kg/m) |
FRP rebar | 6 | 0.07 |
8 | 0.12 | |
10 | 0.18 | |
12 | 0.22 | |
14 | 0.37 | |
16 | 0.48 | |
20 | 0.58 | |
22 | 0.8 | |
25 | 0.97 | |
28 | 1.15 | |
30 | 1.3 | |
32 | 1.55 | |
34 | 1.8 | |
36 | 2.1 | |
38 | 2.3 | |
40 | 2.54 |

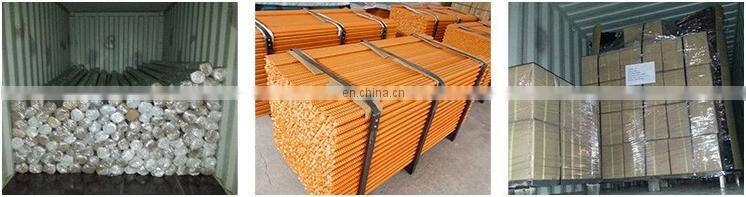

Packing and Shipping
Company Profile
Hengshui Aoliande Trade Co., Ltd. is professional manufacturer of FRP Pipe, FRP storage tank, FRP cooling tower, FRP molded products, FRP pultruded products and relative FRP production machines & technology. Through the continuous development and introduction of professional technology, our company rely on advanced technology, exquisite craftsmanship, reliable quality and perfect service, passed ISO9001, ISO14001, OHSAS18001 certification, our annual sales of glass fiber reinforced plastic series products achieved 20,000 tons.
Why choose us
We specialize in this field for several years with top quality competitive price and best service. More advantage we can supply:
Manufacturer
Superior quality&Good service
Timely delivery&Competitive price
ISO9001:2008
Special size is available
OEM support
Low MOQ
1.More than 10 Years manufacturing experience.
2.Professional research and development team
3.Zero Customer Complaints for several Years
4.Human-based management
5.Environmental Protection
6.Excellent after-sales service.
Our service
We offer professional products and fast delivery.
We will help you solve problems when you use our products.
Any question can turn to the technology department of our company.
1. Fast delivery (Our factory has high production capacity and there is enough inventory to insure fast delivery for you)
2. Competitive price (We are manuafacturer of our products, so we can provide you both high quality products and competitive price)
3. Quick response each inquiry within 24hours
4. Quality control strickly
5. Quick delivery imporve your effciency

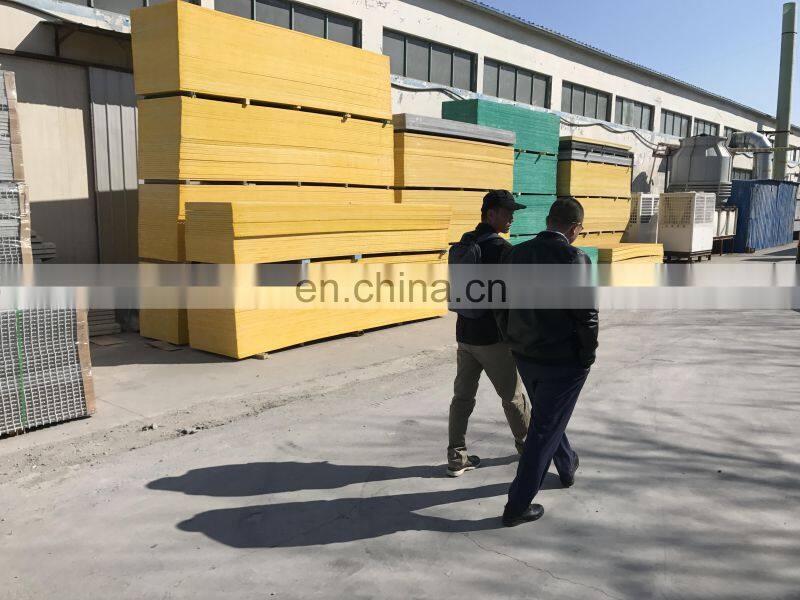

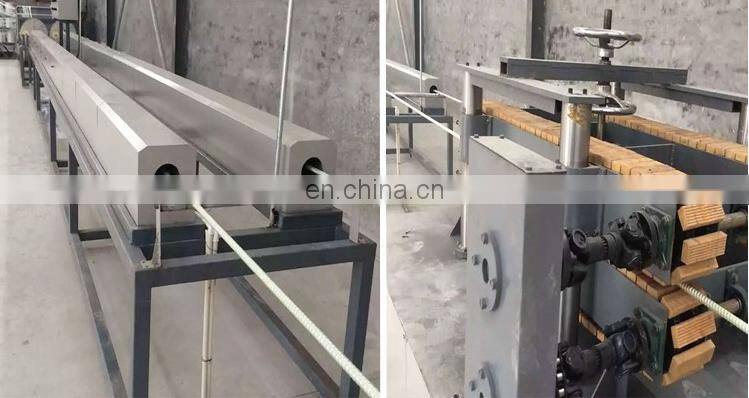

Our factory
Our customers
Our certificates
FAQ
Q: Are you a trading company or a manufacture factory?
A: We are both manufacturer trading and company. We have our own factory, and we have better service of overseas customers. Welcome to send your inquiry!
Q: Can your factory customize the machine for clients ?
A: Yes, we can.
Q: What is your payment terms ?
A: Normally,50% as the deposit first by T/T, the rest 50% will be paid before shipping by T/T.
Q: How about after-sales service ?
A: 1 year free warranty, Lifetime technical service support.
