Top quality hot sell air conditional cooling tower fills

Air Intake louvers applications

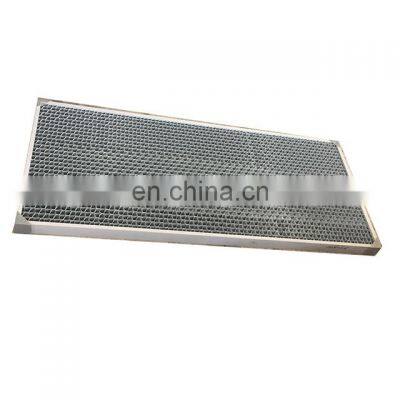

CL-100 Cellular Inlet Louvers replace conventional cement asbestos and fiberglass blade-type inlet louvers in a wide variety of new and retrofit applications, including air inlets for both package and field-erected counterflow and straight-sided crossflow towers, fresh air make-up systems, air pollution control scrubbers, and VOC strippers.
Intake louvers Features and Benefits
• Constructed entirely of CTI Standard 136 PVC, for its durability, weather-resistance, and self-extinguishing fire characteristics
• Because of their cellular "baffle" design and black color, CL-100 modules significantly block sunlight (70:1 light reduction) that promotes algae growth on the interior surfaces of the cooling tower system. This reduces the cost of algae-removal chemicals and labor and allows the tower to operate more efficiently.
• The CL-100's baffle design also reduces noise leaving the tower through the louver modules by ≈3 decibels.
• Proprietary, engineered cellular baffling restricts splash-out, light, weather, and noise but still achieves very low pressure drop results.
• Convenient, pre-assembled modules are 1 ft (305 mm) wide, 2.5 inches (63.5 mm) deep, and available in lengths from 1 ft (305 mm) to 10 ft (3050 mm).
• To make installation easier and to allow easy access for cleaning and maintenance, the optional CL-100 Assemblyhouses multiple CL-100 modules in a single extruded PVC "frame" with mounting flanges available on 1, 2, or all 4 sides.

Inlet louvre applications
Cellular Inlet Louvers replace conventional cement asbestos and fiberglass blade-type inlet louvers in a wide variety of new and retrofit applications, including air inlets for both package and field-erected counterflow and straight-sided crossflow towers, fresh air make-up systems, air pollution control scrubbers, and VOC strippers.

If you have any require,please contact us at any time!

Please contact me ,click here:"send"
