Home > Products > ADSS Cable > Free samples available Outdoor G652D Fiber Optical Cable Non-metallic central strength member Adss 4 Core
Free samples available Outdoor G652D Fiber Optical Cable Non-metallic central strength member Adss 4 Core
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
Loose Tube Non-metallic central strength member for Medium Spans SM fibers 12 fibers per tube ADSS Fiber Optic Cables
-
50, 100, 200m Span Fiber Optic Aerial Single Mode 12 24 48 96 144 Count Self Supporting ADSS Cable
-
Free samples available Outdoor G652D Fiber Optical Cable 144 core singlemode aerial adss cable
-
outdoor self supporting aerial kevlar non armoured communications single mode multimode adss fiber optic cable
-
Professional Factory All Dielectric Self-Supporting G652d Adss 4 Core Adss Fibre Optical Cable
-
GL Self-supporting Aerial fibra optica ADSS with 200m 250m Span 12 core 24 core with aramic yarn

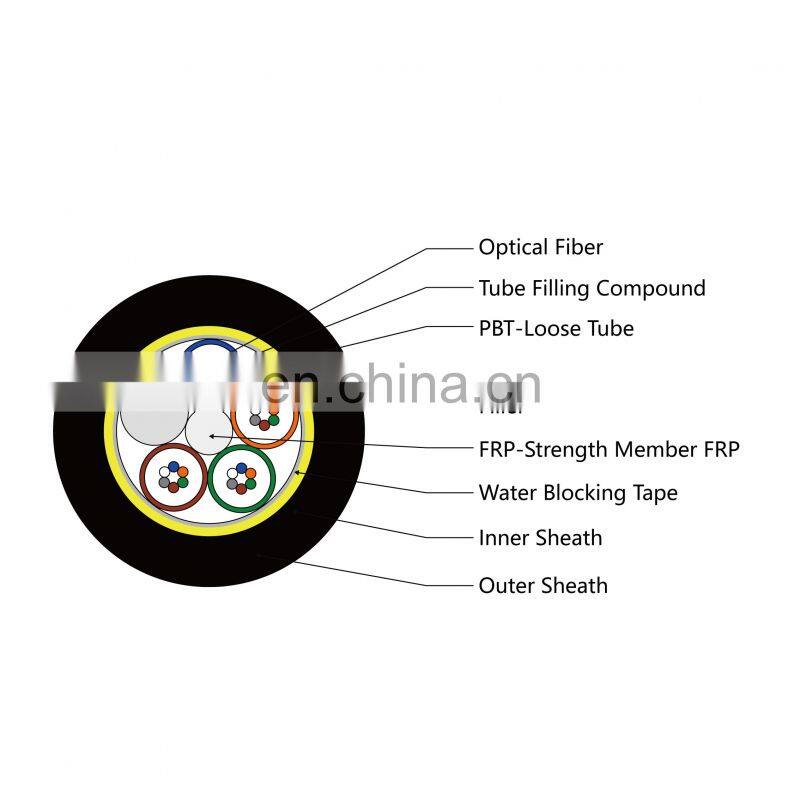

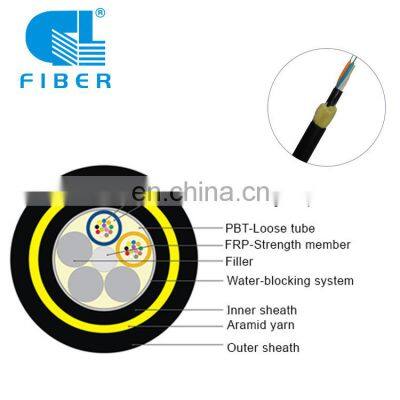

Product Description
Product Description
Fiber count | 12 |
Max. No of loose tube / filler No. | 4/2 |
Number of fiber in tube | 6 |
Gel filled in Loose tube | Yes |
Central strength member | FRP |
Water blocking material | filling gel in cable |
Outer sheath thickness | 1.8-2.0mm |
Outer sheath material | HDPE |
Cable OD(mm)Approx | 10.5±0.2mm |
Cable weight (kg/km) | 81 |
Operation temperature range | -40 ℃to + 70 ℃ |
Installation temperature range | -40 ℃to + 70 ℃ |
Transport and storage temperature range | -40 ℃ to + 70℃ |
Span | 100m |
Suitable for lines | ≤35KV If the cable will be used on the more than35KV,the Outer Sheath material must be Anti-tracking (AT) |
Rated tensile strength (KN) | 1.2 |
Maximum allowable tensile(KN) | 0.5 |
Crush resistance | Installation :2200 (N/100mm) Operating :1100N/100mm |
Minimal installation bending radius | 20 x OD |
Minimal operation bending radius | 10 x OD |
The fibres shall be marked by a coloured coating with 12 different colours according to EIA/TIA 598:
Get One Stop Service
Click to "Contact" Us
One-to-one Service
We provide One to One Customized Service for you 24 hours online.
We are here to help you achieve your network goals. Whether that is through network design, detailed engineering, construction or management of your project, GL has the experience to help make your network upgrade a success.
Why Choose Us
Related Products

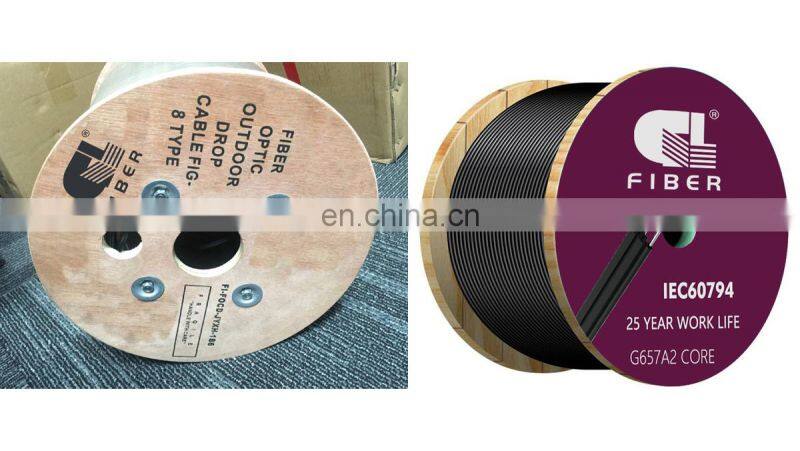

Packing&Shipping
Company Introduction
FAQ
1.Are you the real manufacturer?
Us. We are the real manufacturer with 15 year’s history.
2.What’s the MOQ?
Us. The MOQ of Fiber Optic cable is 1km.
3.What’s delivery time?
Us. The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
4.How to Store the Optical Fiber Cable Properly?
Us. Store the drum indoor before using, the drum should place sideways not on the end.
5. Can you supply customized products and logo?
Yes. We supply OEM service. You can send us your drawing.
6.What’s your payment terms?
Us. We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.
Us. We are the real manufacturer with 15 year’s history.
2.What’s the MOQ?
Us. The MOQ of Fiber Optic cable is 1km.
3.What’s delivery time?
Us. The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
4.How to Store the Optical Fiber Cable Properly?
Us. Store the drum indoor before using, the drum should place sideways not on the end.
5. Can you supply customized products and logo?
Yes. We supply OEM service. You can send us your drawing.
6.What’s your payment terms?
Us. We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.
