Product Description

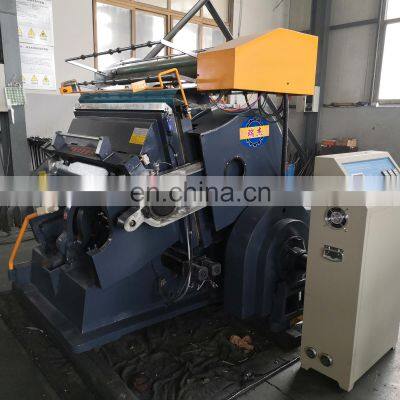

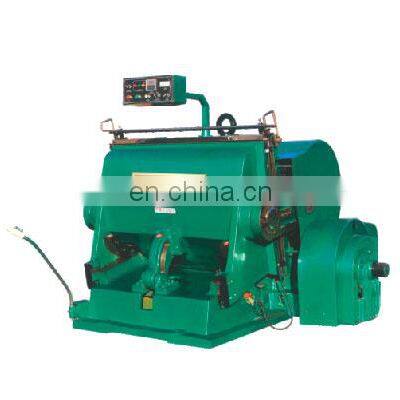

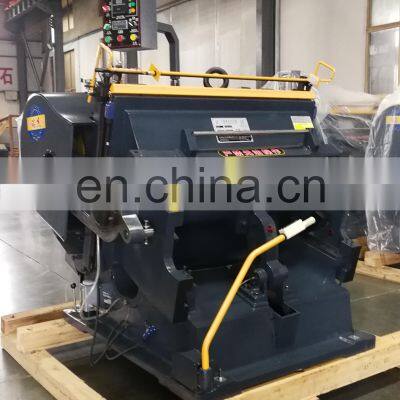

ML 750 creasing and die-cutting machine pizza box making machinery
Main Structure Features:
1 The sliding bearings use high quality cast copper alloy, anti-grinding and vibration reduction.
2 The torque of flywheel is big, the force of press and cutting are high.
3 The body of the machine adopts the high quality materials casts in whole body. High strength, and good rigidity.
4 Single-disc electromagnetic clutch moves fast, and it is reliable.
5 It owns single press & cutting, uninterrupted press & cutting and time-delay open functions, the range of time-delay can be adjusted according to your wish.
6 The operating height is designed reasonably; the pressing frame’s opening angle is big
7 Centralized lubricating system guarantees the well lubricating, and lessees the abrasion.
8 Reliable safe protecting systems.
Spec:
|
Model |
Inner Chase Size |
Speed(Strokes/min) |
Max Scoerer & Puncher Length |
Power of Motor |
Weight |
Overall Dimensions (mm×mm×mm) |
|
203C |
930×670mm |
23±3 |
<25m |
4kw |
3000kg |
1820×1600×1700 |
|
750 |
750×520mm |
25 |
<15m |
2.2kw |
2000kg |
1520×1370×1600 |
|
1100 |
1100×800mm |
20±2 |
<30m |
5.5kw |
4500kg |
2030×1870×1800 |
|
1200 |
1200×820mm |
20±2 |
<32m |
5.5kw |
5000kg |
2070×1970×1810 |
|
1300 |
1300×920mm |
15±2 |
<40m |
5.5kw |
6000kg |
2220×2200×2110 |
|
1400 |
1400×1000mm |
15±2 |
<45m |
7.5kw |
6500kg |
2320×2200×2110 |
|
1500 |
1500×1050mm |
14±2 |
<45m |
7.5kw |
7000kg |
2420×2200×2110 |
|
1500A |
1500×1150mm |
14±2 |
<45m |
7.5kw |
7500kg |
2420×2200×2260 |
|
1600 |
1600×1250mm |
13±2 |
<50m |
11kw |
11500kg |
2730×2290×2560 |
|
1800 |
1800×1280mm |
13±2 |
<62m |
15kw |
14000kg |
2920×2300×2660 |
|
1800A |
1800×1400mm |
12±2 |
<65m |
15kw |
15500kg |
2920×2300×2800 |
|
2000 |
2000×1400mm |
20±2 |
<30m |
15kw |
15500kg |
3120×2330×3340 |
|
2200 |
2200×1400mm |
12±2 |
<68m |
18kw |
16500kg |
3300×2330×3340 |
|
2500 |
2500×1400mm |
12±2 |
<70m |
18kw |
18500kg |
3600×2330×3340 |
Xinhua(Ouguan) packing machinery co.,ltd
Xinhua(Ouguan) welcome you!
LCL : Normal package is wooden box (size : L×W×H). Wooden box will be fumigated . We use strong export stander wooden box pack all machine ,in this case ,machine can be protected very well.
FCL : Machine is to heavy or big , we can choose full container loading . we use PE Film packing then loading to container .
Others : According to customer’s special request .
1. We need to test the machine working condition before delivery to customer country.
2. If you need our engineers install and teach you how to operate machine, we also can send our engineers to your country, but need you bear all fee: tickets, food, hotel and salary.
3. Our machine has one year warranty, during this period, if problems caused by our machine quality, we will change all parts for you by free .
If any questions, send me email by 24 hours, we also help you solve these problems.
