Product Description

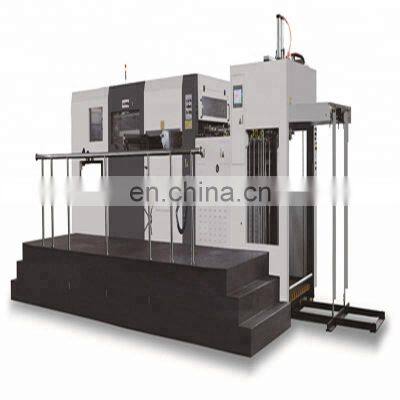

High Quality Automatic Die Cutting And Creasing Machine
Technical Parameters:
|
Item |
Parameters |
|
|
Model |
MY-1060 |
|
|
Die cutting type |
Pressed flat die cutting(Lower side is movable while upper side is unmovable) |
|
|
Max paper transmitting size |
1060*750mm |
|
|
Min paper transmitting size |
400*370mm |
|
|
Max die cutting size |
1050*730mm |
|
|
Min gripper size |
5mm |
|
|
Max die cutting pressure |
300N/cm² |
|
|
Paper processed |
Ivory board |
0.1-0.3mm |
|
Corrugated board |
Less than 4mm |
|
|
Die cutting precision |
±0.1mm |
|
|
Max die cutting speed |
6500 sheets/h |
|
|
Max feeding pile height |
1000mm(above the level) |
|
|
Min feeding pile height |
1000mm(above the level) |
|
|
Total power |
13.5kw |
|
|
Total weight |
15T |
|
|
Overall size |
7650*2100*2100mm (Not including the pedal) |
|
Main parts, Material and Appliance Disposition:
|
No. |
Item |
Model |
Manufacturer |
Remarks |
|
1 |
Worm wheel |
ZQAL9-4 |
|
With scraping the inquiry |
|
2 |
Curved shaft |
40Gr |
|
High frequency quenching |
|
3 |
Worm pole |
40Gr |
|
Tempering, high frequency, grinding |
|
4 |
Platform |
QT42-10 |
|
Resin sand casting |
|
5 |
Version box |
|
|
Double reinforcement |
|
6 |
Steel plate |
70Cr |
Dazhi, Hubei |
Hardness:HRC50-55 |
|
7 |
Gripper tooth raw |
|
|
Duralumin |
|
8 |
Transmitting chain |
Renold |
Renold,UK |
|
|
9 |
Pneumatic clutch |
|
Yuyi, Italy |
|
|
10 |
Frequency |
|
Fuji |
|
|
11 |
PLC |
|
Vigor, Taiwan |
|
|
12 |
Man-machine interface |
|
Samkoon |
|
|
13 |
Main motor |
Siemens |
Germany |
|
|
14 |
Paper feeding collecting motor |
|
Wanxin, Taiwan |
|
|
15 |
Track bolt bearing |
JMC |
South Korea |
|
|
16 |
Magnetic valve |
AIRTAC |
Taiwan |
|
|
17 |
Button |
|
Schneider |
|
|
18 |
Relay |
|
Schneider |
|
|
19 |
Contactor |
|
Fuji |
|
|
20 |
Optoelectronic switch |
|
Omron |
|
|
21 |
Travel switch |
|
Omron |
|
|
22 |
Oil pump |
|
WLP,Taiwan |
|
|
23 |
Fiber-optic switch |
|
Preco,Taiwan |
Sample:
