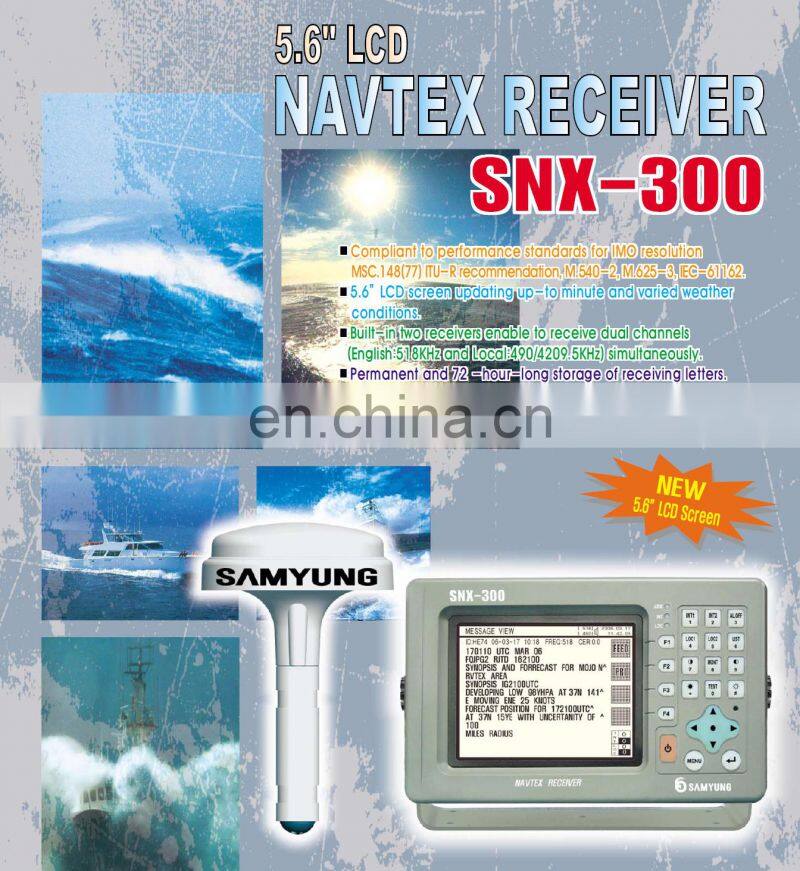

Marine electronics nautical navigation communication IMO SAMYUNG SNX-300 collision avoidance navigational telex NAVTEX receiver

Please contact me before purchasing for the shipment and product price and detailed configuraiton.

If you want to make bulk purchase or be our agent, please contact with us.

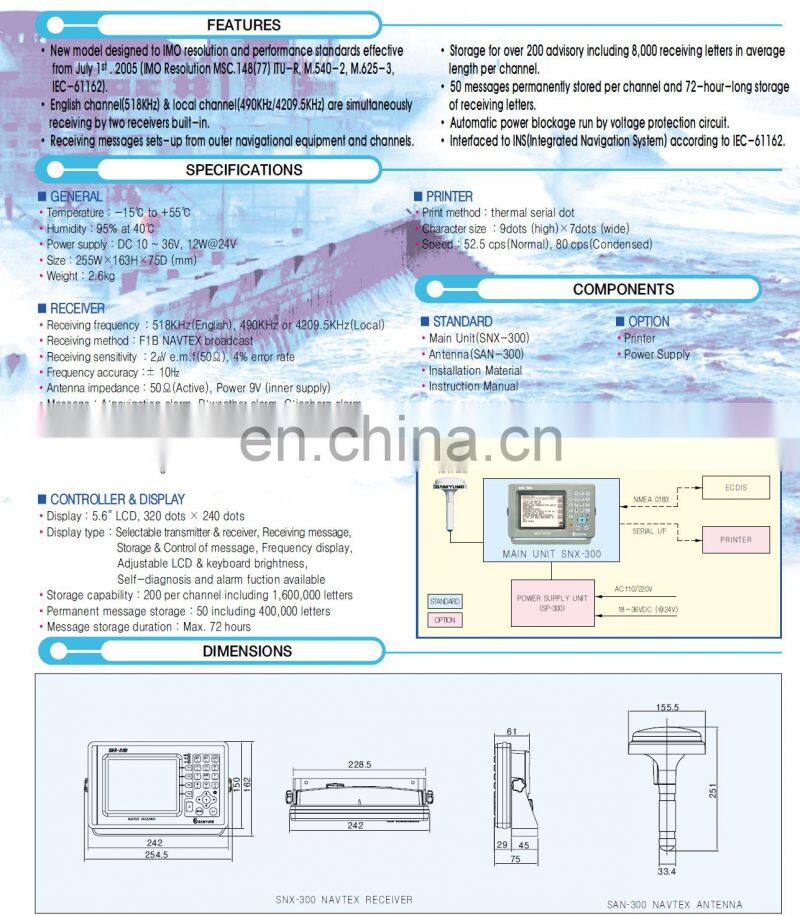

Specifications

 GENERAL

•Temperature : -15℃ to +55℃

•Humidity : 95% at 40℃

• Power supply : DC 10 ~ 36V, 12W@24V

• Size : 255W×163H×75D (mm)

• Weight : 2.6kg

 RECEIVER

•Receiving frequency : 518KHz(English), 490KHz or 4209.5KHz(Local)

•Receiving method : F1B NAVTEX broadcast

•Receiving sensitivity : 2UV e.m.f(50Ω), 4% error rate

•Frequency accuracy :± 10Hz

•Antenna impedance : 50Ω(Active), Power 9V (inner supply)

•Message :

  - A : navigation alarm

  - B : weather alarm

  - C : iceberg alarm

  - D : R&S, E:weather forecast

  - F : Pilot message

  - G : AIS message

  - H : LORAN message

  - J : SATNAV message

  - K : Other navigational aid message

  - L : additional navigation alarm

  - Z : no message

 CONTROLLER & DISPLAY

•Display : 5.6 LED, 320 dots × 240 dots

•Display type : Selectable transmitter & receiver, Receiving message, Storage & Control of message, Frequency display, Adjustable LCD & keyboard brightness,Self-diagnosis and alarm fuction available

•Storage capability : 200 per channel including 1,600,000 letters

•Permanent message storage : 50 including 400,000 letters

•Message storage duration : Max. 72 hours

 PRINTER

• Print method : thermal serial dot

•Character size : 9dots (high)×7dots (wide)

• Speed : 52.5 cps(Normal), 80 cps(Condensed)
