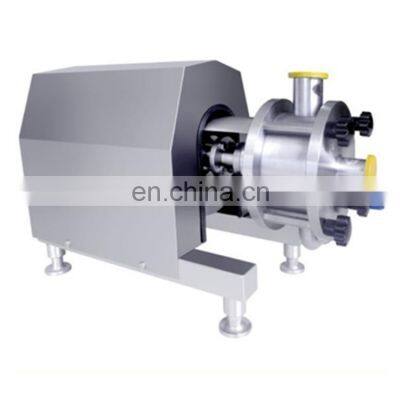

Online High Shear Emulsifier/Homogenizer/Mixer, Mixing Pump,Emulsifying Machine Stator Emulsifying Pump(single Stage)

    High shear emulsifier pump liquid mixed emulsification pump Inline High Shear Emulsification Pump

series emulsifying machine has head-end suction port, top discharging port and horizontal cantilever structure. The machine three groups or three stages of stator and high speed rotating rotor, each stage has two to six layers

Sealing: mechanical seal with lower leakage and longer service life. Single end-face or twin end-face mechanical seal as choice according to different application, and the twin end-face mechanical seal can be connected to clean tap water directly.

Characteristics: Higher shearing force, faster emulsifying procedure, smaller distribution of particle sizes and better emulsifying stability.

Working conditions: Pressure £18bar, vacuity ³0.3bar, material temperature £150^oC;

            Material Viscosity increases 1000mPa×s each time, nominal discharging flow rate decreases 20%. When viscosity reaches about 3000mPa×s, the material must be pumped into machine.

             Anti-hazard classification can be chosen as desired.

Applications: Emulsifying (Liquid to liquid), suspending (solid to liquid), aerosol making (gas to liquid) and homogenizing painting, oil paint, food, coating material, metal- oxide suspension and water-in-oil or oil-in-water emulsion manufacturing, accelerating reaction speed, improving activator productivity, nano-chemical products producing.

Working Principle:

Pipeline high shearing-rate emulsifying machine has one group, two groups or three groups of stators and rotors in the working cavity. The machine has head-end suction port, top discharging port and horizontal cantilever structure.Every stage has 2 to 6 layers which consist of one group, two groups or three groups of stators and rotors.

The connection between motor and working head is flexible coupling. The shaft can be lubricated by grease or oil. It is easy to dismantle and assemble the machine and cost little for replacement of parts. Twin end-face mechanical seal is adopted. Applicable temperature is -20℃ - 140 ℃. If exceeding this temperature range, the machine can be customized. Interlayer is available outside the working cavity for the purpose of cooling or heating.

Advantages:

1.  High processing capacity, suitable for industrial continuous production
2.  Smaller distribution of particle sizes and higher evenness
3. Time-saving, energy-saving and high efficiency
4. Low noise and stable running
5. Eliminating the differences between the batch production
6. No dead corner, material by 100% dispensed and sheared
7. With the function of short distance and low lift transportation, availability for circular process
8. Easy operation and simple maintenance
9. Availability for automatic control
