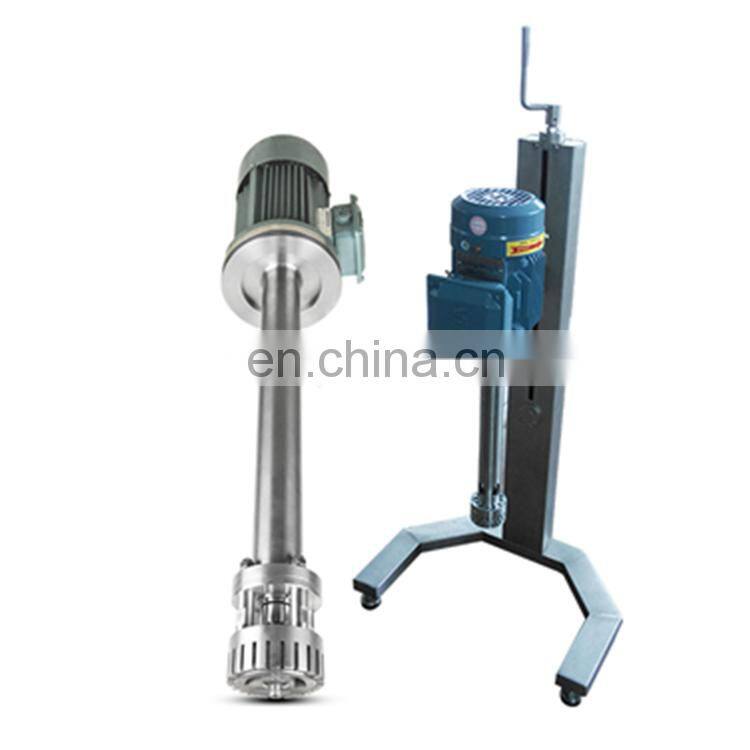

High Quality Industrial Juice Blender Mixer Emulsifier/Disperser/Commercial Machine

Automatic High Shear Emulsifier/Homogenizer For Food/Chemical Plant Machinery Equipment

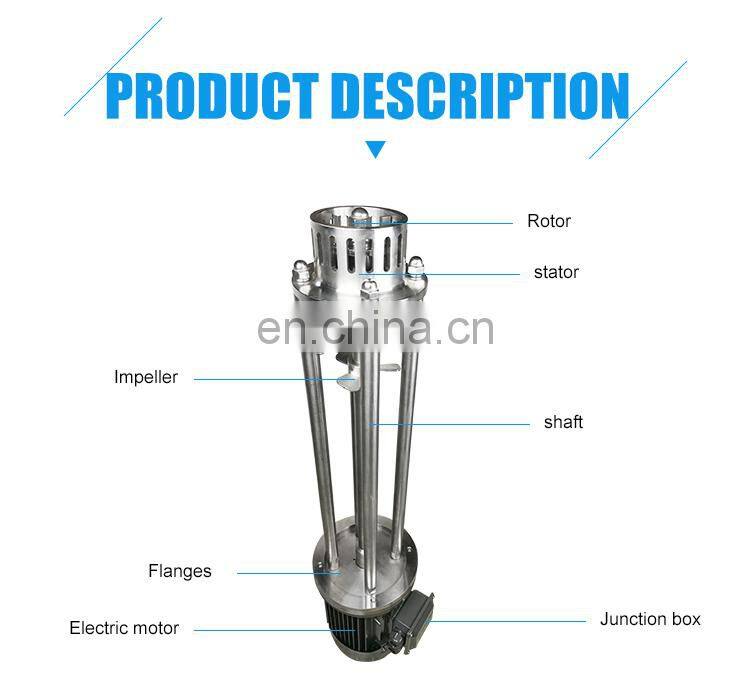

Structure:

Hydraulic lifting high shear speed homogeneous emulsifiers for lotion is efficient, rapid and uniform a phase or more of the phase distribution to another continuous phase, and in the usual case each phases are mutually insoluble. Due to the rotor is generated by high speed rotation high tangent speed and high frequency mechanical effect bring strong kinetic energy, so that immiscibility of solid phase,liquid phase and gas phase in the corresponding mature technology and right amount under the common function of additives, the instant uniform fine disperse emulsion, after high frequency move in circles, ultimately get the steady and high quality products.

Intermittent type high shear work process: In the high speed rotating rotor produced under the function of centrifugal force, and the material from the work of the head and the up and down feeding area at the same time from axial suction work cavity strong centrifugal force will material from the radial swing rotor and stator narrow gap between the precision. At the same time by centrifugal extrusion, impact and so forth function force, make a preliminary material dispersed emulsion. After adjustment rotating rotor outer end produce at least 15m/s more line speed, the highest can to 40m/s, and the formation of strong machine and hydraulic force shear,liquid layer friction,impact tear, make the material full dispersing,emulsifying,uniform,crushing, at the same time through stator slot injection. Material constant high speed from radial injection, in the material itself and the walls of the container under the resistance change flow direction, at the same time in rotor region of the upper and lower under the action of axial force, again form the upper and lower two strong flipping out of flow. Material after several circulation, finally complete dispersing,emulsion,homogeneous process.

high speed disperser homogenizer main use:

Mix:syrup,shampoo,clean solution,juice concentrate,yogurt,desserts,mix milk products,printing ink.

Emulsion:medicine lotion,ointment,face mask,emulsion flavor,oil-water emulsion,emulsion asphalt,resin emulsion,wax emulsion and pesticide.

Homogeneous:medicine lotion,ointment,face mask,tissue homogenate,dairy products homogeneous,frui

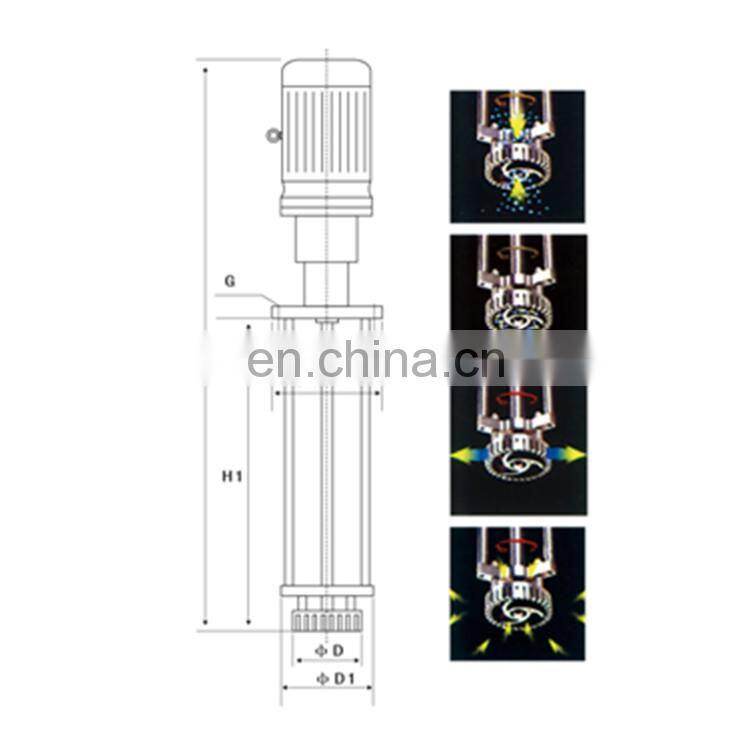

Intermittent high shear process:

1. Under the action of centrifugal force produced by a high-speed rotating rotor, the material in the drawing is simultaneously sucked into the working cavity from the upper and lower feeding areas of the working head.

2. strong centrifugal force swung the material from the radial to the narrow and precise gap between the rotor and the rotor. At the same time, it is subjected to centrifugal extrusion, impact and other forces, so that the material is initially dispersed and emulsified.

3. At the outer end of the high-speed rotating rotor, a linear velocity of at least 15 m/s can be generated, up to 40 m/s, and the formation of a strong mechanical and hydraulic shear, liquid layer friction, impact tear, so that the material is fully dispersed, emulsified, homogeneous, broken, and at the same time through the stator slot ejection. Emulsifier is through the high-speed rotation of the homogeneous head connected with the engine, the material is sheared, dispersed and impacted. This will make the material more delicate and promote oil and water blending. Sauce, juice and so on in the food industry. Ointment in the pharmaceutical industry. Petroleum chemical industry, paint, paint, ink and so on will use emulsification machine. Applications of mixing, stirring, dispersion, homogenization, emulsification and grinding in experimental or industrial processes.

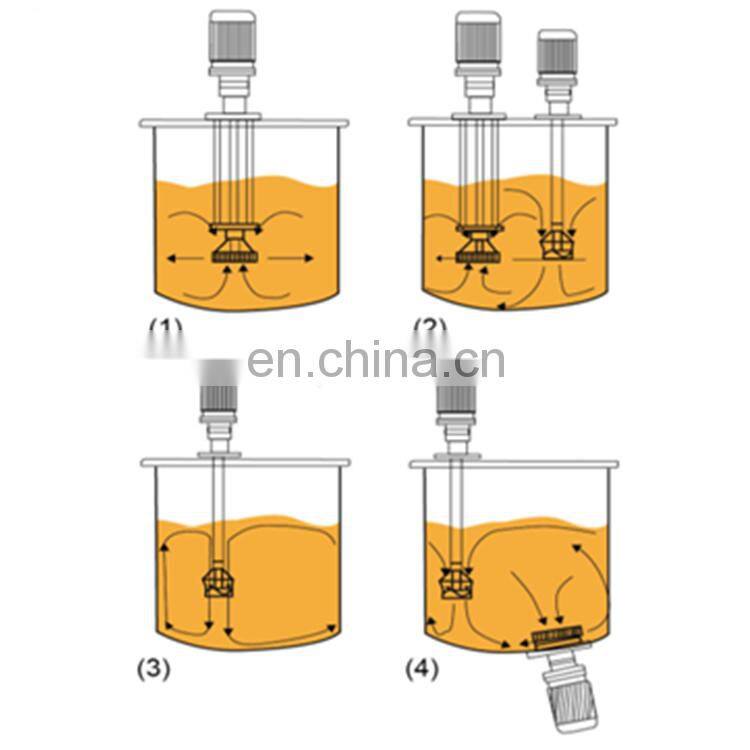

4. The material is continuously ejected from the radial direction at high speed, and the flow direction is changed under the resistance of the material itself and the vessel wall. At the same time, under the action of the axial suction produced by the rotor region, the upstream and downstream turbulent flows are formed. After several cycles, the material will eventually be dispersed, emulsified and homogenized.
