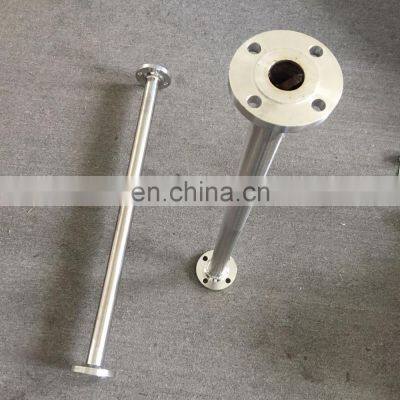

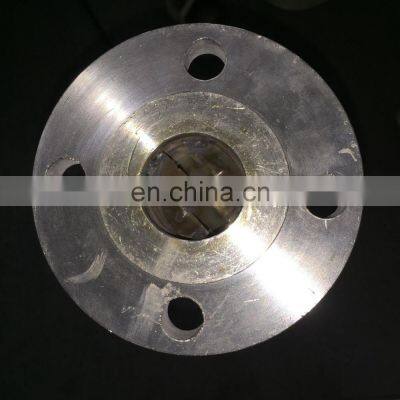

Static Mixer Tube, Ss304 Static Mixer Pipe For Mixing Gas Liquid, Chemicals Etc

Good Efficiency SS304 Static Mixer for Tap water dosing is a kind of no efficient mixing equipment movement, by mixing unit is fixed on the inner part of the tube, so that two or more strands of fluid cutting, shear, rotation and re mixed fluid reached between good dispersion and fully mixed.

The mixing process of static mixing is conducted by a series of different sizes of mixing units which is installed in the hollow pipe. Since the function of the mixing units, the fluid sometimes turn left, sometimes turn right, changing the flow direction, not only pushing the central fluid towards the periphery, also pushing the surrounding fluid towards the center, resulting in a good radial mixing. this mixer doesn’t have moving parts, replying on the special structure of units and fluid movement, so that the immiscible fluid dispersed and mixed with each other.

SV - type static mixer

The SV unit is composed of a corrugated plate cylinder, assembly of certain specifications into technical characteristics: the highest degree of dispersion is 1-2mm, liquid phase and gas phase uniformity coefficient: s X = 1 ~ 5%. Suitable for mixing and emulsifying viscosity is less than or equal to 102 centipoise liquid-liquid, liquid gas, gas, reaction, absorption, extraction, heat transfer process.

DH is less than or equal to 3.5 for the viscosity of the cleaning medium is less than or equal to 102 centipoise

The application of DN is more than 5 media can be accompanied by a small amount of non bonded impurities

SK - type static mixer

Unit by spiral plate welding of single channel left and right torsion and technical performance of it: the highest degree of dispersion is less than or equal to 10um, liquid-liquid, liquid-solid uniformity coefficient s X = 5%. Suitable for chemical, petroleum, pharmaceutical, food, fine processing, plastics, environmental protection, synthetic fiber, minerals and other sectors of the mixing, reaction, extraction, absorption, injection molding, color transfer process. The small flow and high viscosity medium mixed with impurities or viscosity less than 106 centipoise become applicable.

SX static mixer

Many elements of type X unit consists of a cross bar according to a certain law characteristics: uneven mixing degree is less than or equal to 1 ~ 5% s X. Suitable viscosity is less than or equal to 104 centipoise in high viscosity liquid - liquid reaction, mixing, mixing, absorption reaction process or production of polymer fluid, the use effect is better when processing large amount.

SH - type static mixer

The utility model is characterized in that the utility model is composed of a double channel, a spiral sheet is arranged in the pore channel, and the direction of the double channels of the adjacent units is 90 degrees of dislocation. Technical characteristics: the highest degree of dispersion: 1-2mm, liquid-liquid phase uniformity: s X = 1 ~ 5%. Suitable for fine processing, plastics, synthetic fiber, mineral treatment department mixing, emulsifying, injection molding, color spinning, heat transfer process of low flow, high mixing requirements in high viscosity (less than 106 CPS) is particularly suitable for cleaning medium.

SL static mixer

The unit consists of a cross bar according to certain rules to form a single X element, technical characteristics for liquid-liquid, liquid-solid mixing uniformity coefficient s X = 5%. The utility model is suitable for mixing chemical, petroleum, oil and other industries viscosity less than 106 centipoise or with the polymer medium, at the same time, the operation of heat transfer and heat transfer of the mixed heat exchanger, heating or cooling units such as viscous products.
