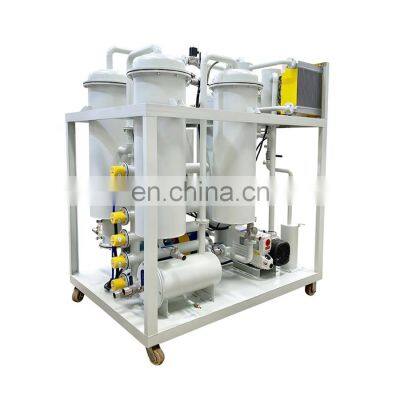

High Configuration ABB Motor Germany Vacuum Turbine Oil Purifier Machine

TY Series steam turbine lube oil purifier is mainly used to purify turbine oil from generator sets. It can rapidly remove the water content, gases and solid impurities in used oil, and improve the oil quality to ensure a normal work of the generator sets adjustment and lubrication system. It is quite suitable to purify turbine oil, hydraulic oil and the low viscosity oil that contains lots of water or tiny particles which need to be precisely processed.

1. Adopts coalescence and separation and Duplex-Stereo film evaporation technology. Unique and advanced dewatering, degassing components. Rapidly and effectively separate water, gases etc.
2. Optimized electric heating system with automatic constant temperature controller ensures the oil temperature to be even and stable.
3. Precise multi-stage filtration system removes different impurities with high quality filter element of stronger ability of containing pollutants and with long service life.
4. Advanced infrared oil level control system and pressure protection device make operation simple and safe.
5. Can purify any kinds of turbine oil used in steam turbine and water turbine online and onsite.
6. Air cooling system helps cool down air and gases from the vacuum vessel so as to extend the service life of vacuum pump, avoiding the inconvenience of water cooling.
7. Aluminum electric control cabinet has the merits of heat conducting and anti-explosion.
8. Adopts interlocked protective system.
9. High quality and low noise oil pump

TY-20 Model (1200L/h)

Packing: standard export wooden case per set.
Delivery method: TY Series machines are usually delivered by sea, but other method is available if necessary.

What is the mini order quantity?
MOQ: generally 1 unit/piece/set

What payment methods are supported?
Payment method: By T/T, L/C, Alibaba Trade Assurance etc.
Payment terms: Generally, T/T 40% advanced, the balance paid by T/T when the machine is ready; or 100% irrevocable L/C at sight.

What are the available delivery methods?
Our port location: Chongqing, Shanghai or other main port of China
Delivering to: Worldwide
Delivering method: by sea, by air, by truck, by express, combined transportation

How long is the product date of delivery probably?
Delivery date differs with product type, order quantity, special requirement etc. Usually our big machine delivery date is around 10 ~ 20 days; test equipment or analyzer delivery date is around 5~10 days. Some products have stock, contact us anytime to get more information.

How long is the warranty period?
We warrants the plant supplied under agreed specification against defects in material and workmanship under normal use and service for a period of 2 years after start up of the system.

How is the technical services on the product?
Engineer available to service machinery overseas. If you have any technical question, you are welcome to contact us any time. We will response promptly and answer to your satisfaction. If required and necessary, we can send our engineer to your place to provide technical support.
