Home > Products > Turbine Oil Purification Equipment > TYS-S-1 Stainless Steel Contaminated Virgin Coconut Oil Decoloration Equipment

TYS-S-1 Stainless Steel Contaminated Virgin Coconut Oil Decoloration Equipment

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

TYS Series Food Grade Oil Purification and Decoloration Machine

Parameters

Unit

TYS-1

TYS-2

TYS-3

TYS-5

TYS-10

TYS-15

TYS-20

Treatment Capacity

T/D

Power Supply

380V/50HZ/3Phase (Customizable)

Working Noise

dB(A)

≤65

Working Vacuum

MPa

-0.06～-0.095

Working Pressure

MPa

≤0.5

Working Temperature

℃

30～90

Inlet (outlet) caliber

Ф25

Ф32

Ф42

Ф50

Weight

1500

2000

2500

3000

3500

4000

4500

Size

Length

1800

1850

1900

1950

2000

2200

2300

Width

1300

1350

1400

1450

1500

1600

Height

2300

2400

2500

2700

After treated

Color

≤ 1-3

Impurity

μm

≤1(Customizable)

Water

ppm

≤100

Demulsification

min

≤15(GB/F 7305)

Cleanliness

grade

≤6(NAS1638)

TYS series oil decoloration machine can quickly remove water content, gases, particles,residues and harmful pigment etc in the oil, improve the quality and purity of the oil. This product is suitable to purify the lubricating oil, heavy diesel oil in power plants, ships, large machinery equipment and treat edible rapeseed oil, tea oil, peanut oil etc.

1. Powerful ability to remove impurities, can remove fine particles in the oil by the precise filter material in large area and deep level. 2. Pure physical treatment to dehydrate, degassing, removing impurities and decolorizing the oil, without affecting the components and performance of the oil. 3. Advanced condensation system, using large power and large volume industrial fan, Equipped with aluminum heat ex-changer with large heating exchange area, with good effect, fast condensation. 4.The machine is equipped with pressure protection, automatic temperature control heating, automatic level control, automatic separation of the condensed water drainage device, on-line operation, simple operation, safe and reliable. 5. Adopts high quality filter material, large amount of sewage, corrosion resistance, high temperature resistance, high mechanical strength, in addition to impurities, high precision, long service life. 6. Unique degassing and dewatering system: using three-dimensional evaporation technology, multi-level oil-water separation technology,can rapidly separate water, gas and impurities in the oil.

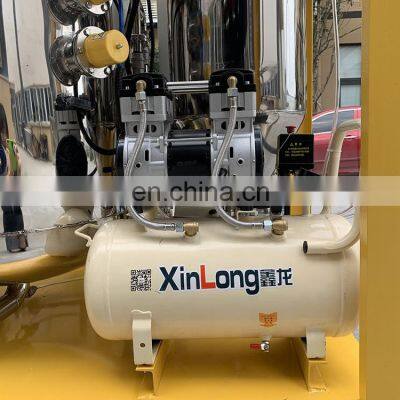

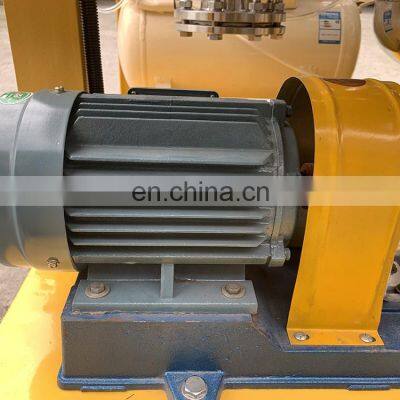

Details Image

Related Products

1.ZY series vacuum transformer oil purifier
2.ZYA series vacuum automatic transformer oil purifier
3.ZYB series vacuum transformer oil regeneration purifier
4.ZYD series double-stage vacuum transformer oil purifier
5.ZYD-I series ouble-stage transformer oil regeneration purifier
6.ZYD-M series trailer-mounted transformer oil purifier
7.TY series vacuum turbine oil purifier

8.TYA series vacuum lubricating oil purifier
9.TYB series coalescence-separation oil purifier
10.TYC series vacuum lubricating oil regeneration purifier
11.CYA series centrifugal oil purifier
12.TPR series waste engine oil recycling system
13.PL series plate and frame oil filter press
14.JL series portable oil purifier
15.BZ series transformer oil regeneration device

Packing & Delivery

MOQ	1 Set
Trade Terms	EXW, FOB, CIF, CFR
Payment Terms	T/T, L/C
Port of Loading	Any Port of China
Packing Method	Internaional Standard Wooden Case
Transportation Method	By Sea, By Land, By Air, By Express
Supply Capability	100 Sets/Month

* The warranty period is 24 months from commissioning acceptance date on. After the warranty period is over we provide lifelong maintenance and technical service.
* We guarantee the maintenance time no more than 3 working days and response time within 1 hour.
* We build instrument service profile for our clients to record the product service and maintenance conditions.
* After instruments start service, we will pay follow-ups to collect the service conditions.

Chongqing TOP Oil Purifier Co., Ltd

Located at Chongqing city--a southwest electromechanical manufacturing center as well as national municipality, Chongqing TOP is a professional leading manufacturer and supplier of oil purifiers and various related testers. Our company consists of departments respectively for technological development, machinery manufacture, instrument manufacture and quality control etc.
