Low Cost Turbine Oil Lubricating Oil Purification System

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Low Cost Turbine Oil Lubricating Oil Purification System

Item			Unit	TY-10	TY-20	TY-30	TY-50	TY-100	TY-150	TY-200
Flow rate			L/min	10	20	30	50	100	150	200
Vacuum degree			MPa	-0.06～–0.095
Working pressure			MPa	≤ 0.4
Temperature degree				20 ~80
Power supply				380V/50HZ/3Ph 5 wire(as customer’s requirement)
Working noise			dB(A)	≤65~80
Working time			H	≥ 4000
Continuous working time			H	150
Electric heating degree			kW	12	15	18	24	45	60	72
Total electric power			kW	14	17	20	27	48	66	81
Outlet(inlet)caliber			mm	Φ25	Φ25	Φ25	Φ32	Φ42	Φ50	Φ50
Weight			kg	400	450	500	600	800	1000	1100
Size	L	mm	1500	1550	1600	1650	1700	1750	1900
		W	mm	800	850	900	950	1000	1200	1300
		H	mm	1600	1650	1700	1750	1800	1800	2000
Index after filtering	Moisture content	PPM	≤50
		Gas content	%	0.1
		Demulsification value	min	≤15
		Degree of cleanliness	NAS 1638	4
		Impurity size	μm	≤1(Customerizable)

This machine applies to on-line processing of the turbine oil of the steam engine, gas turbine and water turbine in the field of electricity, chemicals, paper making, metallurgical industries. It can not only ensure the regular work of adjusting system and lubricating system, but also purify low viscosity oil and coolant oil.

1.Integrates advantages of gravity method, gasification method, coalescence separation method, vacuum separation, mechanical filtration into one. With the technology of vacuum drying and demulsification, it can separate a large mount of water from the oil, even the micro quantity of moisture. It is good at dewatering and demulsifying, which can make the turbid emulsified oil become clear.

2.Equipped with vacuum analytical evaporation system which can remove the micro quantity of water from the oil and ensure the water content index in the oil. It won’t change the physical and chemical property of the oil, and it can extend the oil service life.

3.Low working noise meets the environmental protection requirement.

4.Precise multi-stage filters can effectively remove all kinds of mechanical impurities, preciser one by one, big impurity holding capacity and long service life.

5.Advanced infrared liquid level auto control system, automatic sound and light alarm system, and pressure protection device to ensure the safe and stable operation of machine.

6.Can online process turbine oil and low viscosity lubricants with unattended operation.

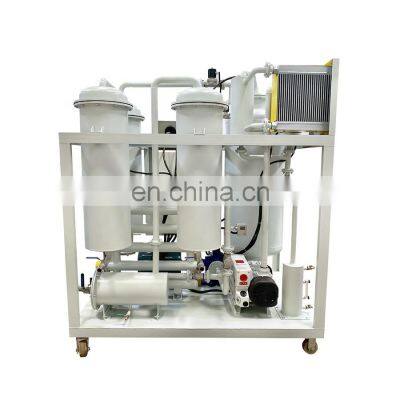

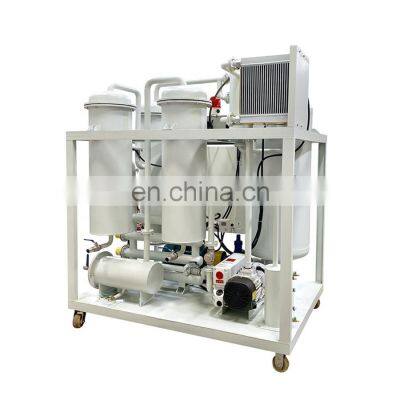

Details Image

Related Products

1.ZY series vacuum transformer oil purifier
2.ZYA series vacuum automatic transformer oil purifier
3.ZYB series vacuum transformer oil regeneration purifier
4.ZYD series double-stage vacuum transformer oil purifier
5.ZYD-I series ouble-stage transformer oil regeneration purifier
6.ZYD-M series trailer-mounted transformer oil purifier
7.TY series vacuum turbine oil purifier

8.TYA series vacuum lubricating oil purifier
9.TYB series coalescence-separation oil purifier
10.TYC series vacuum lubricating oil regeneration purifier
11.CYA series centrifugal oil purifier
12.TPR series waste engine oil recycling system
13.PL series plate and frame oil filter press
14.JL series portable oil purifier
15.BZ series transformer oil regeneration device

Packing & Delivery

MOQ	1 Set
Trade Terms	EXW, FOB, CIF, CFR
Payment Terms	T/T, L/C
Port of Loading	Any Port of China
Packing Method	Internaional Standard Wooden Case
Transportation Method	By Sea, By Land, By Air, By Express
Supply Capability	100 Sets/Month

* The warranty period is 24 months from commissioning acceptance date on. After the warranty period is over we provide lifelong maintenance and technical service.
* We guarantee the maintenance time no more than 3 working days and response time within 1 hour.
* We build instrument service profile for our clients to record the product service and maintenance conditions.
* After instruments start service, we will pay follow-ups to collect the service conditions.

Chongqing TOP Oil Purifier Co., Ltd

Located at Chongqing city--a southwest electromechanical manufacturing center as well as national municipality, Chongqing TOP is a professional leading manufacturer and supplier of oil purifiers and various related testers. Our company consists of departments respectively for technological development, machinery manufacture, instrument manufacture and quality control etc.
