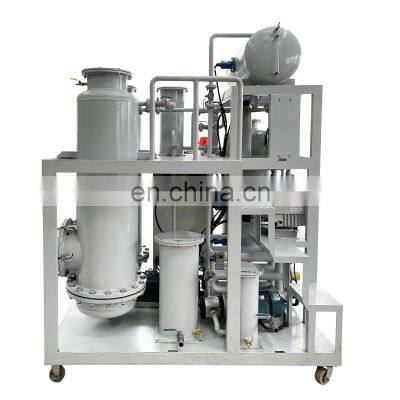

TYR-5 Double Vacuum Systems for Used Diesel Oil Decoloration and Filtration Equipment
- T/T Credit Card
You May Like
-
TY50 Turbine Oil Purifier Machine Lubricating Oil Purification Plant
-
Customized Turbine Oil Cleaning System 6000LPH Lube Oil Purifier
-
Used Oil Filtering System TY-50 Turbine Oil Recycling Machine
-
TY-150 Turbine Oil Treatment Machine 3000LPH Used Oil Filtration Plant
-
TYS-S-1 Multi Functional Stainless Steel Contaminated Edible Coconut Oil Filtration Decoloration Machine
-
High Configuration ABB Motor Germany Vacuum Turbine Oil Purifier Machine
Product Description
Oil Purification and Decoloration Machine (TYR Series)
Parameters | Unit | TYR-1 | TYR-2 | TYR-3 | TYR-5 | TYR-10 | TYR-15 | TYR-20 | ||||||||
Treatment Capacity | Ton/day(8 hr) | 1 | 2 | 3 | 5 | 10 | 15 | 20 | ||||||||
Power Supply | 380V/50HZ/3Phase（Customizable） | |||||||||||||||
Working Noise | dB(A) | ≤65 | ||||||||||||||
Trouble-free Working Time | H | ≥ 4000 | ||||||||||||||
Continuous Working Time | H | ≥150 | ||||||||||||||
Inlet (outlet) caliber | mm | Ф25 | Ф25 | Ф25 | Ф32 | Ф42 | Ф42 | Ф50 | ||||||||
Weight | kg | 1500 | 2000 | 2500 | 3000 | 3500 | 4000 | 4500 | ||||||||
Size | Length | mm | 1800 | 1850 | 1900 | 1950 | 2000 | 2200 | 2300 | |||||||
Width | mm | 1300 | 1350 | 1400 | 1450 | 1500 | 1600 | 1600 | ||||||||
Height | mm | 2300 | 2300 | 2300 | 2400 | 2500 | 2700 | 2700 | ||||||||
Guaranteed value | Color | L | ≤ 1-3 | |||||||||||||
Impurity | μm | ≤1(Customizable) | ||||||||||||||
Water | ppm | ≤100 | ||||||||||||||
Gas content | ≤0.1% | ≤15(GB/F 7305) | ||||||||||||||
Cleanliness | grade | ≤6(NAS1638) | ||||||||||||||
TYR series oil decoloration machine can quickly remove impurities, water, gases and recover the oil color to original color. This machine uses our special additive to discolor, which is purely natural and has high efficiency. It can treat hydraulic oil, machinery oil, coolant oil, cooking oil, coconut oil in oil field, mine, metallurgy, electricity, transportation, manufacturing, food industry and so on. The treated oil is very clear and transparent. It can also be equipped with waste oil distillation plant to highly improve the dark color of base oil/diesel after distillation process. Besides, it is frequently inquired by customer to pre-treat the used cooking oil before further biodiesel.
1.ZY series vacuum transformer oil purifier
2.ZYA series vacuum automatic transformer oil purifier
3.ZYB series vacuum transformer oil regeneration purifier
4.ZYD series double-stage vacuum transformer oil purifier
5.ZYD-I series ouble-stage transformer oil regeneration purifier
6.ZYD-M series trailer-mounted transformer oil purifier
7.TY series vacuum turbine oil purifier
8.TYA series vacuum lubricating oil purifier
9.TYB series coalescence-separation oil purifier
10.TYC series vacuum lubricating oil regeneration purifier
11.CYA series centrifugal oil purifier
12.TPR series waste engine oil recycling system
13.PL series plate and frame oil filter press
14.JL series portable oil purifier
15.BZ series transformer oil regeneration device
MOQ | 1 Set |
Trade Terms | EXW, FOB, CIF, CFR |
Payment Terms | T/T, L/C |
Port of Loading | Any Port of China |
Packing Method | Internaional Standard Wooden Case |
Transportation Method | By Sea, By Land, By Air, By Express |
Supply Capability | 100 Sets/Month |
* The warranty period is 24 months from commissioning acceptance date on. After the warranty period is over we provide lifelong maintenance and technical service.
* We guarantee the maintenance time no more than 3 working days and response time within 1 hour.
* We build instrument service profile for our clients to record the product service and maintenance conditions.
* After instruments start service, we will pay follow-ups to collect the service conditions.
Chongqing TOP Oil Purifier Co., Ltd
Located at Chongqing city--a southwest electromechanical manufacturing center as well as national municipality, Chongqing TOP is a professional leading manufacturer and supplier of oil purifiers and various related testers. Our company consists of departments respectively for technological development, machinery manufacture, instrument manufacture and quality control etc.
