ASTM D1500 Hydraulic Oil Colorimeter/ Petroleum Products Color Chroma Tester TP-225
- T/T Credit Card
You May Like
-
Factory Direct Engine Oil Density Meter Petroleum Densimeter
-
Lab Oil Testing Equipment Lubricating Grease Cone Penetrometer
-
Mini Transformer Oil Inline Moisture Meter
-
Fully Automatic Olive Oil Acid Value Tester
-
Electrometric Method ASTM D3230 Salt in Crude Oil Analyzer
-
Transformer Oil Breakdown Voltage BDV Tester Dielectric Strength Test Machine Of Insulating Oil 100Kv
Product Description
Fully Automatic Karl Fischer Water Content Tester TP-2100

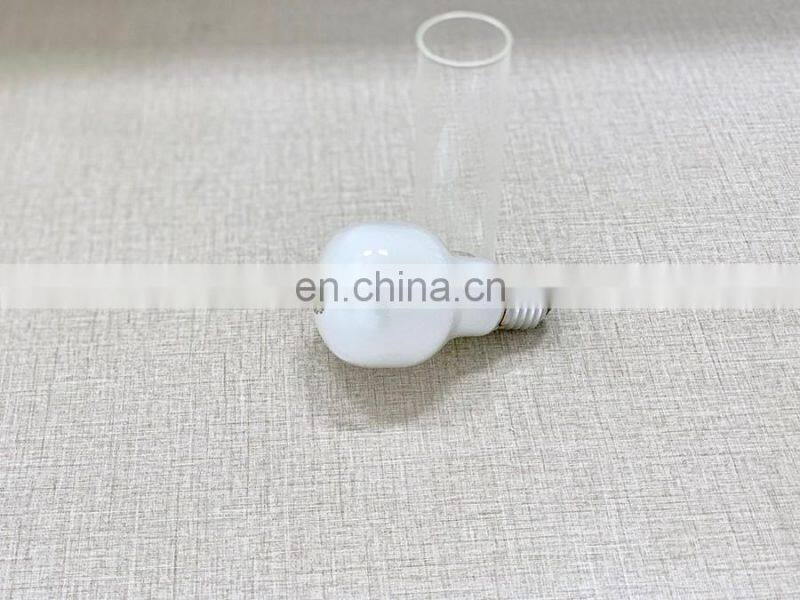

2. Taking the inside frosted light bulbs as standard light source, whose power is 220V / 100W. The color temperature is 2750 ± 50K. After source light color filter through the milky glass and sunlight filter glass, the spectral characteristics of the resulting standard light similar to North Light.
3. The light of petroleum products Chroma tester is through the filter, and then forms two parallel beams whose size and shape are exactly the same, uniformly irradiating on the sample color glass in standard color wheel and sample colorimetric tube, and through the prism and lens reflex, then enter into the eyepiece.
4. There are 26 pieces of Φ14 light holes, among which 25 are 1-25 sequence containing color number standard color glass sheet. The twenty-sixth is blank. The color wheel is on the right side hole, so that the operator selects the correct standard corresponding color when toggle the standard color wheel, and compares the standard color in standard color wheel and color of samples in color tube.

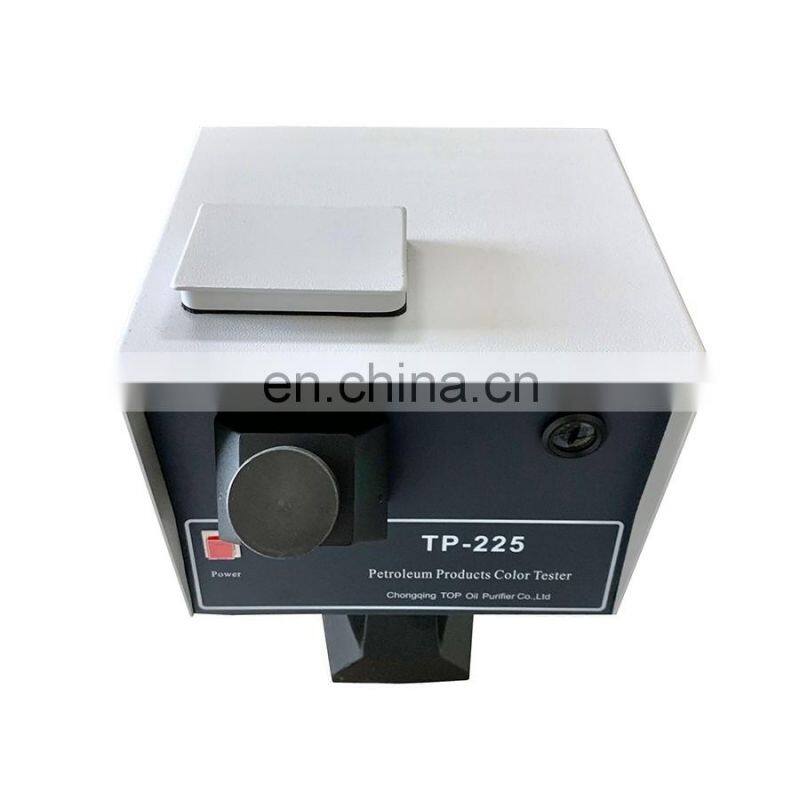

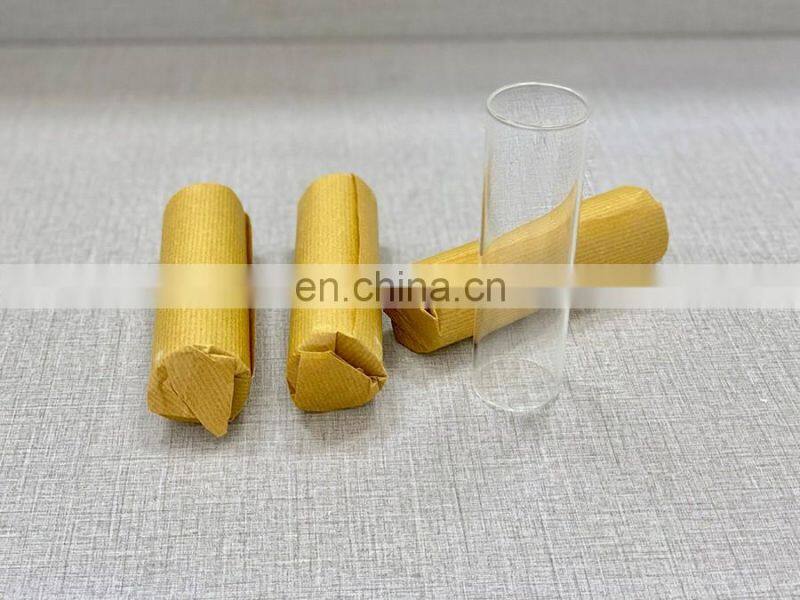

5. Colorimetric tube is a flat glass tube, whose inner diameter is Φ32 mm, height of 120mm to 130 mm of colorless. Colorimetric tube is put into the cavity from a small cover on top of the instrument.

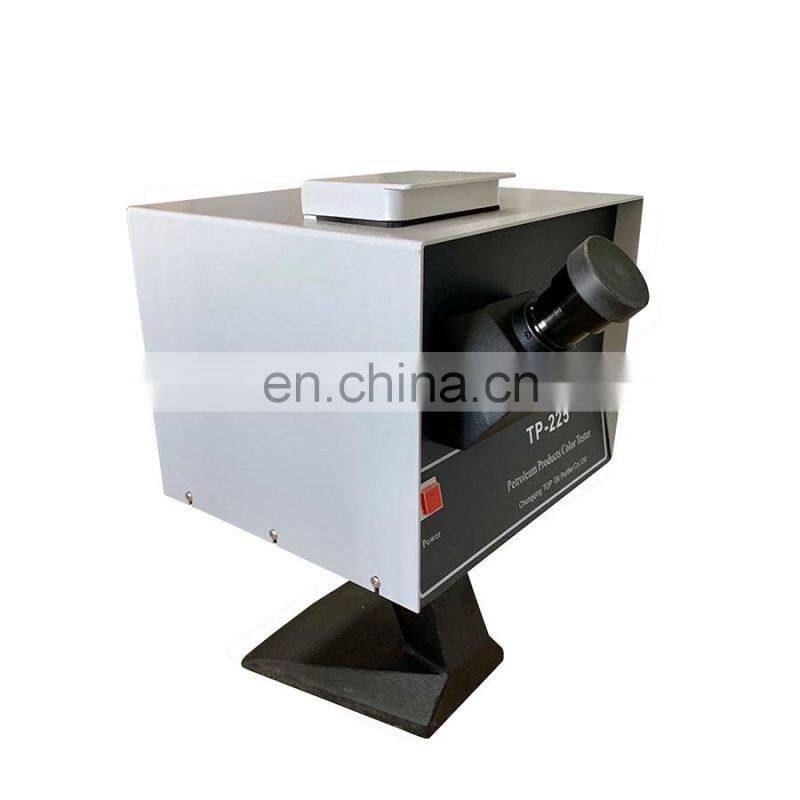

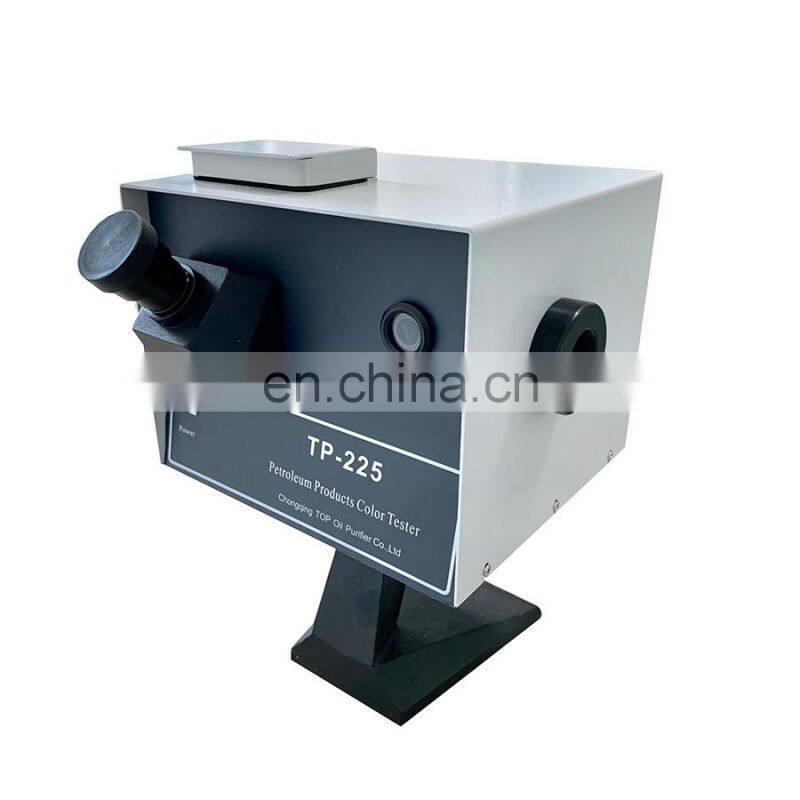

6. Observed eyepiece consists of optical lenses. You can observe standard color glass samples in the eyepiece. Both two colors occupy semicircular area, whose left is for the sample color, and the right is to a standard color on the color wheel. Optical eyepieces have focusing and light adjustment capability, and it is also easy to use.
Petroleum products chroma tester is designed and manufactured under the requirements of standard SH/T0168 in"Determination of chroma in petroleum products". It is applicable to the determination of the color in various lubricants, kerosene, diesel and other petroleum products. The tester indicial colors and the GB/T6540 provisions colors represent a correspondence.
1. Water Content Tester TP-2100
2. Digital Karl Fischer Water Content Tester TP-6A
3. Kinematic Viscosity Tester VST-2000
4. Kinematic Viscosity Tester TPV-8
5. Kinematic Viscosity Tester VST-3000
6. Fully Automatic Oil Acidity Tester (6 cups) ACD-3000I
7. Automatic Surface/Interface Tension Tester IT-800
8. Automatic Open Cup Flash Point Tester TPO-3000
9.Closed Cup Flash Point Tester TPC-3000
10.Digital Open Cup Flash Point Tester TPO-100
11.Digital Closed Cup Flash Point Tester TPC-100
12.Cloud Point & Pour Point Tester PT-2000
13.Multi-functional Vibration Tester VBT-2000
14.Automatic Potentiometric Titrator TP668
15.Petroleum Products Density Tester DST-3000
16.Karl Fischer Volumetric Water Content Titrator TPD
17.Distillation Range Tester DIL-201
18.Online Oil Quality Tester PTT-002
19.Copper Corrosion Tester TP-113
20.Dew Point Tester DPME-P
* The warranty period is 24 months from commissioning acceptance date on. After the warranty period is over we provide lifelong maintenance and technical service.
* We guarantee the maintenance time no more than 3 working days and response time within 1 hour.
* We build instrument service profile for our clients to record the product service and maintenance conditions.
* After instruments start service, we will pay follow-ups to collect the service conditions.
Chongqing TOP Oil Purifier Co., Ltd
Located at Chongqing city--a southwest electromechanical manufacturing center as well as national municipality, Chongqing TOP is a professional leading manufacturer and supplier of oil purifiers and various related testers. Our company consists of departments respectively for technological development, machinery manufacture, instrument manufacture and quality control etc.
