TP-225 ASTM D1500 Laboratory Transformer Oil Chromatography
- 1000 per Month
- T/T Credit Card
You May Like
-
Laboratory Equipment Petroleum Products Lubricant Oil Color Comparator Chroma Tester TP-225
-
Portable Laboratory Carbon Residue Apparatus /Automatic Oil Micro Carbon Residue Tester
-
Asphalt Saybolt Viscometer / Bitumen Saybolt Viscosity Tester / Saybolt Viscosity Apparatus
-
coulometric karl fischer moisture tester water content analysis in the electricity, petroleum, chemical
-
Mini Type Portable Gasoline Oil Octane Analyzer Diesel Cetane Tester
-
ASTM D130 LPG Copper Strip Analyzer / Copper Corrosion Test Bomb Bath
Product Description

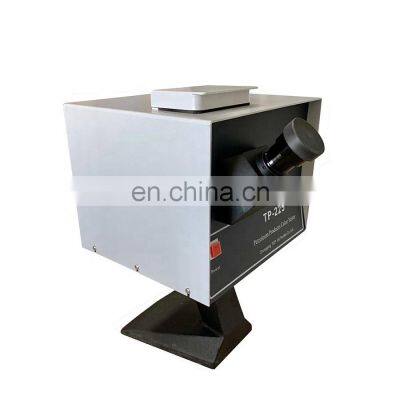

Petroleum products chroma tester is designed and manufactured under the requirements of standard SH/T0168 in"Determination of chroma in petroleum products". It is applicable to the determination of the color in various lubricants, kerosene, diesel and other petroleum products. The tester indicial colors and the GB/T6540 provisions colors represent a correspondence.
Details:
1.Petroleum products Chroma tester consists of standard color wheel, an observation optical lens, light and colorimetric tube.
2. Taking the inside frosted light bulbs as standard light source, whose power is 220V / 100W. The color temperature is 2750 ± 50K. After source light color filter through the milky glass and sunlight filter glass, the spectral characteristics of the resulting standard light similar to North Light.
3. The light of petroleum products Chroma tester is through the filter, and then forms two parallel beams whose size and shape are exactly the same, uniformly irradiating on the sample color glass in standard color wheel and sample colorimetric tube, and through the prism and lens reflex, then enter into the eyepiece.
4. There are 26 pieces of Φ14 light holes, among which 25 are 1-25 sequence containing color number standard color glass sheet. The twenty-sixth is blank. The color wheel is on the right side hole, so that the operator selects the correct standard corresponding color when toggle the standard color wheel, and compares the standard color in standard color wheel and color of samples in color tube.
5. Colorimetric tube is a flat glass tube, whose inner diameter is Φ32 mm, height of 120mm to 130 mm of colorless. Colorimetric tube is put into the cavity from a small cover on top of the instrument.
6. Observed eyepiece consists of optical lenses. You can observe standard color glass samples in the eyepiece. Both two colors occupy semicircular area, whose left is for the sample color, and the right is to a standard color on the color wheel. Optical eyepieces have focusing and light adjustment capability, and it is also easy to use.
Chongqing TOP Oil Purifier Co., Ltd
Located at Chongqing city--a southwest electromechanical manufacturing center as well as national municipality, Chongqing TOP is a professional leading manufacturer and supplier of oil purifiers and various related testers. Our company consists of departments respectively for technological development, machinery manufacture, instrument manufacture and quality control etc. On basis of mature development and manufacture technology and highly qualified production management team, the products have high quality, easy operation, excellent performance and long service life.
TOP Oil Purifiers are widespread in the fields of electric power, petrifaction, mineral, shipbuilding, steel construction, bridge, automobile and railway, playing a great role in reducing energy consumption for clients as well as environmental pollution. We provides you with reliable oil purifiers such as transformer oil purifier, turbine oil purification machine, hydraulic oil purifier, lubricating oil filtration machine, fuel oil restoration, oil and water separator, oil regeneration equipment, waste oil recycling equipment etc.
TOP Testers works on the development, production, market, technical and after-sale service for petrochemical analyzers, transformer substation electrical testing equipment and circuit detecting equipment. Main products are water content testers, surface/interfacial tension testers, flash point testers, kinematic viscosity testers, oil acidity testers, insulation oil dielectric strength testers, transformer characteristics testers, relay protection testers, high voltage testing equipment etc.
Pre-Sales Service
①Will give response within 24 hours for all inquiries and questions about our products.
②Recommend the most suitable machine according customer's demands.
③Professional pre-sale model/configuration selection advise and technical support -- offered by experienced technician.
④ Free on-site installation, debugging and technical training -- offered by strictly trained technology application engineers.
⑤Offer OEM service.
After-Sales Service
① The warranty period is 24 months from commissioning acceptance date on. After the warranty period is over we provide lifelong maintenance and technical service.
②We guarantee the maintenance time no more than 3 working days and response time within 1 hour.
③We build instrument service profile for our clients to record the product service and maintenance conditions.
④ After instruments start service, we will pay follow-ups to collect the service conditions.
①Standard export wooden case with high quality cushioning material ensure the item arrive customer in good condition.
②Carefully check every packing detail before delivery to avoid any troubles during the transportation.
③Appointed logistics company could be used according to customers demands.
④ Do our best to make sure customer can get their goods in time.
