ASTM D664 Method Laboratory Equipment TBN Tester /High Accuracy Engine Oil TAN TBN Titrator

ASTM D664 Method Laboratory Equipment TBN Tester /High Accuracy Engine Oil TAN TBN Titrator

(Model:TP-6696)

Application

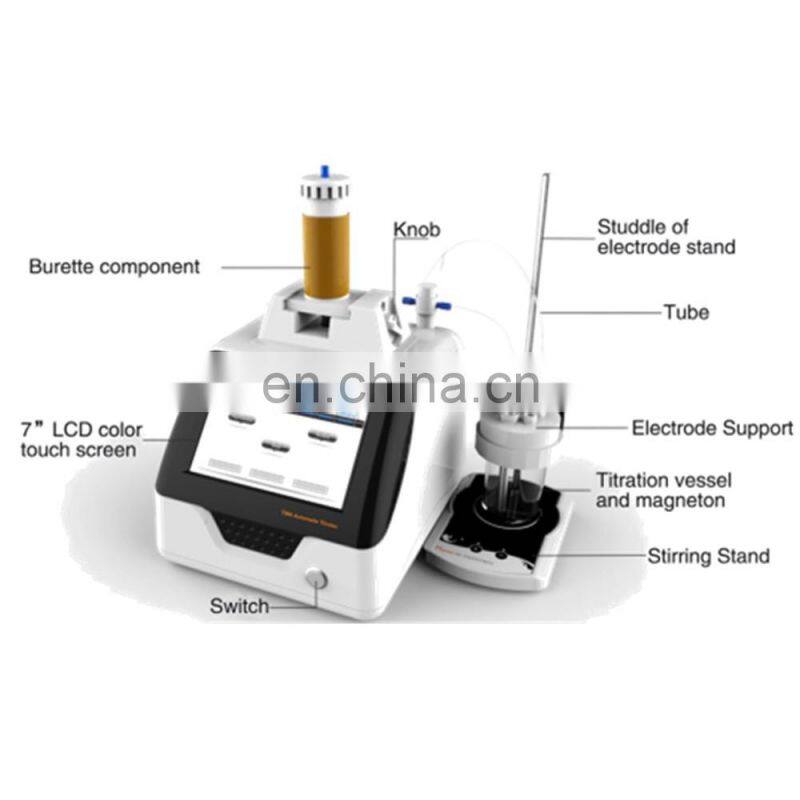

TP6696 automatic titrator is a lab titration device with high analysis accuracy under the principle of potentiometric titration. It has modular design and consists of three parts: volume titration device, control device and measuring device. The titration methods include macro titration, micro titration, volume setting titration, EP, etc. It conforms to ASTM D664 Test Method for Acid Number of Petroleum Products by Potentiometric Titration and ASTM D2896 Test Method for Base Number of Petroleum Products by Potentiometric Perchloric Acid.

Features

·Zero-dead volume solenoid valve, changing easily for PTFE burette. Ultrathin stirring device, adopt coil realize magnetic Stir.
·Accuracy closed-loop control for volume.
·High-accuracy burette accurate to 0.005mm.
·Simple design, discrete stirring unit, detachable easily.
·Wide operating voltage range 110~240V, apply to global client.
·LCD touch screen.

Technical parameters

Resolution 0.01pH; 0.1mV; 0.1℃
pH measuring range 0.00pH-14.00pH
mV measuring range 0-±2000mV
Temperature measuring range 0.0℃-100℃
Repeatability 0.20%
Sensitivity of controlling titration ≤2mV
Power supply110-240V 50-60Hz
Burettvolume tolerance Burette 15mL ±0.025mL
Burette 25mL ±0.035mL

Chongqing TOP Oil Purifier Co., Ltd

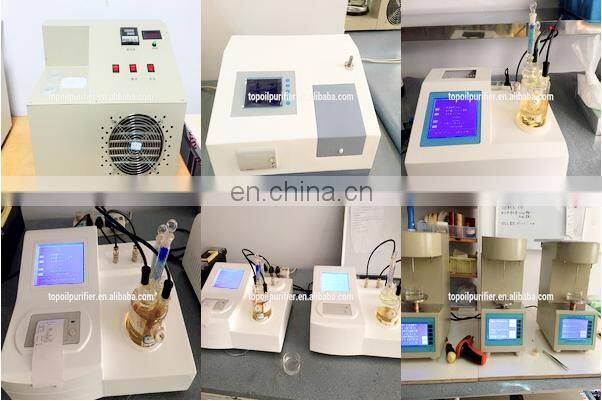

Located at Chongqing city--a southwest electromechanical manufacturing center as well as national municipality, Chongqing TOP is a professional leading manufacturer and supplier of oil purifiers and various related testers. Our company consists of departments respectively for technological development, machinery manufacture, instrument manufacture and quality control etc. On basis of mature development and manufacture technology and highly qualified production management team, the products have high quality, easy operation, excellent performance and long service life.
