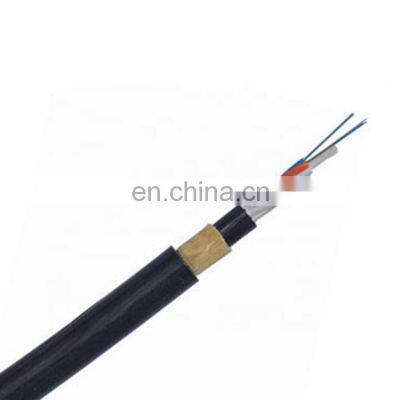

All Dielectric Self-supporting ADSS Cable 32 Core Single Mode Fiber Optic Cable
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
12/24/36/48 Core All-Dielectric Self-Supporting Aerial ADSS Fiber Optic Cable high quality
-
Outdoor FTTH Flat Drop Cable Single Mode Lszh Fiber Optical Drop Cable 1 core
-
Steel Wire Strength Member Outdoor LSZH Jacket SM 2 Core Fiber Optic Cable FTTH Drop Cable
-
G652d G657A1 Single Mode Outdoor 1 Core FTTH Fiber Drop Cable
-
Manufacturer Price Per Meter Steel Wire Strength Member LSZH G652A 1 Core FTTH Fiber Drop Cable
-
1 2 4 6 Core LSZH FTTH Flat Bow-type Outdoor GJYXCH G652D G657A Fiber Optic Cable Drop
Product Description
Product Description
G.652 | G.655 | 50/125μm | 62.5/125μm | |||
attenuation (+20°C) | @850nm | ≤3.0 dB/km | ≤3.0 dB/km | |||
@1300nm | ≤1.0 dB/km | ≤1.0 dB/km | ||||
@1310nm | ≤0.36 dB/km | ≤0.40 dB/km | ||||
@1550nm | ≤0.22 dB/km | ≤0.23dB/km | ||||
Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | |||
@1300nm | ≥1000 MHz·km | ≥600 MHz·km | ||||
Numerical aperture | 0.200±0.015NA | 0.275±0.015NA | ||||
Cable cut-off wavelength | ≤1260nm | ≤1480nm | ||||
Product description:
The ADSS cable is loosely wound and the 250μm fiber is placed in a loose tube made of high modulus material. The loose tube is
filled with waterproof compound. The loose tube (and the filling rope) is twisted around a non-metallic center reinforcing core
(FRP) into a compact core with a gap between the core and a water-blocking paste. The outer core of the cable is extruded into a
polyethylene (PE) inner sheath, and then the reinforced aramid is twisted, and finally a polyethylene (PE) outer sheath or an
electrical tracking (AT) outer sheath is extruded.
Features:
· Can be erected continuously.
· With AT sheath, it has excellent resistance to electric tracking.
· Light weight and small cable diameter reduce the impact of ice, wind and load on towers and supports.
· Large span with a maximum span of more than 1000m.
· Excellent tensile and temperature properties.
· Life expectancy can be up to 30 years.
The ADSS cable is loosely wound and the 250μm fiber is placed in a loose tube made of high modulus material. The loose tube is
filled with waterproof compound. The loose tube (and the filling rope) is twisted around a non-metallic center reinforcing core
(FRP) into a compact core with a gap between the core and a water-blocking paste. The outer core of the cable is extruded into a
polyethylene (PE) inner sheath, and then the reinforced aramid is twisted, and finally a polyethylene (PE) outer sheath or an
electrical tracking (AT) outer sheath is extruded.
Features:
· Can be erected continuously.
· With AT sheath, it has excellent resistance to electric tracking.
· Light weight and small cable diameter reduce the impact of ice, wind and load on towers and supports.
· Large span with a maximum span of more than 1000m.
· Excellent tensile and temperature properties.
· Life expectancy can be up to 30 years.
